Removing and Installing Parts 137
4
Rotate and pull the bezel away from the front of the computer to release
bezel clamps from bezel insert.
5
Set aside the bezel in a secure location.
Replacing the Bezel
1
Align and insert the bezel clamps in the bezel insert.
2
Rotate the bezel toward the computer until it snaps into place on the
front panel.

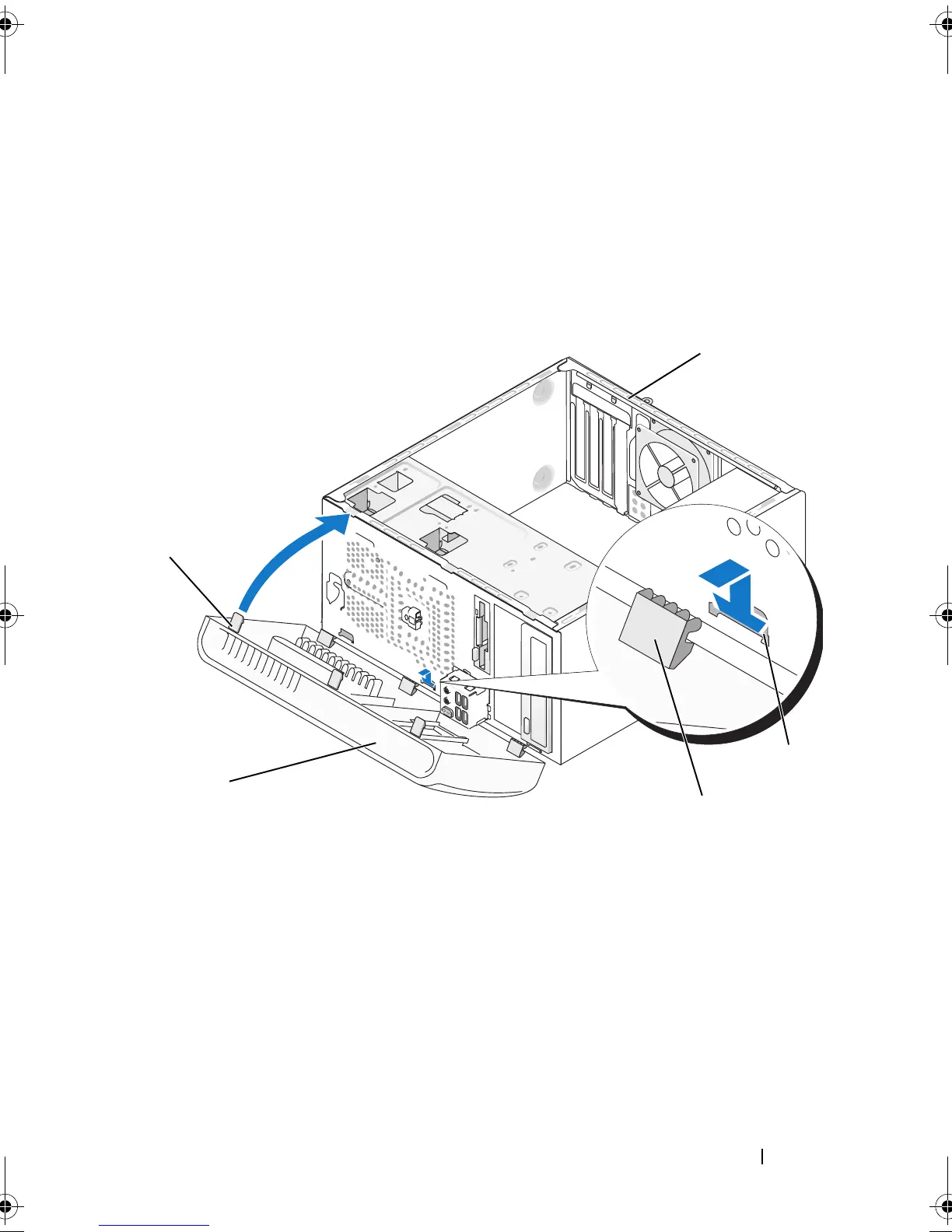

1 bezel grip (3) 2 bezel 3 bezel clamp(3)
4 clamp insert(3) 5 back side of computer
3
2
1
5
4
