Pin Assignments for I/O Connectors: Dell Inspiron 8200
1 STRB# 11 BUSY
2 PD0 12 PE
3 PD1 13 SLCT
4 PD2 14 AFDF#
5 PD3 15 ERROR#
6 PD4 16 INIT#
7 PD5F 17 SLCT_IN
8 PD6F 18-23 GND
9 PD7F 24 DFDD/LPT#
10 ACK# 25 GND

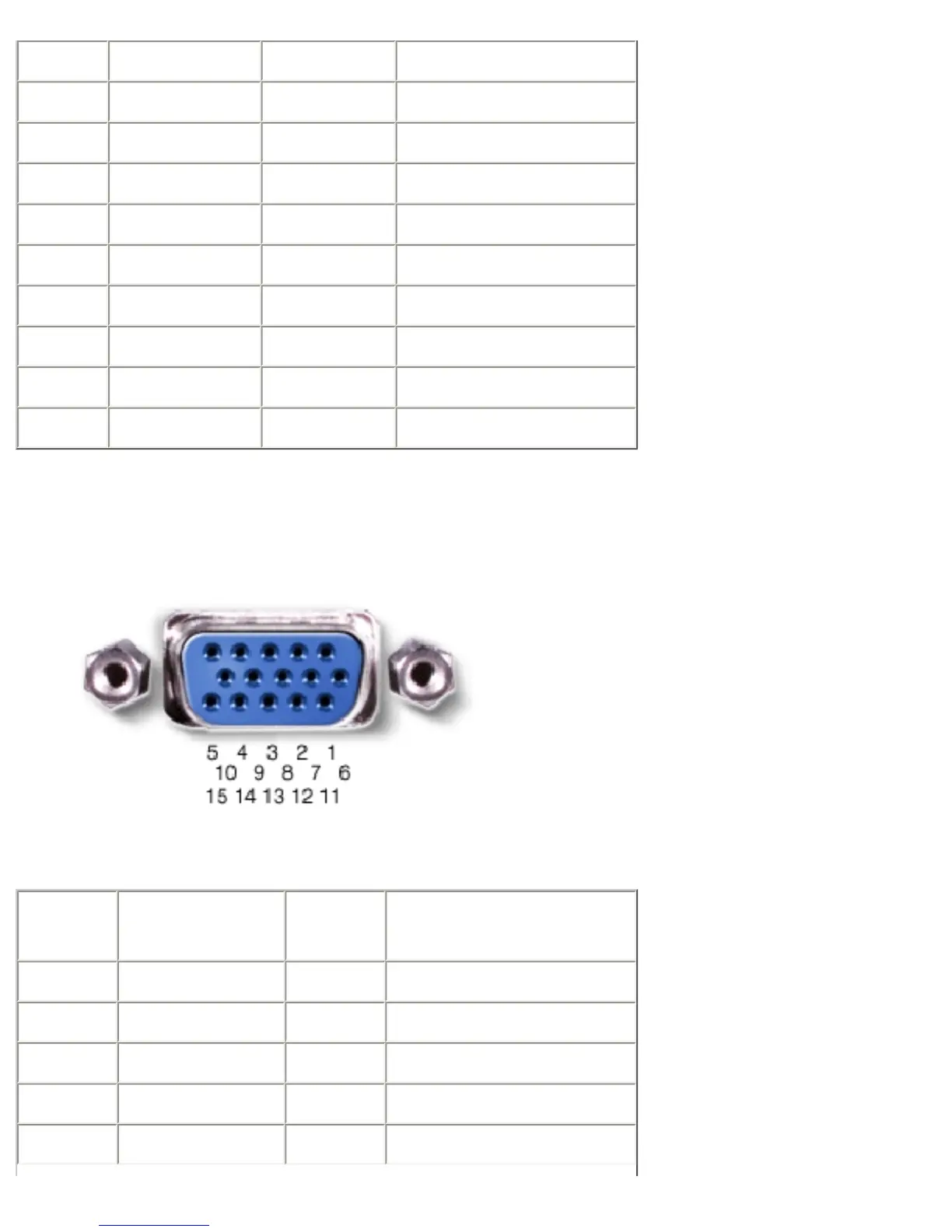

Video Connector
Pin Signal Pin Signal
1 RED 9 CRT_VCC
2 GREEN 10 GND
3 BLUE 11 MSEN#
4 NC 12 DAT_DDC2
5 GND 13 HSYNC
