Installing the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

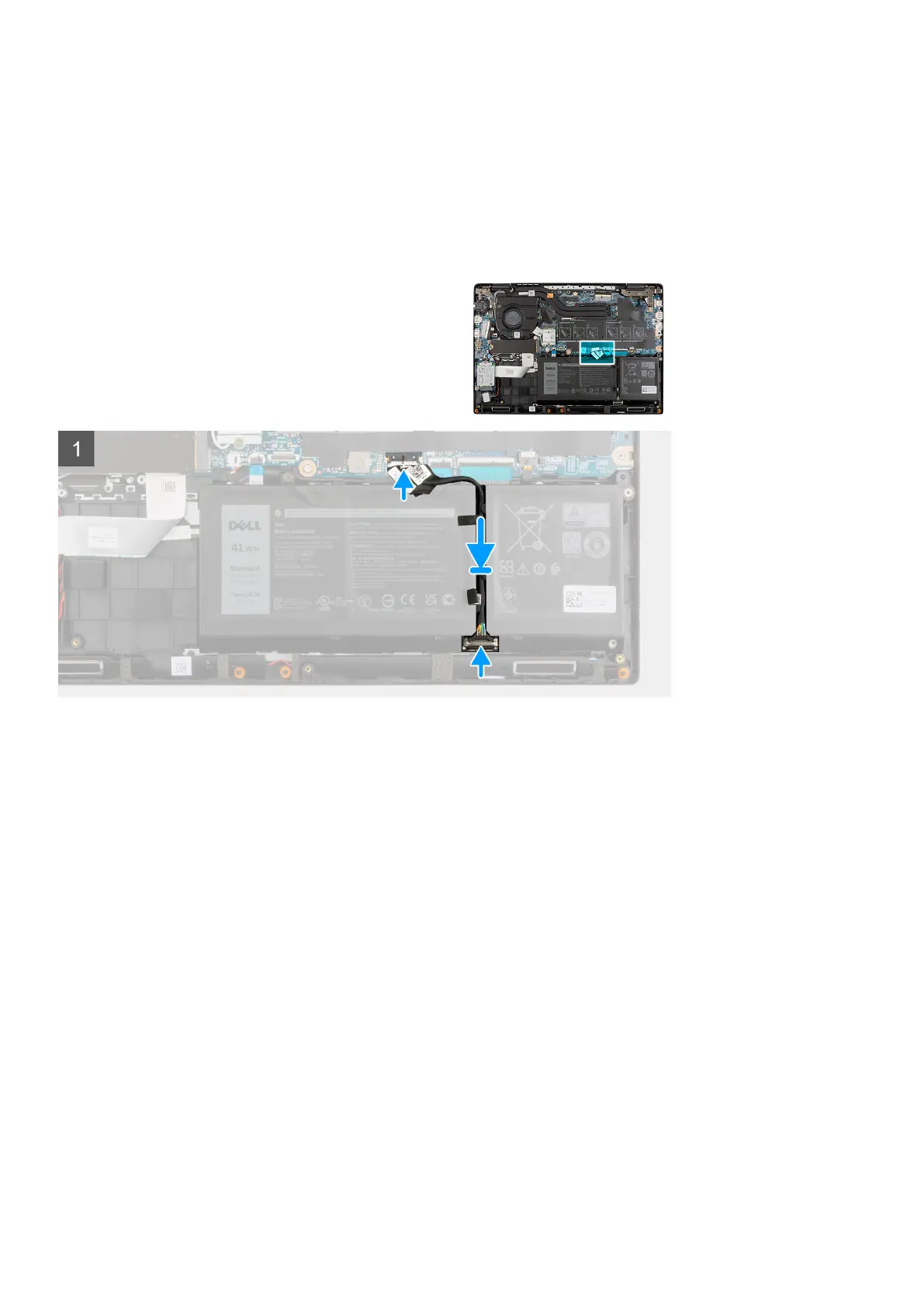

The following image indicates the location of the battery cable and provides a visual representation of the installation procedure.
Steps
1. Connect the battery cable to the connector on the battery.
2. Slide the metal above the connector on the battery to lock.
3. Route the battery cable through the routing channel in the battery and adhere the adhesive tapes.
4. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the SIM card tray for 4G LTE enabled systems.
3. Install the microSD-card.
4. Follow the procedure in after working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
