4. Install the microSD-card.
5. Follow the procedure in after working inside your computer.
System fan
Removing the system fan
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for systems enabled with 4G LTE.
4. Enter the service mode.
5. Remove the base cover.
About this task

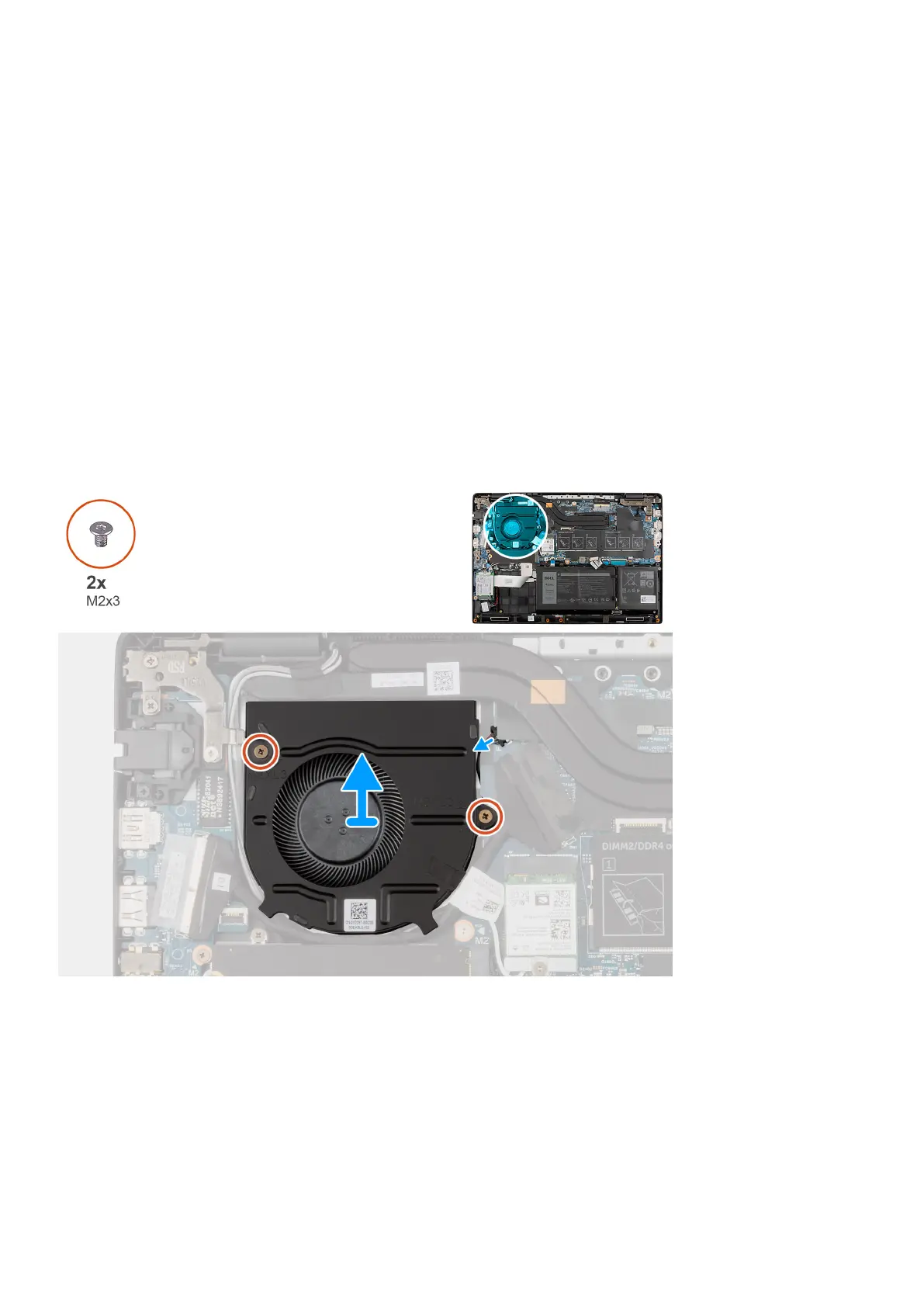

The following image indicates the location of the system fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the system fan cable from the connector on the system board.
2. Remove the two (M2x3) screws that secure the system fan to the palmrest assembly.
3. Lift and remove the system fan from the palmrest assembly.
Removing and installing components
41
