Steps
1. Align and place the solid-state drive conversion plate on the system board.
2. Install the two (M2x3) screws to secure the solid-state drive conversion plate to the system board.
Next steps
1. Install the M.2 SSD.
2. Install the base cover.
3. Exit the service mode
4. Install the SIM card tray for 4G LTE enabled systems.
5. Install the microSD-card.
6. Follow the procedure in after working inside your computer.
Hard-disk drive assembly
Removing the hard-disk drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
About this task

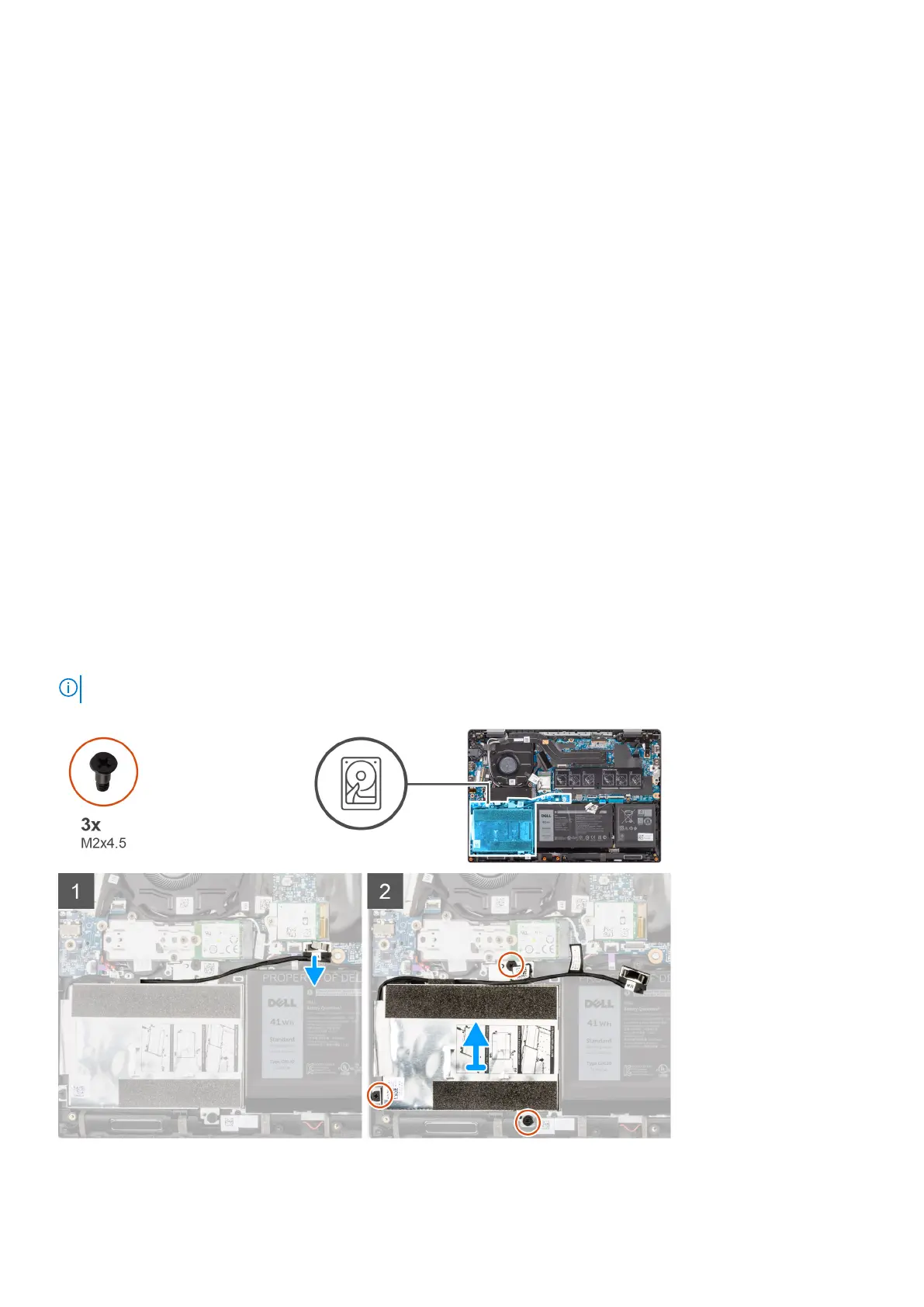

The following image indicates the location of the hard-disk drive assembly and provides a visual representation of the removal
procedure.
NOTE: The following steps are applicable only for systems shipped with 3-cell battery.
Removing and installing components 31
