Heatsink assembly
Removing the heatsink assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for systems enabled with 4G LTE.
4. Enter the service mode.
5. Remove the base cover.
About this task

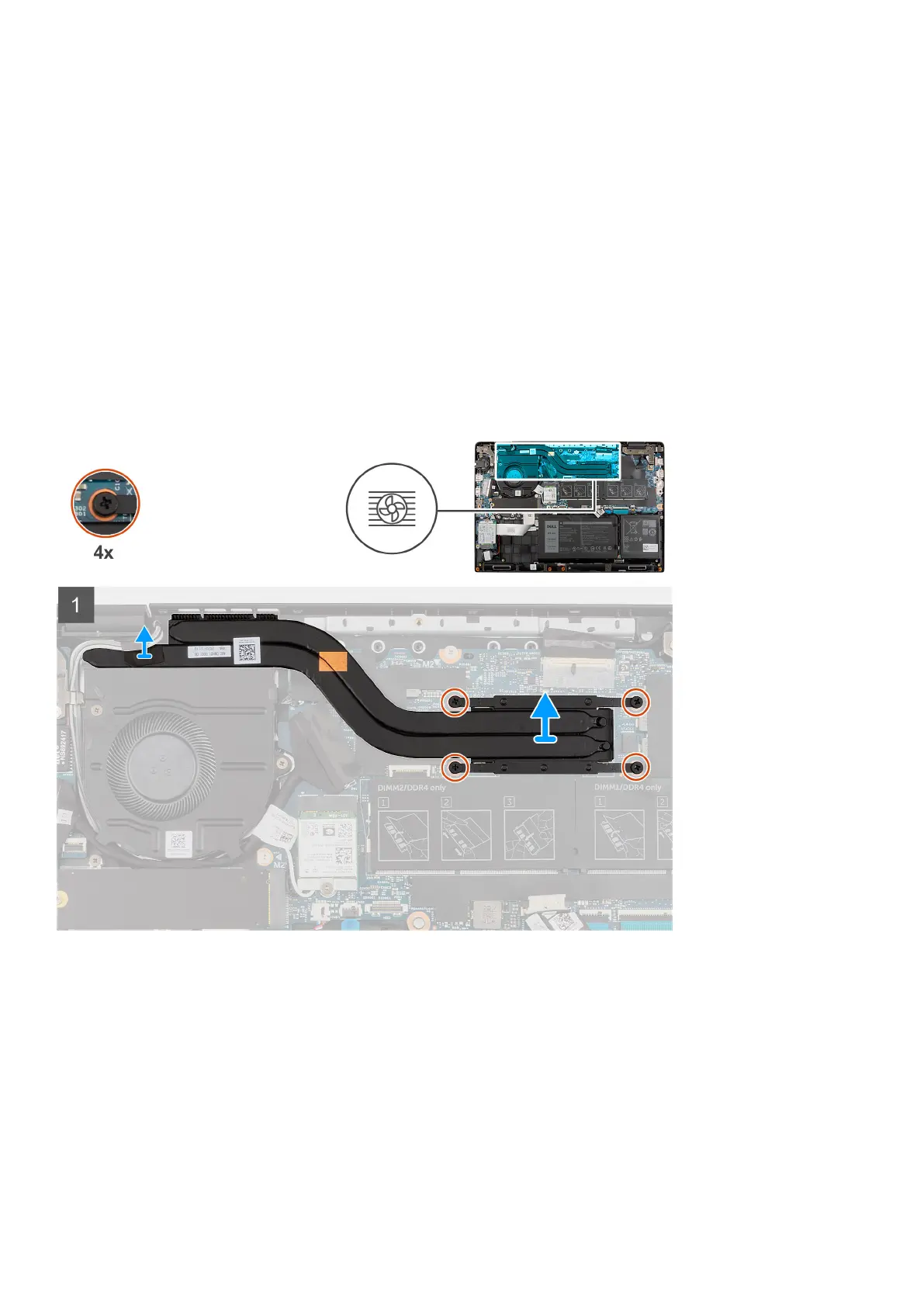

The following images indicate the location of the heatsink assembly and provide a visual representation of the removal
procedure.
Steps
1. Loosen the four captive screws (in reverse order, 4->3->2->1) that secure the heatsink assembly to the system board.
2. Lift and remove the heatsink assembly from the system board.
Installing the heatsink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
62
Removing and installing components
