Battery
Removing the 3-cell battery
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Remove the base cover.
About this task

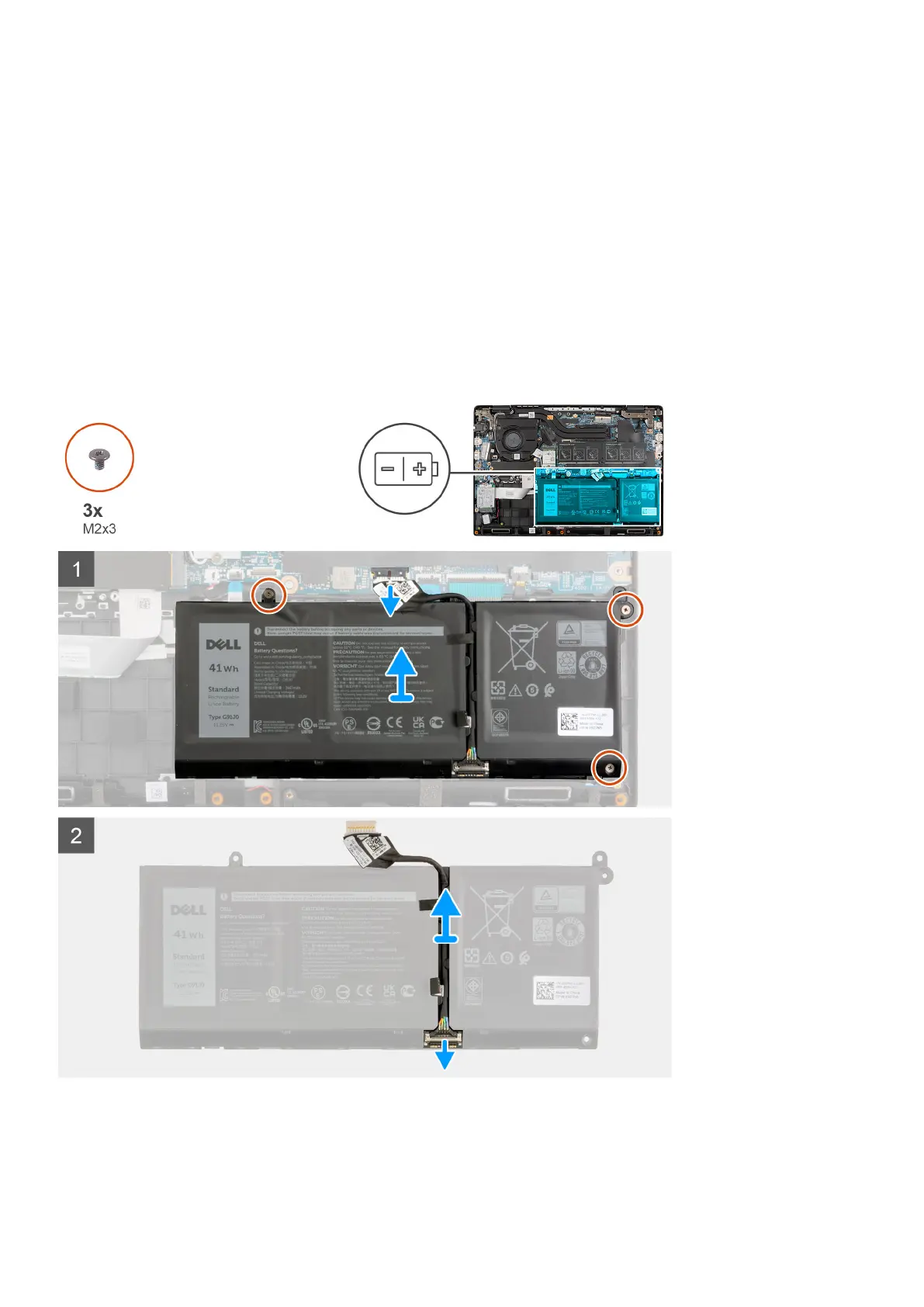

The following image indicates the location of the battery and provides a visual representation of the removal procedure.
Steps
1. Disconnect the battery cable from the connector on the system board.
2. Remove the three (M2X3) screws that secure the battery in place.
Removing and installing components
43
