Installing the system fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

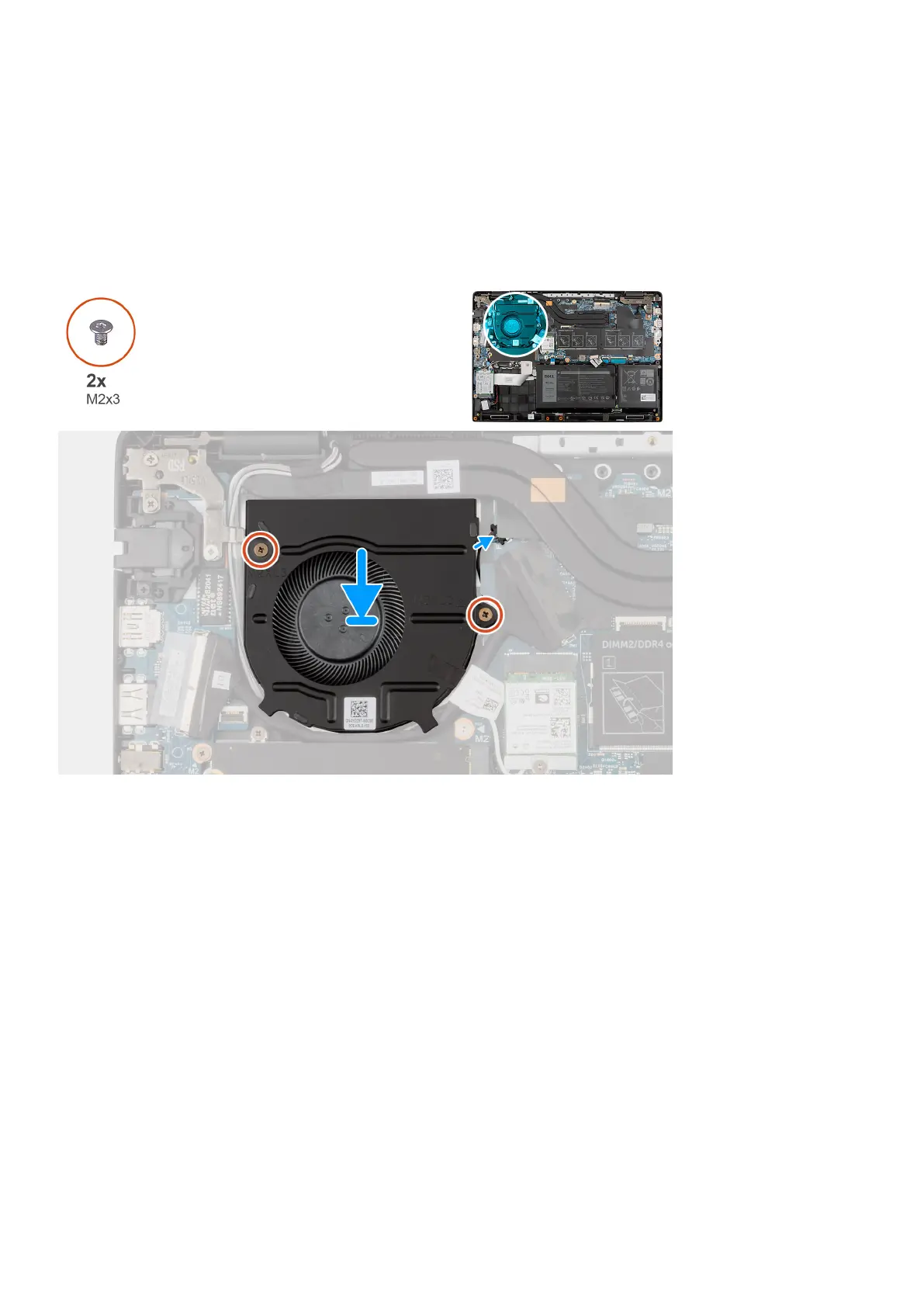

The following image indicates the location of the system fan and provides a visual representation of the installation procedure.
Steps
1. Align and place the system fan into the slot on the palmrest assembly.
2. Install the two (M2x3) screws to secure the system fan to the palmrest assembly.
3. Connect the system fan cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Exit the service mode
3. Install the SIM card tray for systems enabled with 4G LTE.
4. Install the microSD-card.
5. Follow the procedure in after working inside your computer.
