Camera
Removing the camera
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card for 4G LTE enabled systems.
8. Remove the I/O board cable.
9. Remove the display assembly.
10. Remove the display bezel.
11. Remove the display panel.
About this task

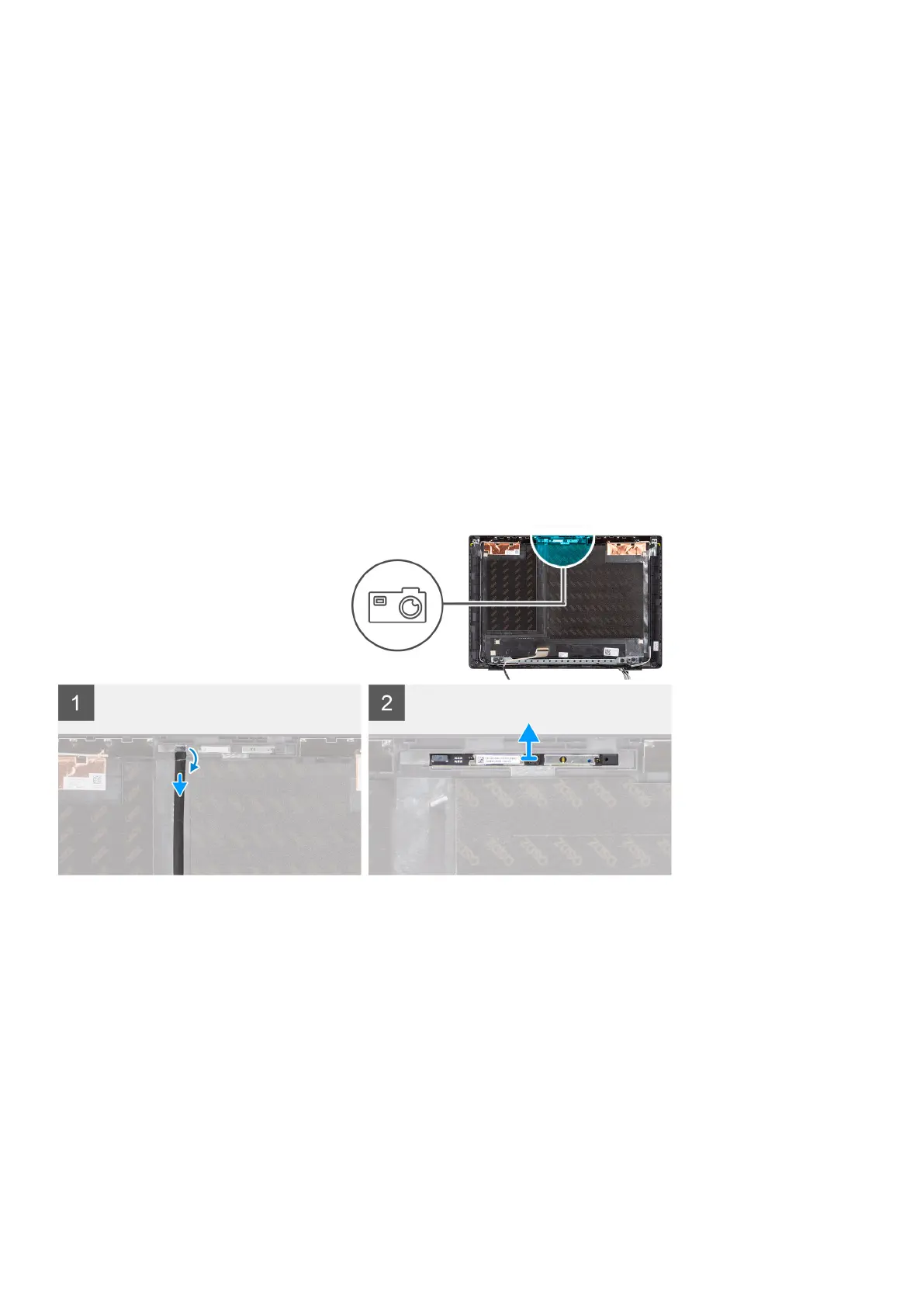

The following image indicates the location of the camera and provides a visual representation of the removal procedure.
Steps
1. Peel the adhesive that secures the camera cable to the connector on the camera module.
2. Disconnect the camera cable from the connector on the camera module.
3. Peel the camera cable from the display back-cover.
4. Carefully pry loose and remove the camera module from the display back-cover.
Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
