Display back-cover
Removing the display back-cover
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card for 4G LTE enabled systems.
8. Remove the I/O board cable.
9. Remove the display assembly.
10. Remove the display bezel.
11. Remove the display panel.
12. Remove the camera.
13. Remove the display cable.
About this task

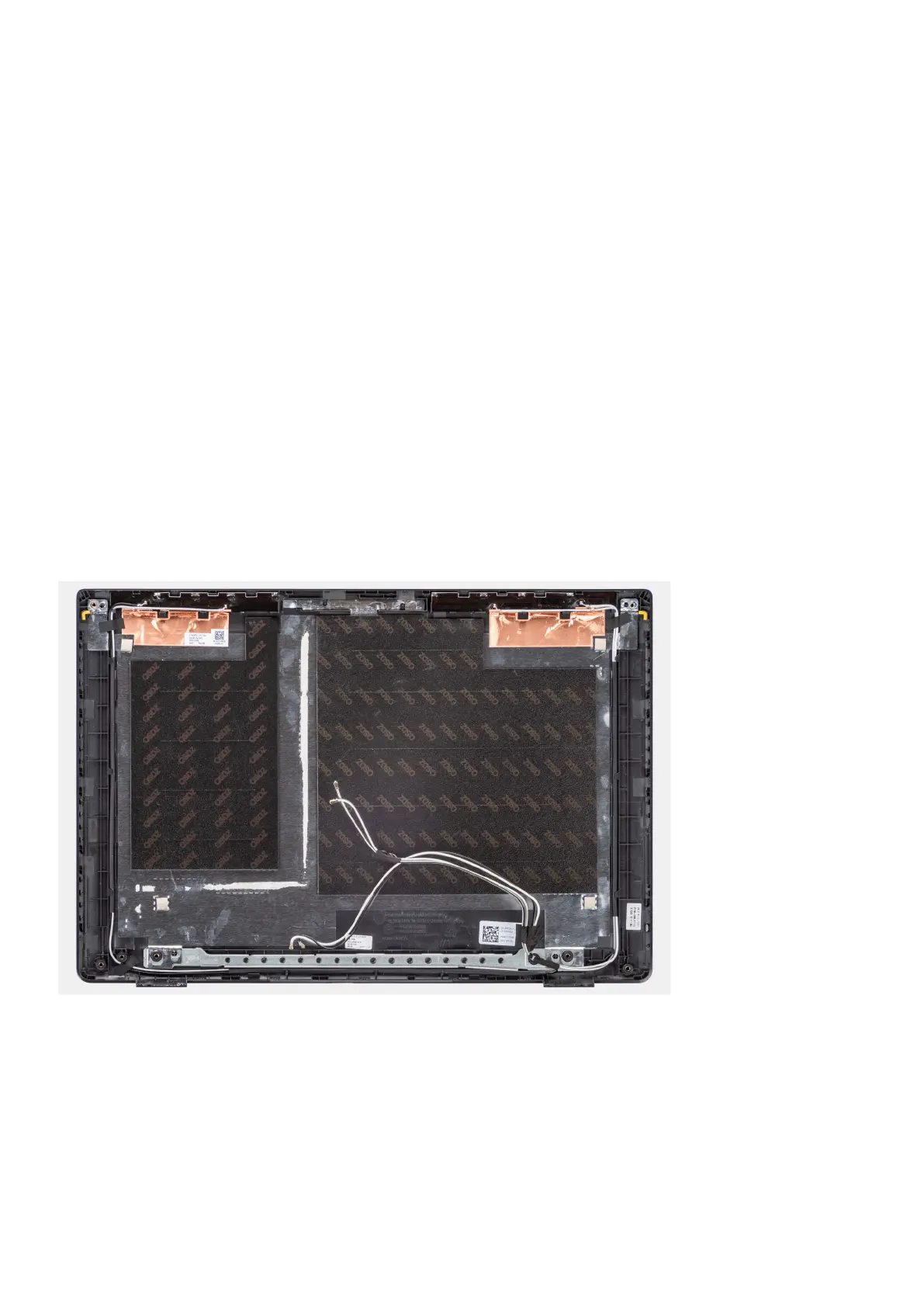

The following images indicate the location of the display back-cover and provide a visual representation of the removal
procedure.
Steps
After performing the preceding steps, you are left with the base cover assembly.
Installing the display back-cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
