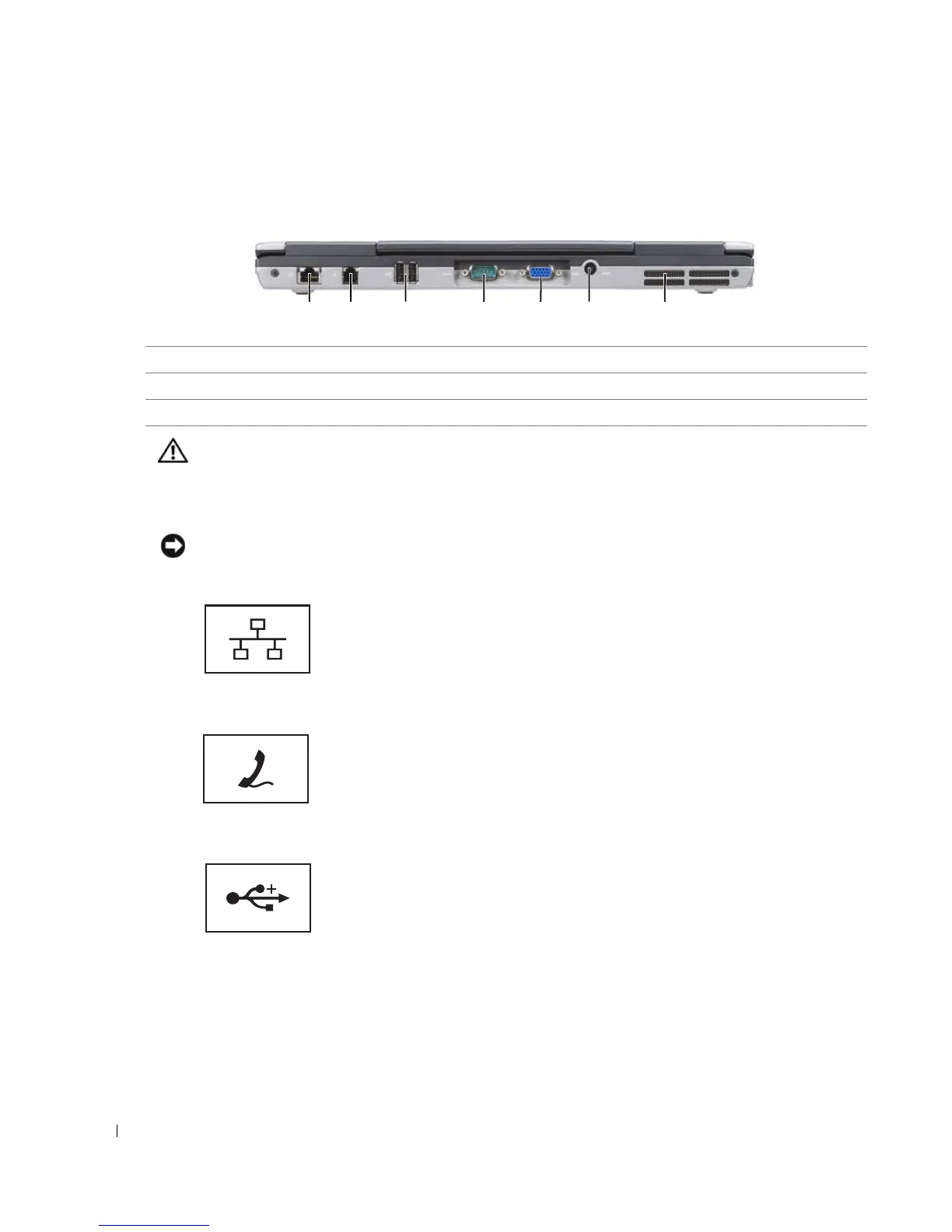

Back View
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store
your computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting
the airflow can damage the computer or cause a fire.
NETWORK CONNECTOR (RJ-45)
NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the
computer, do not plug a telephone line into the network connector.
MODEM CONNECTOR (RJ-11)
USB
CONNECTORS
1
network connector (RJ-45)
2
modem connector (RJ-11)
3
USB connectors (2)
4
serial connector
5
video connector
6
AC adapter connector
7
air vents
Connects the computer to a network. The two lights next to the connector
indicate status and activity for wired network connections.
For information on using the network adapter, see the device user’s guide
supplied with your computer.
Connect the telephone line to the modem connector.
For information on using the modem, see the online modem documentation
supplied with your computer (see "Finding Information" on page 13).
Connects USB devices, such as a mouse, keyboard, or printer.
1 2 63 4 75
