Mini Tower Computer Parts 159
3
Push the release tab on the card retention latch from the inside to pivot
the latch open. The latch will remain in the open position.
4
Open the card retention mechanism that secures the card in place from
the top:
a
Place your thumb on the top of the card retention mechanism and
grip the bottom of the retention mechanism with your fingers.
b
With your free hand, gently squeeze the sides of the card retention
mechanism to release it from the tab slots holding it in place.
c
Pivot the card retention mechanism outward to release it from the two
tab slots.

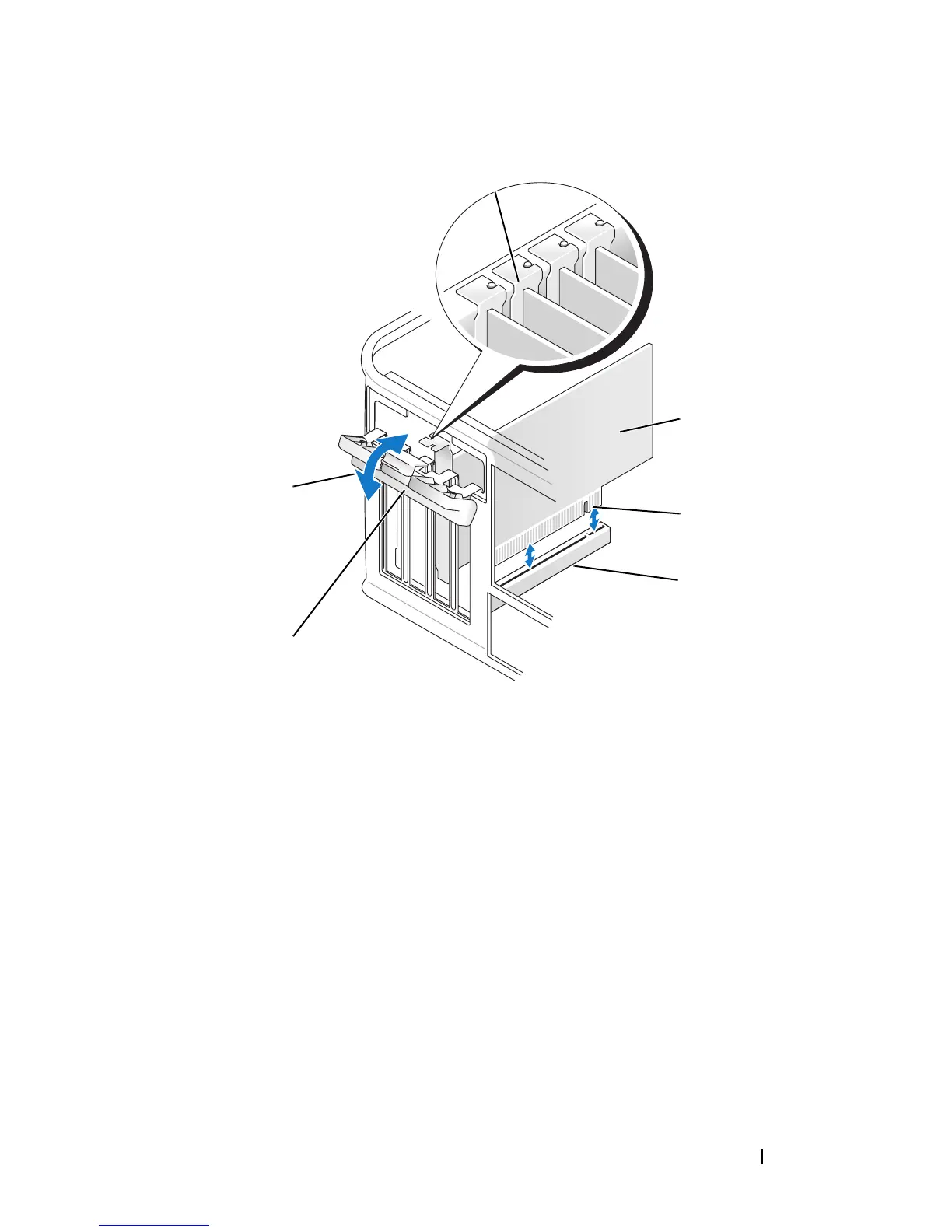

1 alignment guide 2 card
3 card-edge connector 4 card connector
5 release tab 6 card retention latch
1
2
6
3
4
5
