Mini Tower Computer Parts 189
8
Check all cable connections, and fold cables out of the way to avoid
blocking airflow between the fan and cooling vents.
9
Replace the drive panel by aligning its hinges and rotating it up until it
snaps into place.
10
Replace the bezel (see "Replacing the Bezel" on page 166).
11
Replace the computer cover (see "Replacing the Computer Cover" on
page 207).
NOTICE: To connect a network cable, first plug the cable into the network device
and then plug it into the computer.

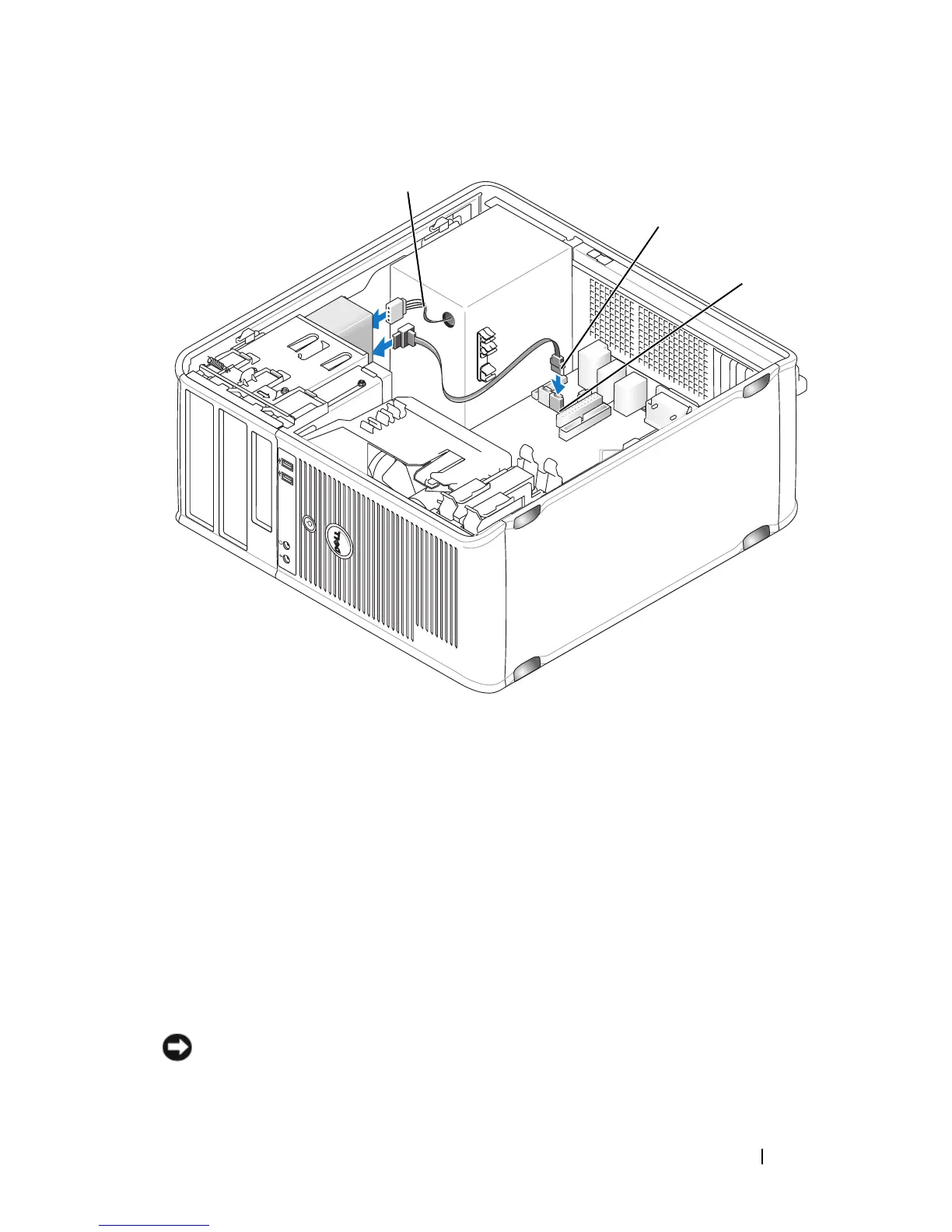

1 power cable 2 optical drive data cable
3 optical drive connector
3
2
1
