Dell OptiPlex 760 User Manual


4. If necessary, disconnect any cables connected to the card.

5. Press the lever with your thumb until you release the securing tab.
If you are removing a PCI Express x16 card, go to step6.
If you are removing a DVI card, go to step7

6. While pressing the lever, pull the card up and out of the card connector.

7. While pressing the lever, pull the removal pull tab up and remove the card out of the card connector.

8. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.

9. Before you close the card retention mechanism, ensure that:
l The tops of all cards and filler brackets are flush with the alignment bar.
l The notch in the top of the card or filler bracket fits around the alignment guide.

10. Secure any remaining card(s) by closing the card retention latch and snapping it into place.


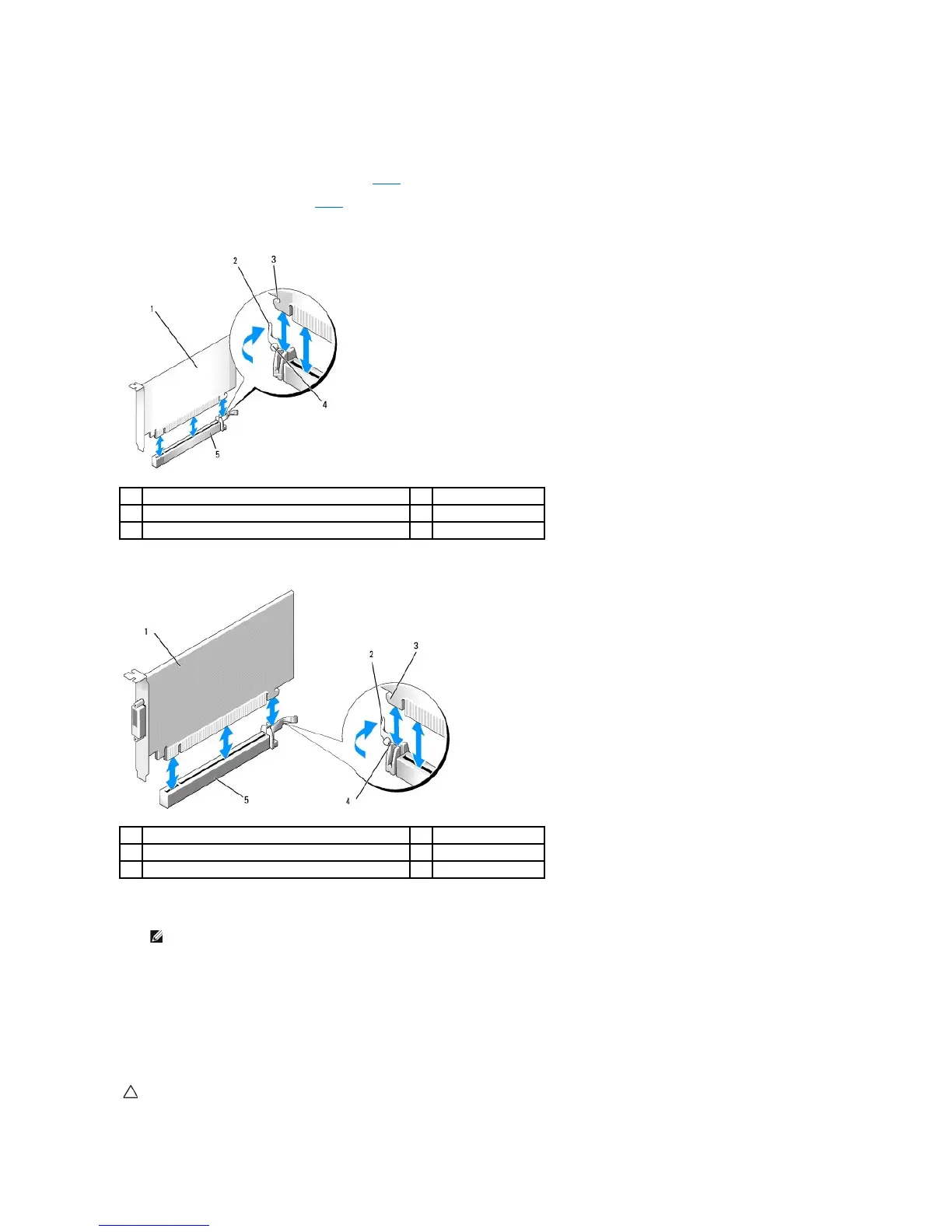

1
PCI Express x16 card
2
lever
3
securing slot (not all cards)
4
securing tab
5
PCI Express x16 card connector


1
PCI Express x16 DVI-card
2
lever
3
securing slot
4
securing tab
5
PCI Express x16 card connector


NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets keep dust
and dirt out of your computer and maintain the airflow that cools your computer.
CAUTION: Do not route card cables over the cards. Cables routed over the cards can prevent the computer cover from closing properly or cause
damage to the equipment.

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
