Dell™OptiPlex™760ServiceManual

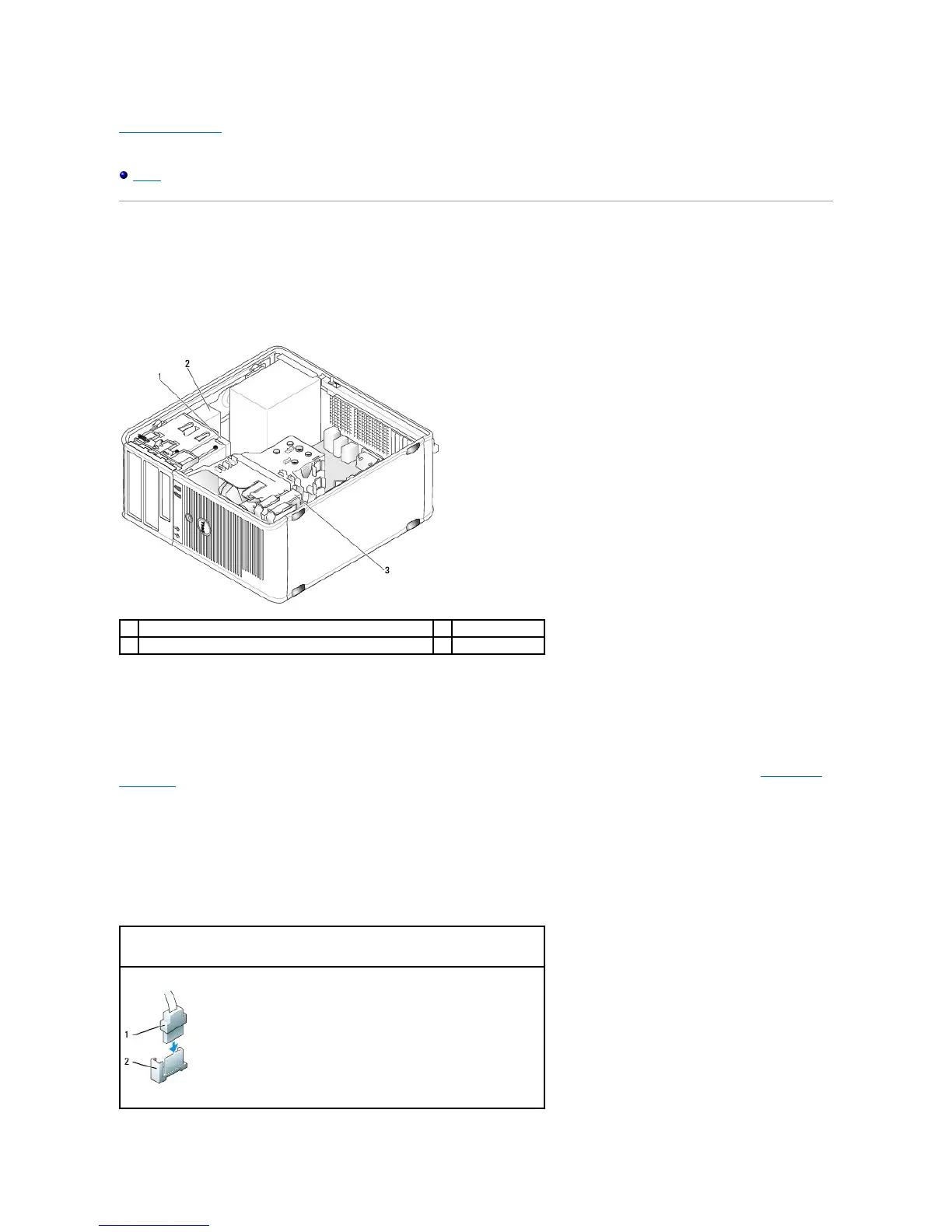

Drives
Drives
Your computer supports:
l Two SATA (Serial ATA) hard drives
l One 3.5-inch floppy drive or media card reader
l Two SATA optical drives

General Drive Installation Guidelines
SATA connectors on the system board are labeled SATA0, SATA1, SATA2, and SATA3.
Hard drives must be connected to the lower numbered SATA connectors, while any other SATA devices (like an optical drive) must be connected to the
remaining SATA connectors numbered higher than the one that the hard drive(s) is connected to. For example, if you have two SATA hard drives and one SATA
optical drive, connect the two hard drives to the SATA0 and SATA1 connectors, and connect the SATA optical drive to the SATA2 connector. See System Board
Components for the location of SATA connectors on the system board.

Connecting Drive Cables
When you install a drive, you connect two cables—a DC power cable and a data interface cable—to the back of the drive.

Data Interface Connectors
1
3.5-inch floppy drive or media card reader
2
optical drive
3
hard drive



SATA Connector

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
