Dell OptiPlex 760 User Manual



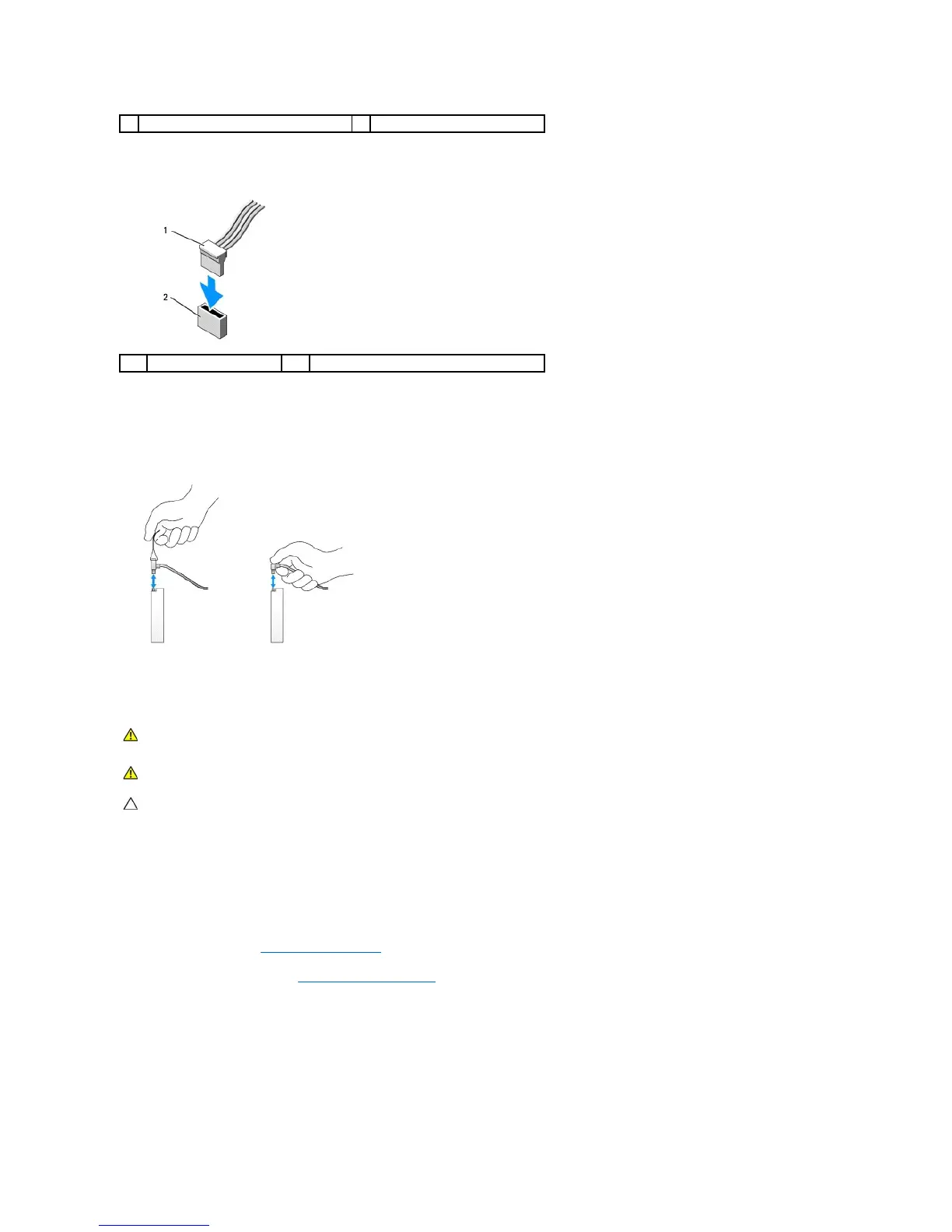

Power Cable Connectors

Connecting and Disconnecting Drive Cables
When removing a cable with a pull-tab, grasp the colored pull-tab and pull until the connector detaches.
When connecting and disconnecting a cable without a pull tab, hold the cable by the black connector at each end.

Hard Drive




Removing a Hard Drive

1. If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.

2. Check the documentation for the drive to verify that it is configured for your computer.

3. Follow the procedures in Working on Your Computer.

4. Remove the computer cover (see Removing the Computer Cover).

5. Disconnect the power and data cables from the hard drive and system board.
1
data interface cable connector
2
data interface connector
1
power cable
2
power input connector
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.
CAUTION: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will
sufficiently cushion it.

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
