Dell™OptiPlex™760ServiceManual

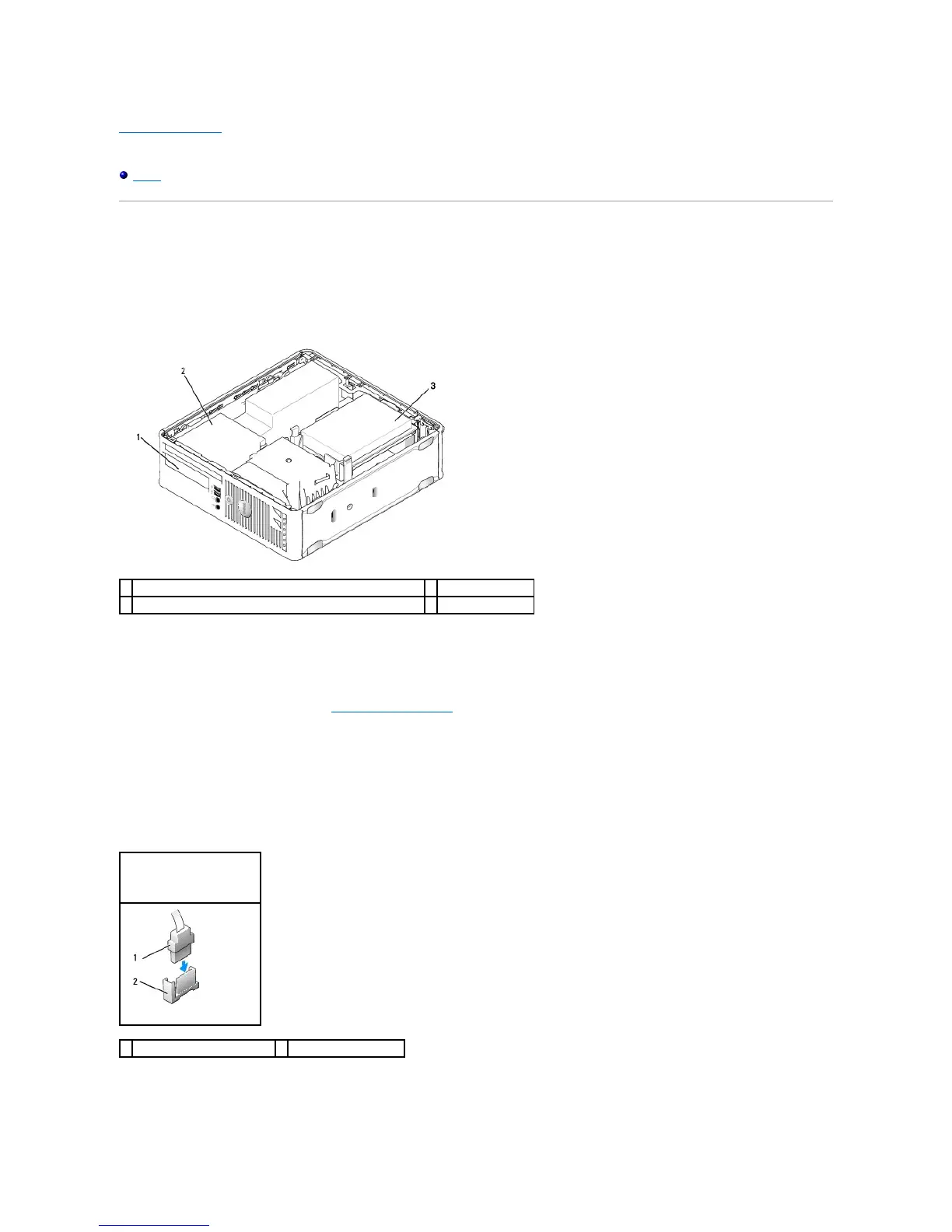

Drives
Drives
Your computer supports:
l One SATA (serial ATA) hard drive
l One slimline floppy drive or media card reader
l One SATA slimline optical drive

General Installation Guidelines
SATA connectors on the system board are labeled SATA0 and SATA1. Hard drives must be connected to SATA0, while any other SATA devices (like an optical
drive) must be connected to SATA1. For example, if you have a SATA hard drive and a SATA optical drive, connect the hard drive to the SATA0, and connect the
SATA optical drive to the SATA1 connector. See System Board Components for the location of the SATA connectors on the system board.

Connecting Drive Cables
When you install a drive, you connect two cables (a DC power cable and a data interface cable) to the back of the drive.

Data Interface Connectors

Power Cable Connectors
1
3.5-inch drive bay for optional floppy drive or media card reader
2
slimline optical drive
3
hard drive



Serial ATA (SATA)
Connector
1
data interface cable connector
2
data interface connector

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
