Dell OptiPlex 760 User Manual


12. Replace the floppy drive or media card reader (see Installing a Floppy Drive).

13. Replace the optical drive (see Installing an Optical Drive).

14. Replace the computer cover (see Replacing the Computer Cover).

15. Connect the AC power cable to the power supply AC power connector.


16. Connect your computer and devices to electrical outlets, and turn them on.


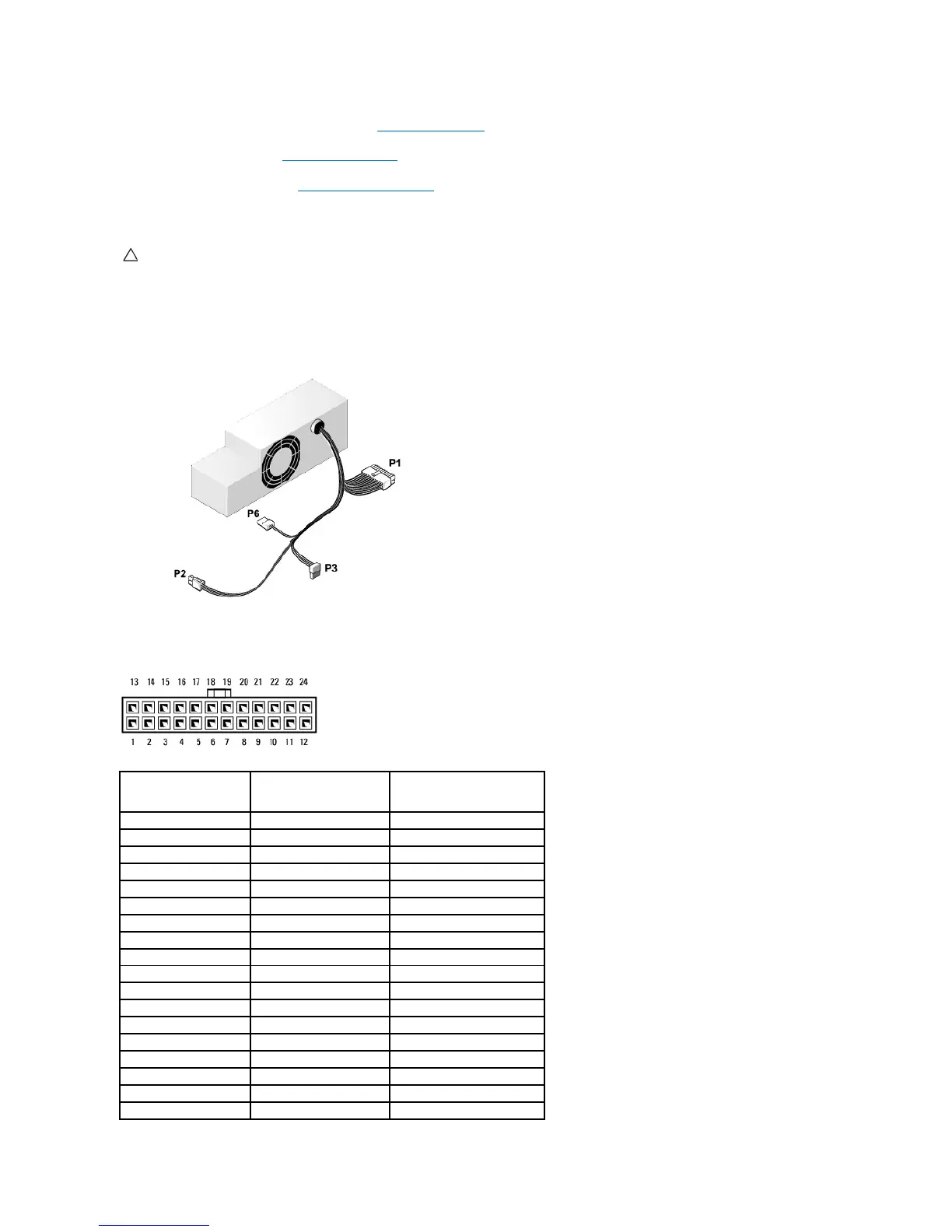

DC Power Connectors

DC Power Connector P1
CAUTION: To connect a network cable, plug the cable into the network wall jack and then plug it into the computer.

Pin Number

Signal Name

18-AWG Wire
1
COM
Black
2
FAN
Brown
3
N/C
N/C
4
+3.3 VDC
Orange
5
COM
Black
6
COM
Black
7
+12 VDC
Yellow
8
+5 VSB
Purple
9
COM
Black
10
+5 VDC
Red
11
+5 VDC
Red
12
+5 VDC
Red
13
COM
Black
14
COM
Black
15
+3.3 VDC
Orange
16
+3.3 VDC
Orange
17
POK
Gray
18
COM
Black

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
