8. Insert the card firmly into the card connector on the riser-card cage.

9. Lower the card-retention latch and press it into place, securing the card(s) in the computer.

10. Replace the riser-card cage:
a. Align the tabs in the side of the riser-card cage with the slots on the side of the computer, and slide the riser-card cage down into place.
b. Ensure that the riser cards are fully seated in the connectors on the system board.

11. Reconnect any cables that you removed in step 4.

12. Connect any cables that should be attached to the card.


13. Replace the computer cover (see Replacing the Computer Cover), reconnect the computer and devices to electrical outlets, and then turn them on.

14. If you installed a sound card:
a. Enter system setup, select System Configuration® Miscellaneous Devices, and change the Audio setting to Disabled (see Entering System
Setup).
1

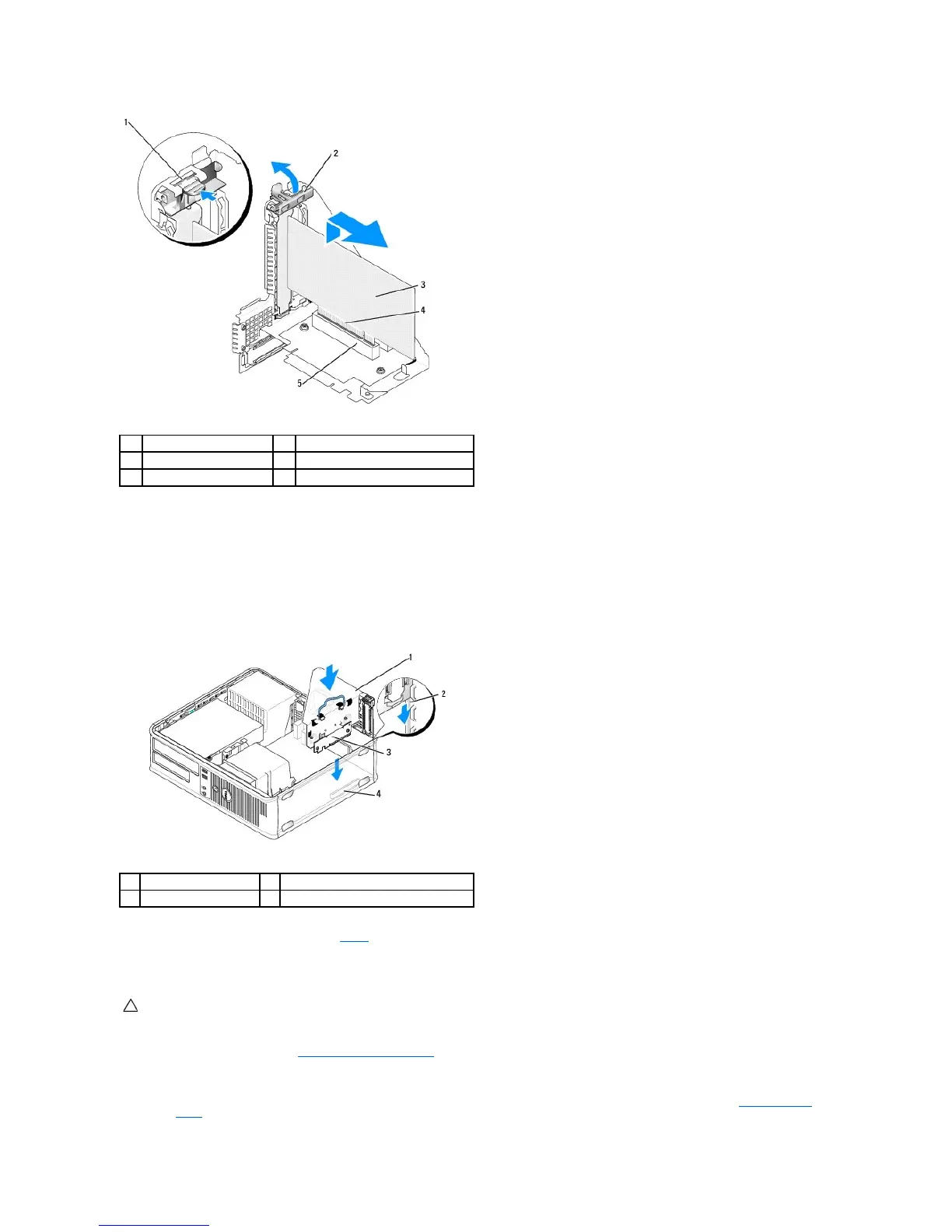

release tab
2
card-retention latch
3
card
4
card-edge connector
5
card connector


1
riser-card cage
2
slots
3
riser cards
4
system board connectors
CAUTION: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly
or cause damage to the equipment.

Dell OptiPlex 760 Specifications

General

Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Processor	Intel Core 2 Duo
Chipset	Intel Q43 Express
Memory	Up to 8GB DDR2
Storage	Up to 1TB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 4500
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, VGA, DisplayPort
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop, Small Form Factor, Ultra Small Form Factor
Power Supply	235W (Small Form Factor)
