Dell OptiPlex 960 User Manual



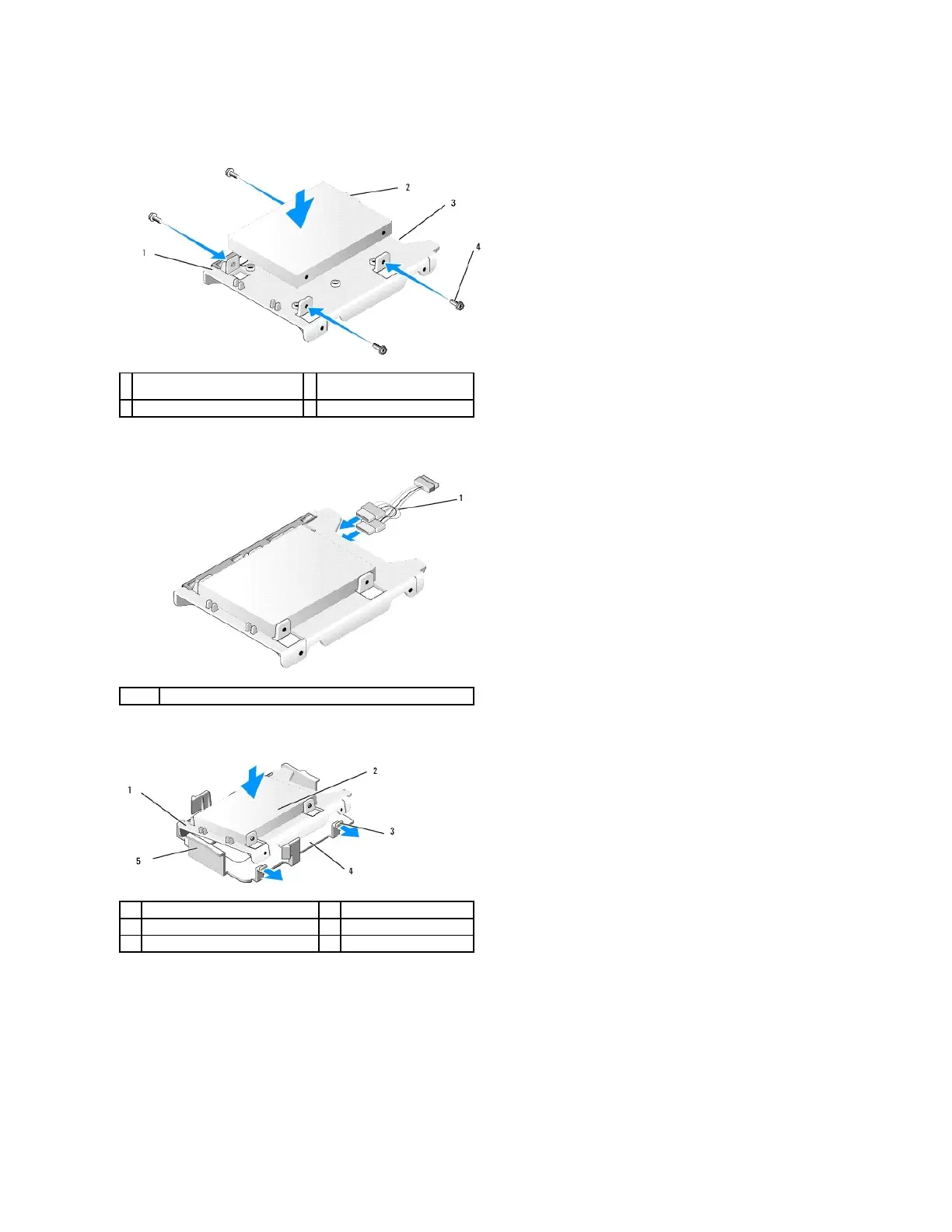

3. If installing 2.5-inch hard drives as the primary hard drive:
a. Position the new 2.5-inch hard drive into the flat side of the 2.5-inch hard drive caddy with the side of the drive with the label plate facing away
from the caddy, and the connector end of the drive toward the end of the caddy with the cable cutout (back end).
b. Secure the drive to the drive caddy with four screws, two on each side.
c. Attach the power cable adapter to the hard drive(s) installed in the caddy.
d. Install the 2.5-inch hard drive caddy into the drive bay caddy by gently bending out the release tabs on the side of the caddy and positioning the
2.5-inch hard drive caddy in the drive bay caddy. The pins inside the drive bay caddy should align with the holes on the sides of the 2.5-inch hard
drive caddy, and the connector end of the hard drive should face the back of the drive bay caddy.

4. Connect the power and data cables to the drive(s). When installing the primary hard drive, ensure that the data cable is attached to the SATA0
connector on the system board.

5. Lower the drive bay caddy into the drive bay and slide it forward until it clicks into place.
1
2.5-inch hard drive caddy, flat side
up
2
2.5-inch hard drive, connector
end
3
cable cutout
4
screws (4)
1
power cable adapter
1
2.5" hard drive caddy
2
2.5" hard drive
3
release tabs (2)
4
drive bay caddy
5
drive bay caddy front



Dell OptiPlex 960 Specifications

General

Tcase	72.4 °C
Bus type	FSB
Stepping	E0
Processor cache	6 MB
Processor cores	2
Processor model	E8400
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E8000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Wolfdale
Processing Die size	107 mm²
Processor frequency	3 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	9
Number of Processing Die Transistors	410 M
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 2 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-RW
Total storage capacity	250 GB
Networking features	Gigabit Ethernet
Graphics card family	AMD
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Discrete graphics card model	AMD Radeon HD 3470
Maximum graphics card memory	- GB
On-board graphics card model	Not available
Discrete graphics card memory	256 GB
Operating system installed	Windows 7 Professional
Microphone in	Yes
USB 2.0 ports quantity	10
Firewire (IEEE 1394) ports	0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	SFF
Product color	Black
Product type	PC
Processor code	SLB9J
Processor ARK ID	33910
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	323 mm
Width	85 mm
Height	289 mm
Weight	5900 g
