Dell™Optiplex™960MiniTower/Desktop/SmallFormFactorServiceManual
Cards
Cards


YourDell™computerprovidesthefollowingconnectorsforPCIandPCIExpress(PCIe)cards:
l One low-profile PCIe x16 card slot
l Two connectors for low-profile PCI cards
l One low-profile PCIe x1 card slot
l One connector for an internal wireless card

PCI and PCIe Cards

Installing a PCI Card
If you are replacing a PCI card, remove the current driver for the card from the operating system. See the documentation that came with the card for
information.

1. Perform the procedure Before Working on Your Computer.

2. Gently press the release tab on the card-retention latch all the way up.
CAUTION: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional
safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface on the computer chassis.
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC compliance of the computer. The brackets help to keep
foreign objects out of your computer and help direct airflow for cooling.

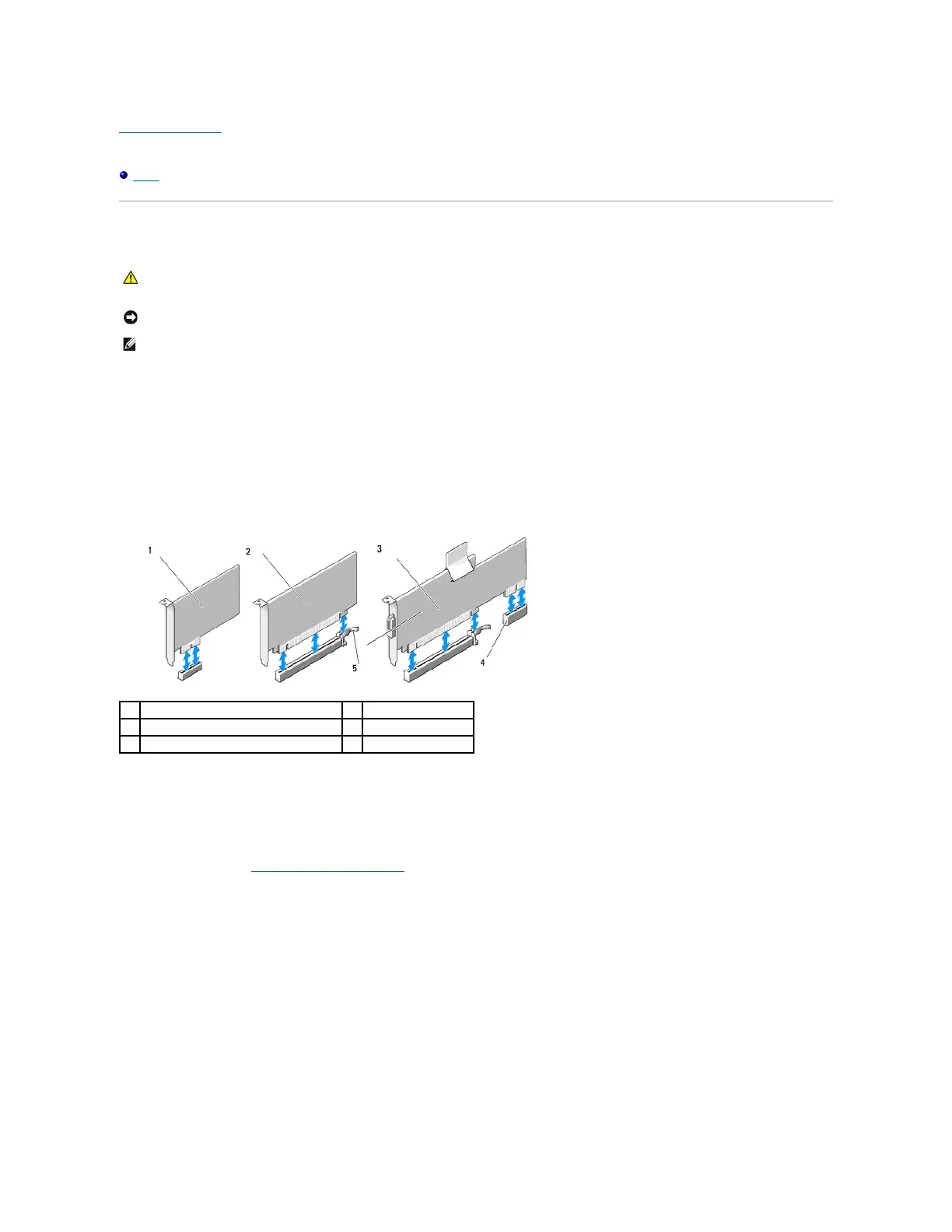

1
PCIe x1 card
2
PCIe x16 card
3
PCIe x16 riser interface
4
PCIe x1 card
5
release lever, securing tab



Dell OptiPlex 960 Specifications

General

Tcase	72.4 °C
Bus type	FSB
Stepping	E0
Processor cache	6 MB
Processor cores	2
Processor model	E8400
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo E8000 Series
Processor socket	LGA 775 (Socket T)
Processor codename	Wolfdale
Processing Die size	107 mm²
Processor frequency	3 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	9
Number of Processing Die Transistors	410 M
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 2 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-RW
Total storage capacity	250 GB
Networking features	Gigabit Ethernet
Graphics card family	AMD
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Discrete graphics card model	AMD Radeon HD 3470
Maximum graphics card memory	- GB
On-board graphics card model	Not available
Discrete graphics card memory	256 GB
Operating system installed	Windows 7 Professional
Microphone in	Yes
USB 2.0 ports quantity	10
Firewire (IEEE 1394) ports	0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	SFF
Product color	Black
Product type	PC
Processor code	SLB9J
Processor ARK ID	33910
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	323 mm
Width	85 mm
Height	289 mm
Weight	5900 g
