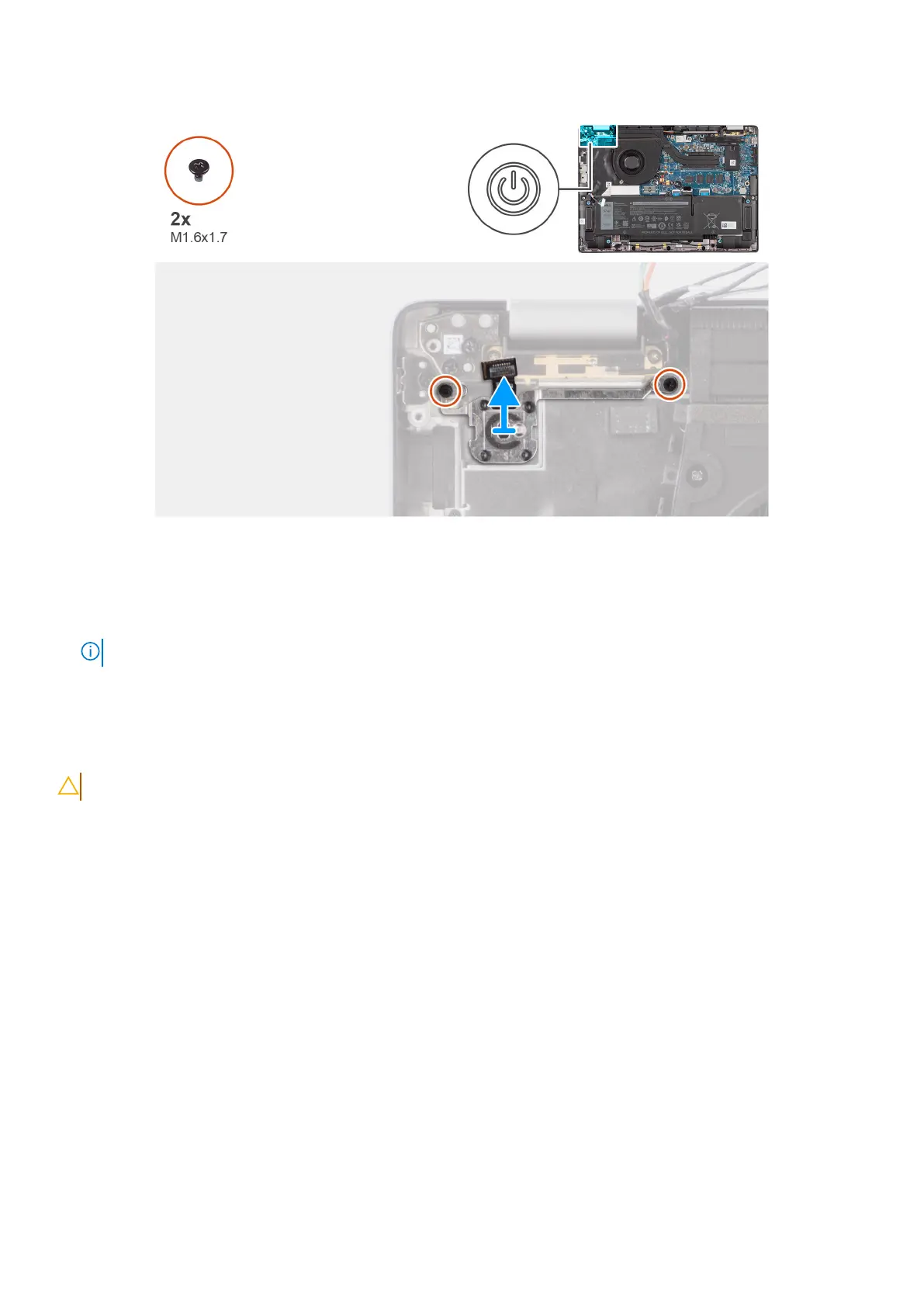

Figure 76. Removing the power button with optional fingerprint reader
Steps
1. Remove the two screws (M1.6x1.7) that secure the power button to the palm-rest and keyboard assembly.
2. Peel the fingerprint reader flexible printed circuits from the connector on the palm-rest and keyboard assembly.
NOTE: This step applies only to computers shipped with the power button with the fingerprint reader installed.
3. Lift the power button off the slot on the palm-rest and keyboard assembly.
Installing the power button with optional fingerprint reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power button with an optional fingerprint reader and provide a visual
representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
105
