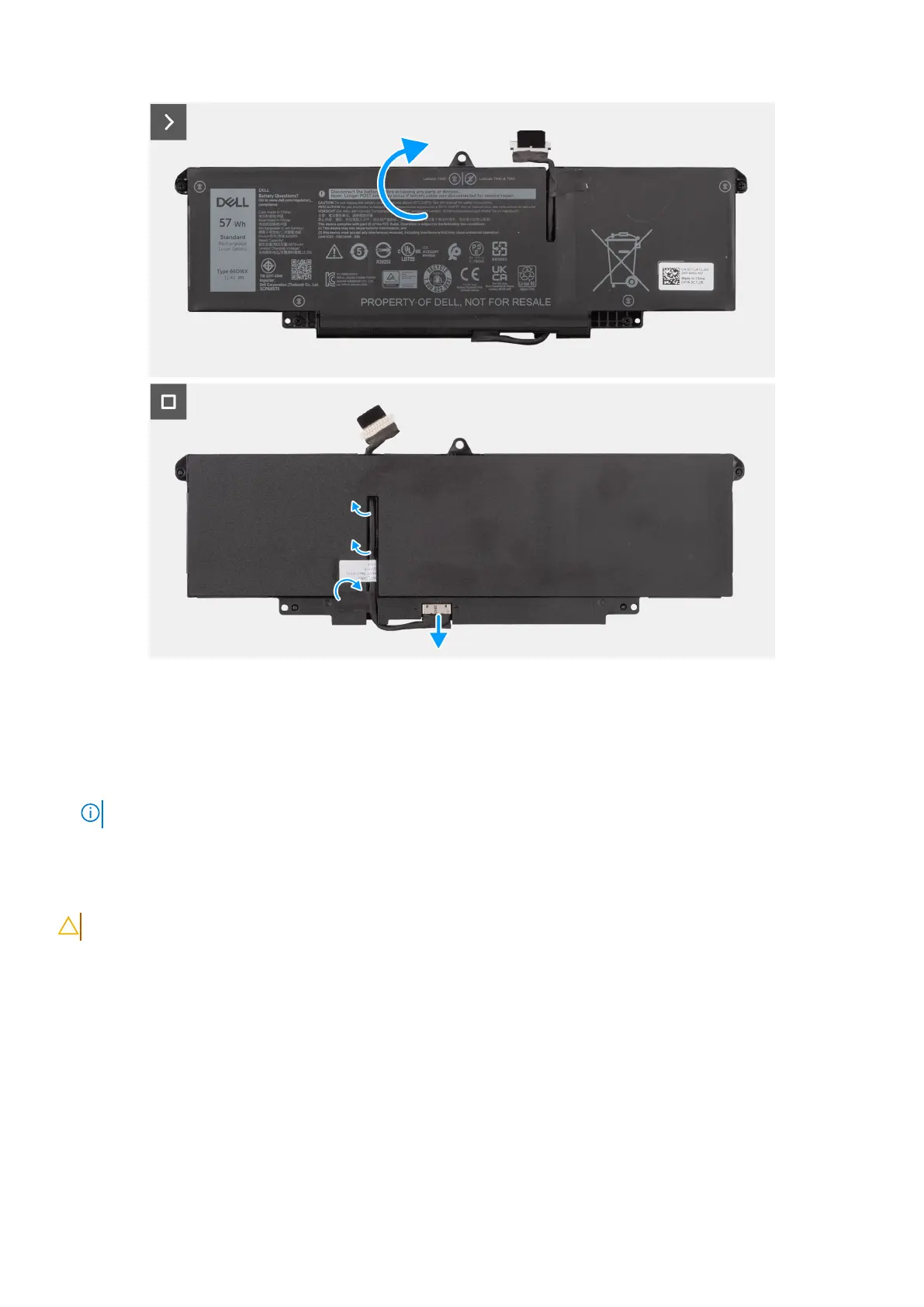

Figure 44. Removing the battery cable
Steps
1. Flip the battery and unroute the battery cable from the routing guides on the battery.
2. Disconnect the battery cable from the connector on the battery.
3. Lift the battery cable away from the battery.
NOTE: Dummy filler for a 2-cell battery is not required for the lightweight WLAN configuration.
Installing the battery cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the installation procedure.
74
Removing and installing Field Replaceable Units (FRUs)
