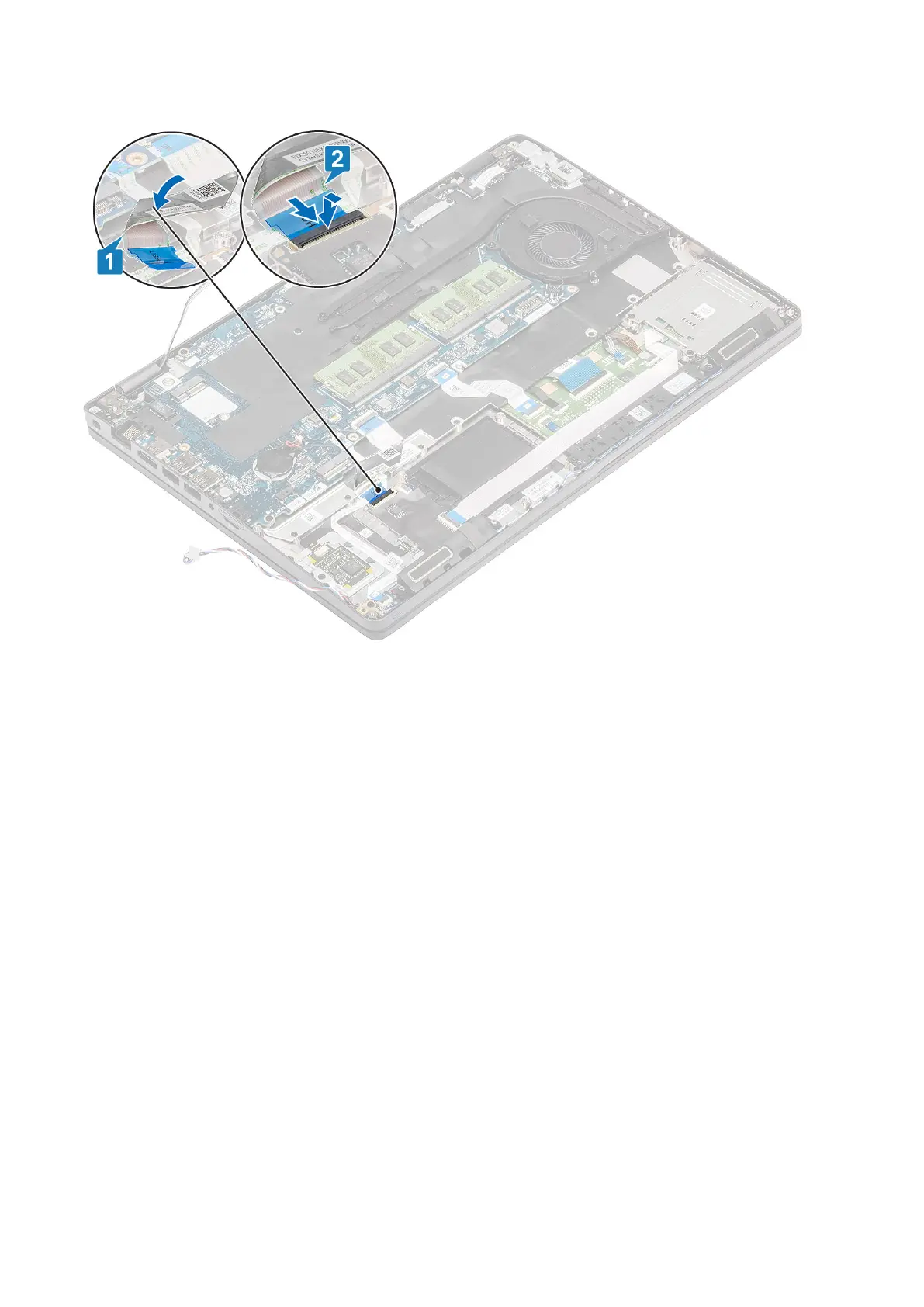

4. Connect and adhere the USH daughter board Flexible Flat Cable (FFC) from the USH daughter board [1, 2].
Next steps
1. Replace the battery.
2. Replace the base cover.
3. Replace the microSD card.
4. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the LED board.
Steps
1. Disconnect the speaker cable from the connector on the system board.
2. Peel the adhesive tapes and unroute the speaker cable.
60
Disassembly and reassembly
