Next steps
1. Replace the display assembly.
2. Replace the battery.
3. Replace the base cover.
4. Replace the microSD card.
5. Follow the procedure in after working inside your computer.
Display panel
Removing display panel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the display assembly.
6. Remove the display bezel.
Steps

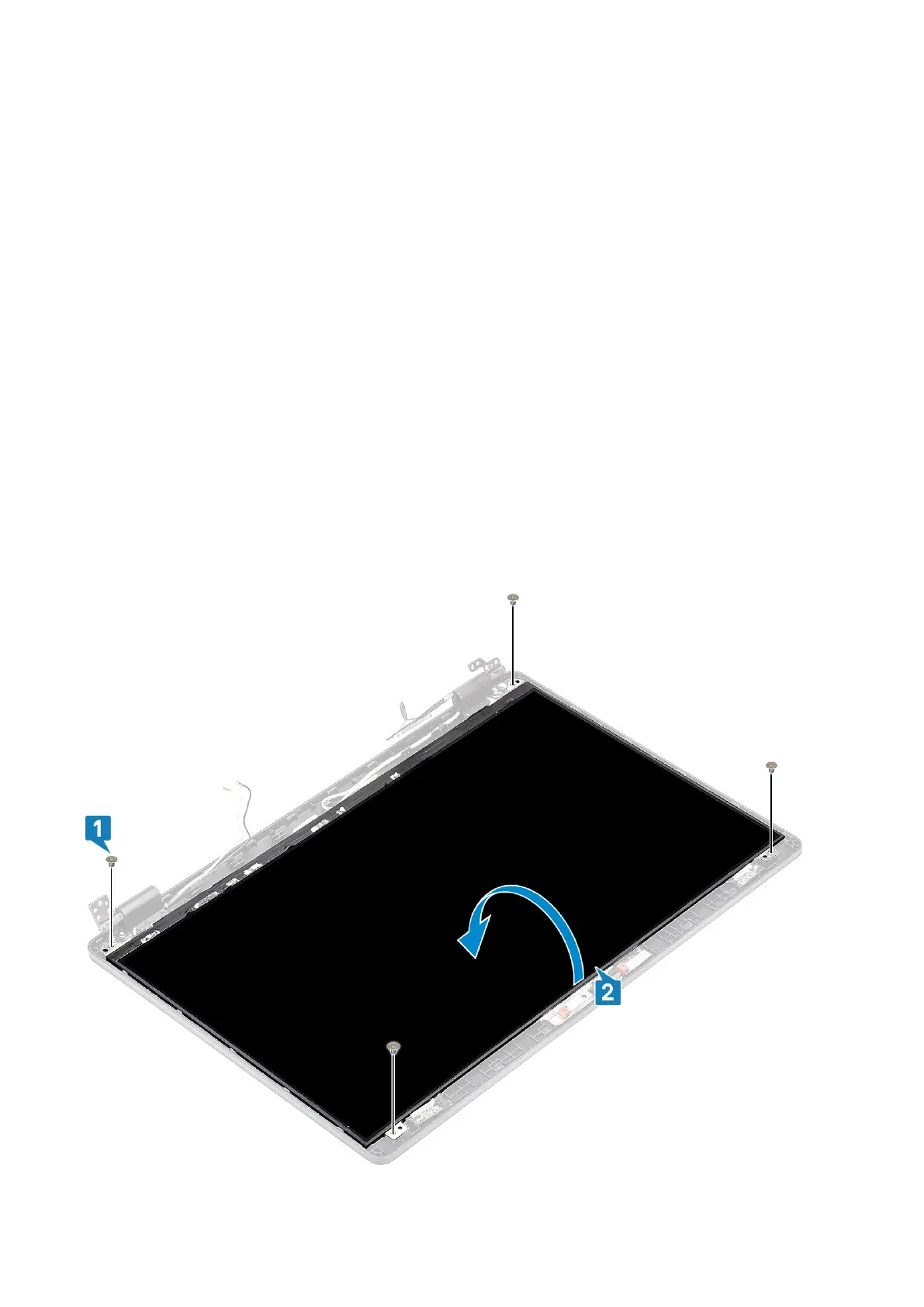

1. Remove the four (M2.5x3.5) screws that secure the display panel to the display assembly [1] and lift to turn over the display panel to
access the display cable [2].
Disassembly and reassembly
93
