Dell P80F User Manual

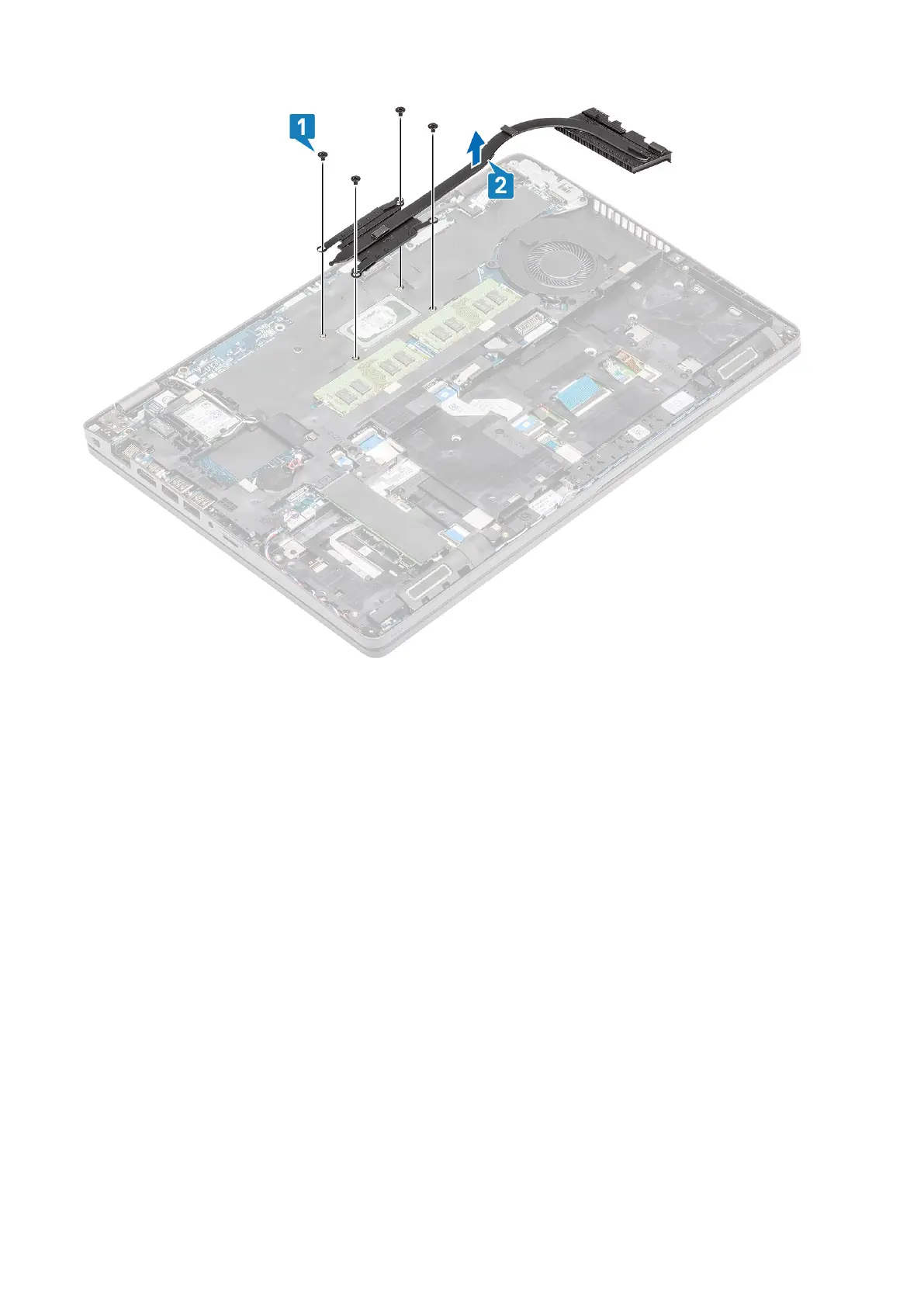

Installing the heatsink - UMA
Steps
1. Place the heatsink on the system board and align the screw holes on the heatsink with the screw holes on the system board [1].
2. In sequential order (as indicated on the heatsink), tighten the four (M2x3) screws that secure the heatsink to the system board [2].
64
Disassembly and reassembly

Dell P80F Specifications

General

Brand	Dell
Model	P80F
Category	Laptop
Language	English
