3. Remove the base cover.
4. Remove the battery.
5. Remove the speaker.
6. Remove the memory module.
7. Remove the system fan.
8. Remove the DC-in .
9. Remove the WLAN card.
10. Remove the system board.
NOTE: System board can be removed with heatsink attached.
11. Remove the coin cell battery.
12. Remove the keyboard.
Steps

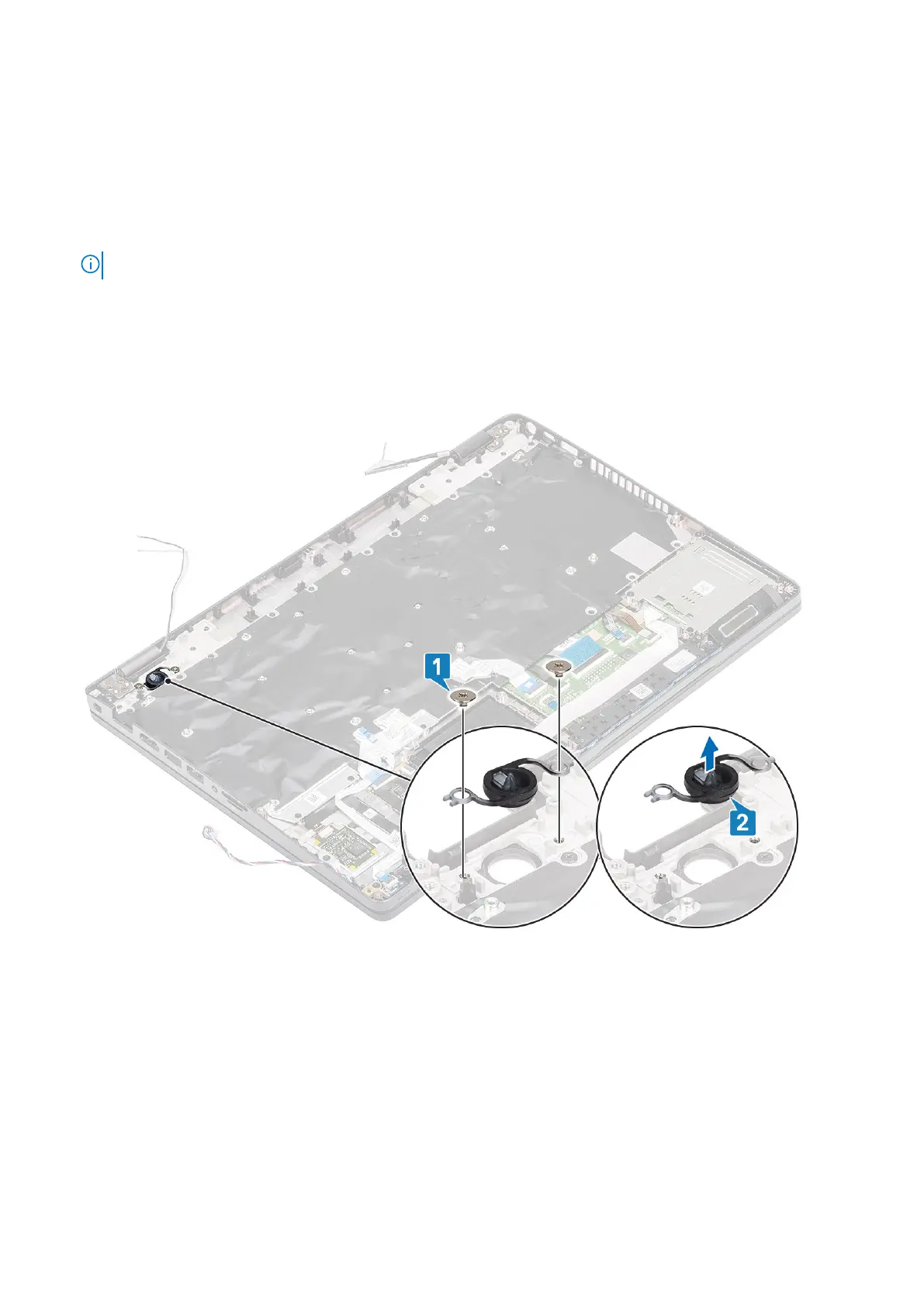

1. Remove the two (M2x2) screws that secure the power button on the palmrest [1].
2. Lift the power button off the palmrest [2].
Installing the power button
Steps
1. Place the power button on the palmrest [1].
2. Replace the two (M2x2) screws that secure the power button on the palmrest [2].
82
Disassembly and reassembly
