Next steps
1. Replace the hard drive assembly.
NOTE:
Required for systems with 42 Whr battery
2. Replace the battery.
3. Replace the
base cover.
4. Replace the SD memory card.
5. Follow the procedure in after working inside your computer.
Touchpad
Removing the touchpad assembly
Prerequisites
NOTE: For information only, touchpad is included with the palmrest assembly.
1. Follow the procedure in before working inside your computer
.
2. Remove the SD memory card.
3. Remove the base cover.
4. Remove the battery.
Steps

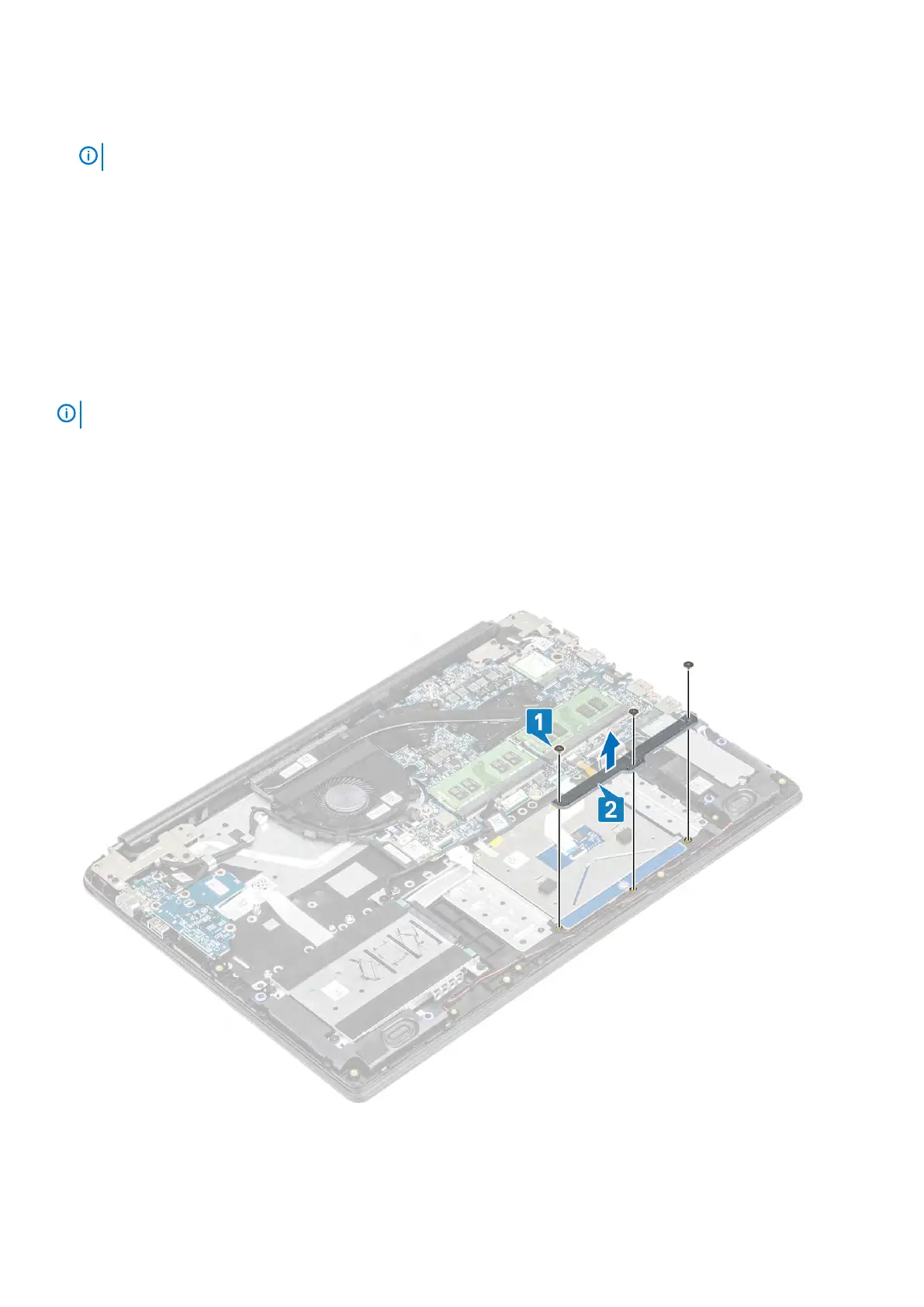

1. Remove the three (M2x2) screws that secure the touchpad bracket to the palmrest and keyboard assembly [1].
2. Lift the touchpad bracket off the palmrest and keyboard assembly [2], and peel the tape that secures the bracket to the palmrest.
3. Open the latch and disconnect the touchpad cable from the system board [1].
4. Peel the tape that secures the touchpad to the palmrest and keyboard assembly [2].
30 Removing and installing components
