Next steps
1. Replace the display assembly.
2. Replace the system fan.
3. Replace the battery.
4. Replace the base cover.
5. Replace the SD memory card.
6. Follow the procedure in after working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the
SD memory card.
3. Remove the base cover.
4. Remove the battery
.
5. Remove the WLAN.
6. Remove the Memory.
7. Remove the
SSD.
8. Remove the system fan.
9. Remove the
heatsink.
10. Remove the display assembly.
Steps

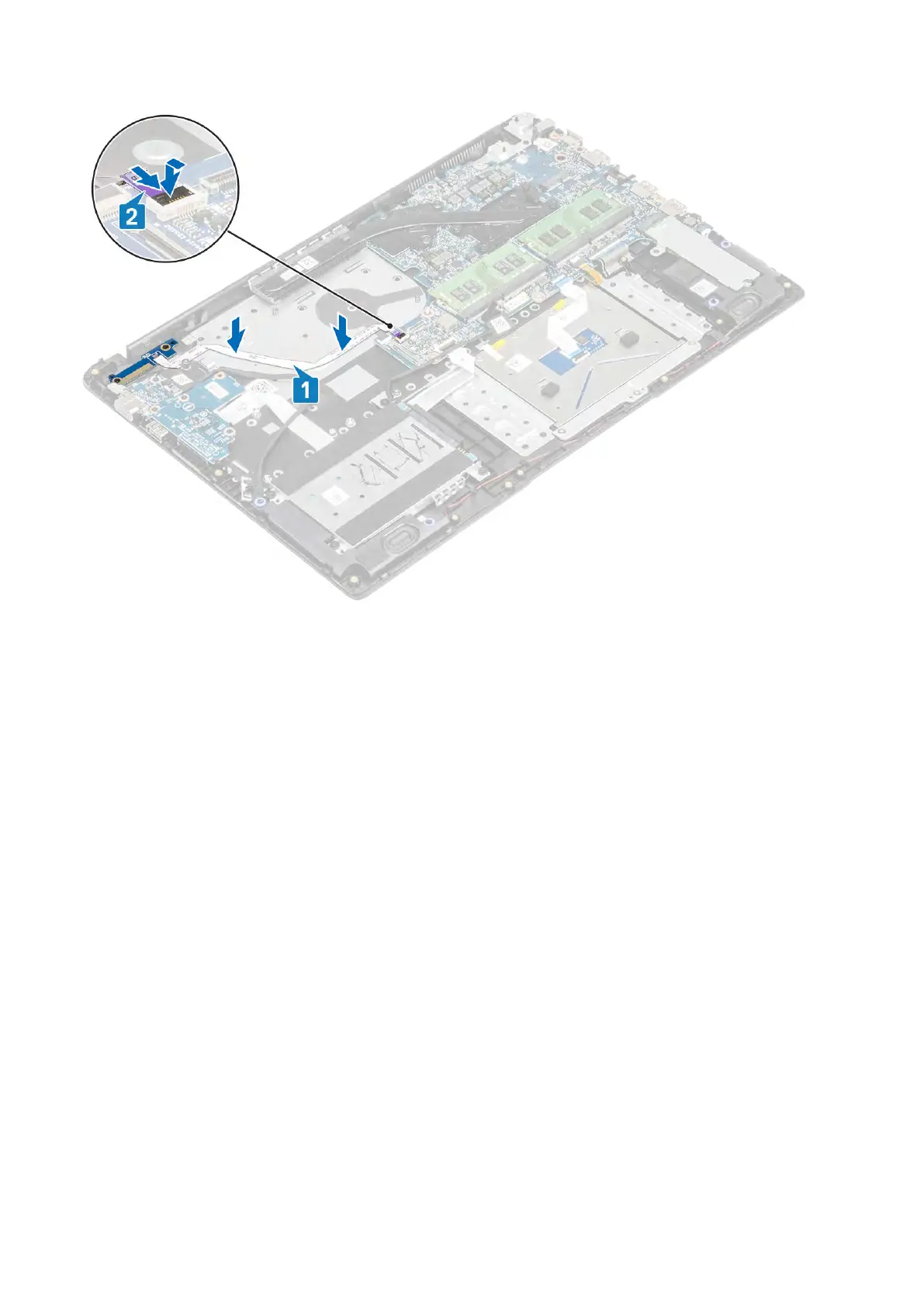

1. Disconnect the following cables from the system board:
Removing and installing components 73
