Next steps
1. Replace the display assembly.
2. Replace the heatsink.
3. Replace the system fan.
4. Replace the SSD.
5. Replace the Memory.
6. Replace the WLAN.
7. Replace the battery.
8. Replace the base cover.
9. Replace the SD memory card.
10. Follow the procedure in after working inside your computer
.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the
SD memory card.
3. Remove the base cover.
4. Remove the
battery.
5. Remove the WLAN.
Steps

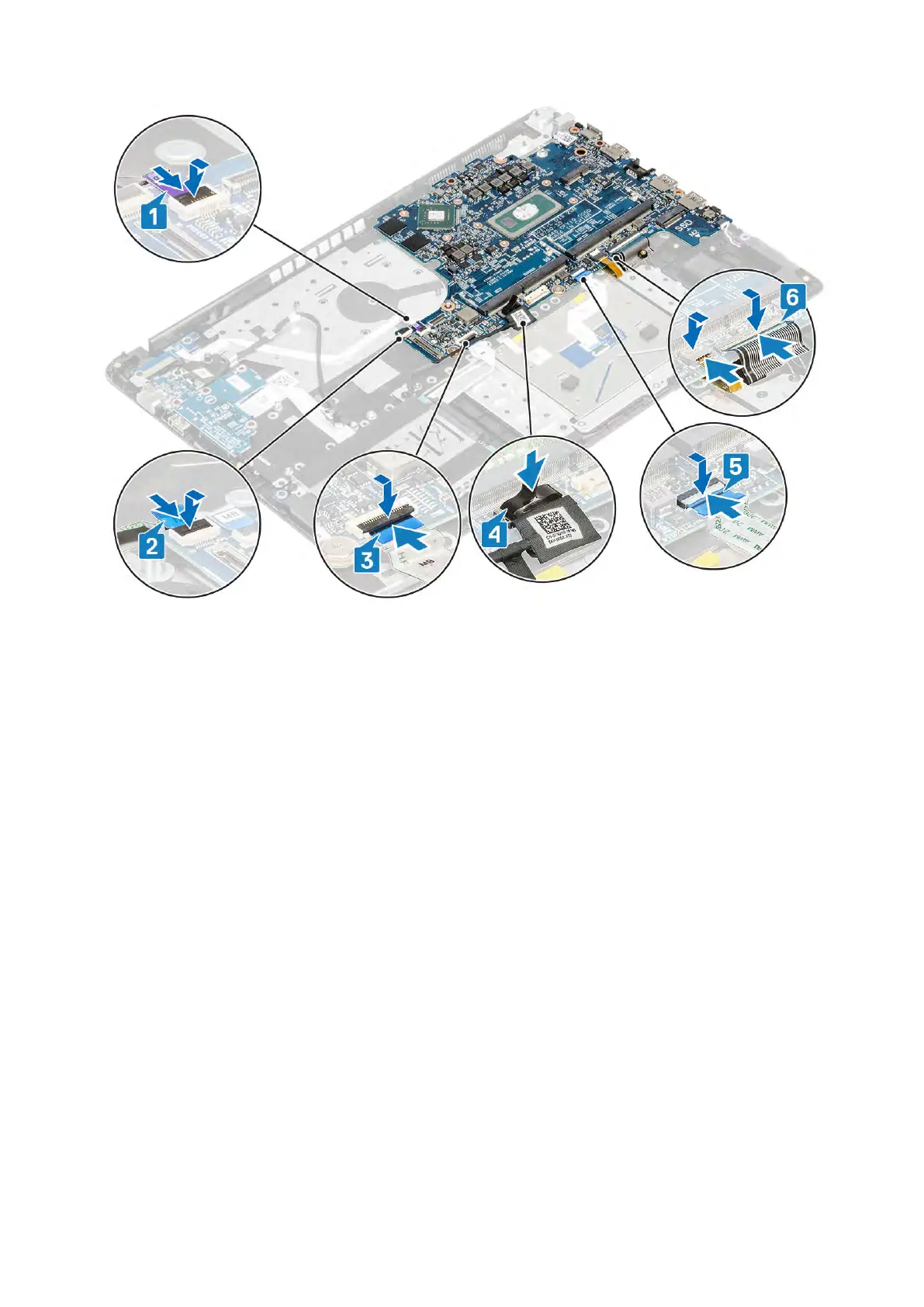

1. Peel off the tape securing the wireless antenna, and disconnect the antennas from the system board [1].
2. Disconnect the display cable from the connector on the system board [2, 3].
Removing and installing components 79
