Installing System Components

Recommended Tools

You may need the following items to perform the procedures in this section:

• Key to the system keylock

• #2 Phillips screwdriver

• T10 and T15 Torx screwdrivers

• Wrist grounding strap connected to ground

Following tools are required for assembling cables for a DC power supply unit (PSU), when available:

• AMP 90871-1 hand-crimping tool or equivalent

• Wire-stripper pliers capable of removing insulation from size 10 AWG solid or stranded, insulated copper wire

NOTE: Use alpha wire part number 3080 or equivalent (65/30 stranding).

Front Bezel (Optional)

Removing The Front Bezel

1. Unlock the keylock at the left end of the bezel.

2. Lift the release latch next to the keylock.

3. Rotate the left end of the bezel away from the front panel.

4. Unhook the right end of the bezel and pull the bezel away from the system.

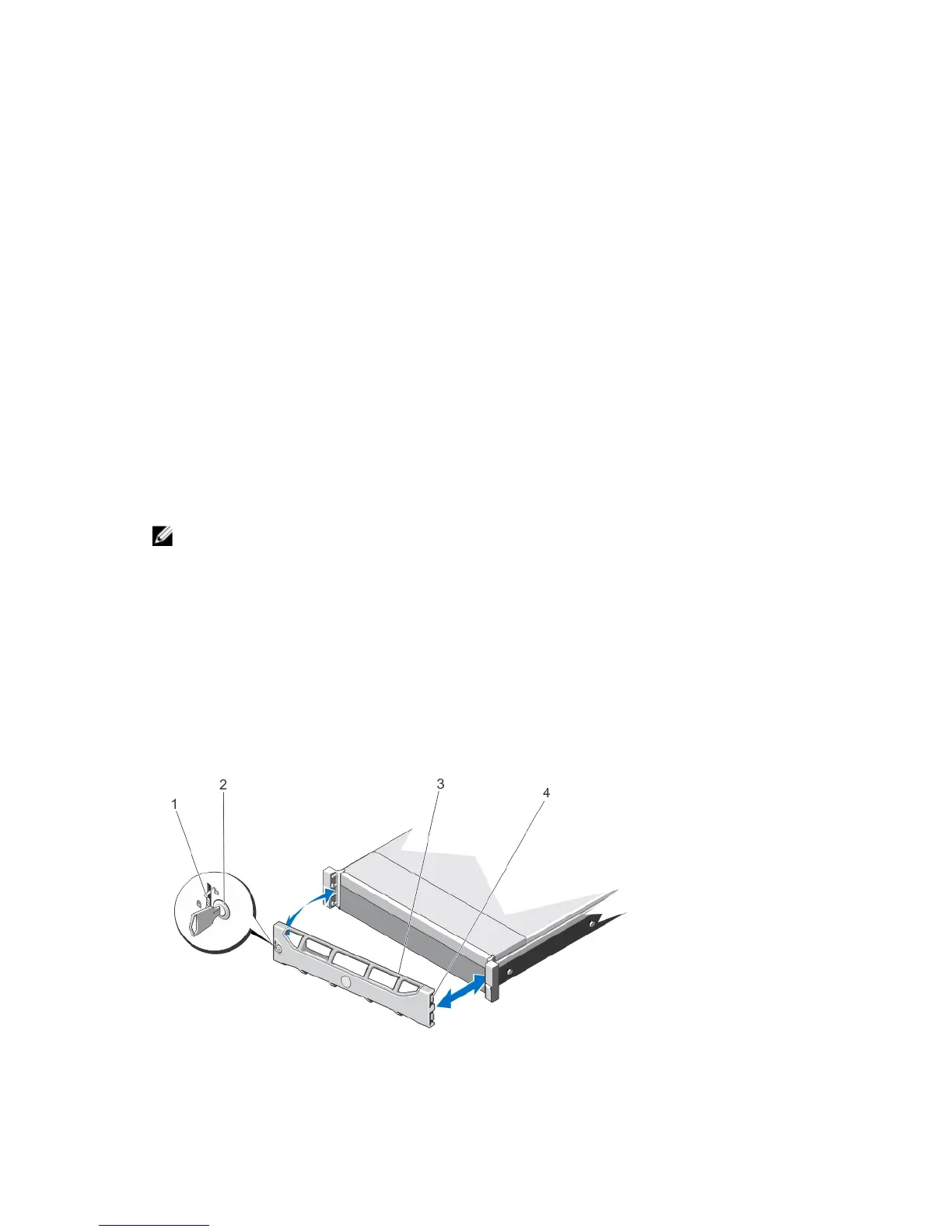

Figure 12. Removing and Installing the Front Bezel
