Dell PowerEdge R320 Planning, Installation And Service Guide

Chapter 3 - Installation
Height option Part Part number Tab number
1U Blank front panel
Air duct baffle
51201248
51303521
-100
-100
2U Blank front panel
Air duct baffle
51201248
51303521
-200
-200
3U Blank front panel
Air duct baffle
51201248
51303521
-300
-300
4U Blank front panel
Air duct baffle
51201248
51303521
-400
-400
3.4 Installing the server and connecting the cables
This section describes the procedures for installing and cabling the server in a one-meter deep
Honeywell cabinet with model number MP-C1MCB1. This procedure assumes that a new one-meter
deep equipment cabinet, Honeywell model number MP-C1MCB1, was shipped from the Honeywell
factory with pre-assembled “Sliding Ready Rails”. The Sliding Ready Rails II kit and 1U Cable
Management Arm kit are included with the purchase of Honeywell part number 51155539-100 (Model
No. MZ-PCSV82).
l Honeywell server back panel connections
l Installing the server
l Connecting the cables
l Install air duct baffles and blank panel front covers in cabinet
3.4.1 Honeywell server back panel connections

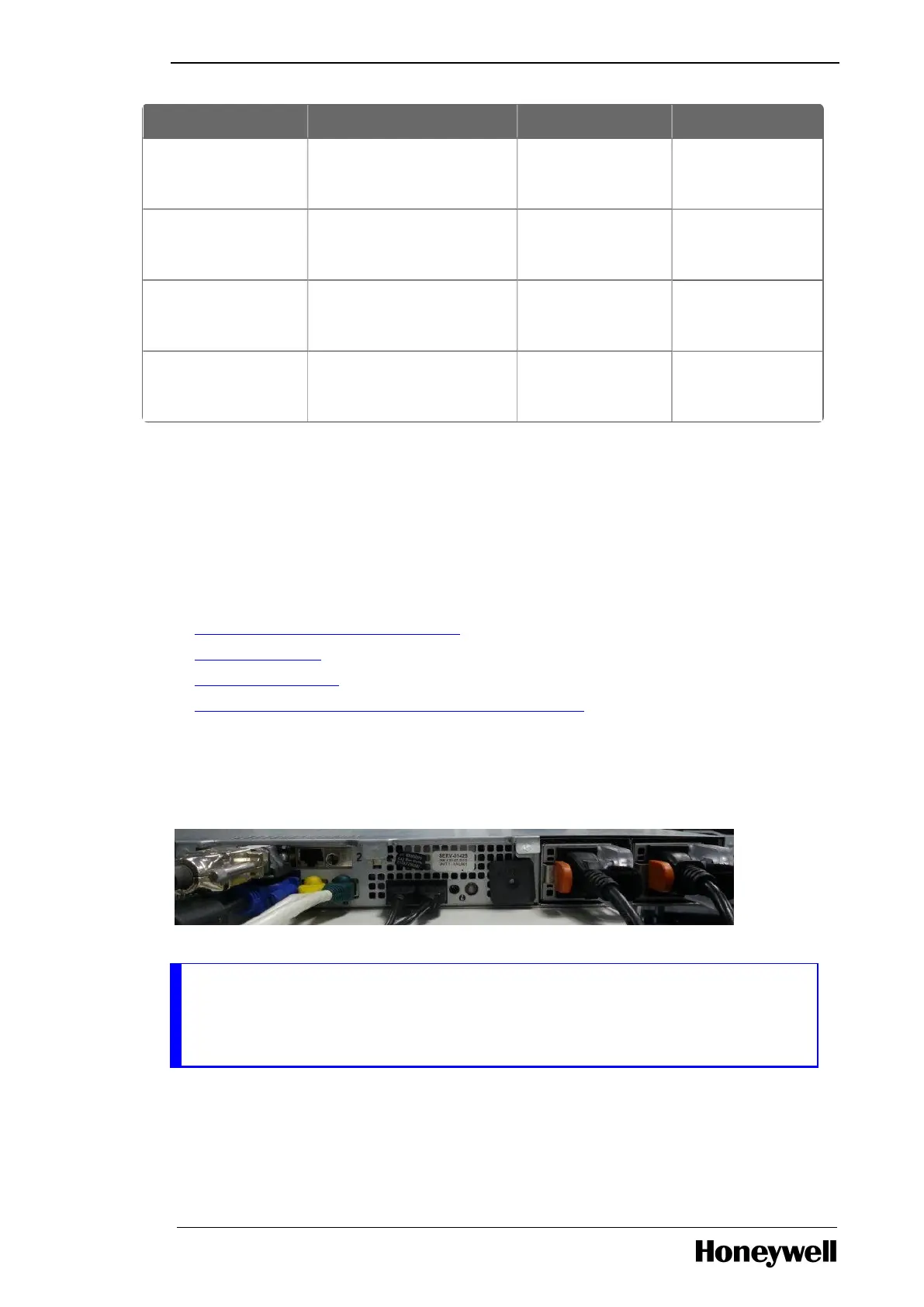

The figure in this section illustrates the back panel of the server and identifies the connectors for all
devices. It also shows an LCNP4E card installed. Your configuration may not include these cards.
NOTE
The photo shows the MAU connector attached to the server back panel. The LCN MAU is not
used when the LCN is integrated with an ELCN.
3.4.2 Installing the server
To install the server
- 31 -

Dell PowerEdge R320 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LS
Processor cache	10 MB
Processor cores	4
Processor model	E5-2403
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
HDD interface	Serial ATA
Optical drive type	DVD-RW
Total storage capacity	2000 GB
Maximum storage capacity	16 TB
Number of HDDs installed	2
Memory slots	6x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	96 GB
Cabling technology	10/100/1000Base-T(X)
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Power supply	350 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	64615
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
