Dell PowerEdge R320 Planning, Installation And Service Guide

Chapter 4 - Operation
ATTENTION

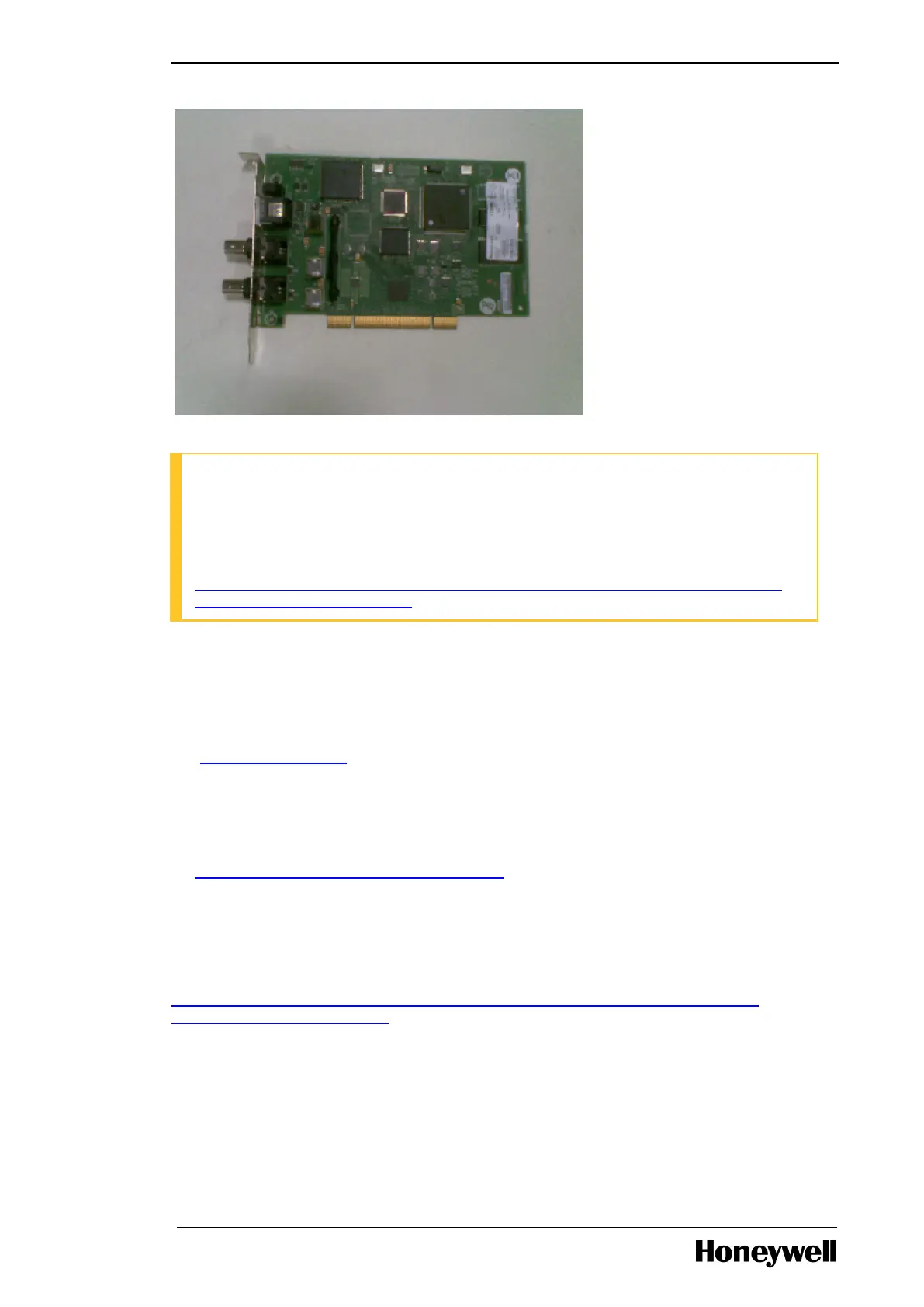

TC-PCIC02: Controlnet Network interface can be connected toDell PowerEdge R320
serverusing Magma PCIe to PCI converter. For more information on “How to connect using
Magma Converter” refer to the Magma PE3R Installation Instructions available at the following
Honeywell Process Solutions support website.
https://www.honeywellprocess.com/library/support/Documents/Experion/Magma_Installation_
Instructions_HWDOC-X279-en.pdf
4.3 Configuring ControlNet interface card
You can configure a ControlNet interface card using the Magma PE3R PCie to PCI converter box.
1. For more information on the Magma PE3R PCie to PCI converter box, log into
honeywellprocess.com.
2. Enter your user name and password.
3. Go to the Product Support section.
4. Search for Magma PE3R instructions.
l Installing ControlNet card inside Magma chassis
4.3.1 Installing ControlNet card inside Magma chassis
Refer to the Magma PE3R Installation Instruction available at the following Honeywell Process
Solutions support website before installing the third party hardware cards inside Magma chassis.
https://www.honeywellprocess.com/library/support/Documents/Experion/Magma_Installation_
Instructions_HWDOC-X279-en.pdf.
- 42 -

Dell PowerEdge R320 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LS
Processor cache	10 MB
Processor cores	4
Processor model	E5-2403
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD capacity	1000 GB
HDD interface	Serial ATA
Optical drive type	DVD-RW
Total storage capacity	2000 GB
Maximum storage capacity	16 TB
Number of HDDs installed	2
Memory slots	6x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	96 GB
Cabling technology	10/100/1000Base-T(X)
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Power supply	350 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	64615
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
