6.5 Acoustics
The PowerEdge R410 has balanced acoustic and thermal performance. Thermal has to support a fully-
configured system with Intel 5500-EP 95 W processor. The acoustic goal is driving to meet Dell
Acoustic spec AC0142 Rev.A02 category II-D requirement.
This was accomplished by using an aluminum base passive heat sink with two embedded heat pipes
for the processor cooling and four 40x56mm dual-rotor fans exhausting air through heat sink and out of
the system. In SKU2 (RDN PSU SKU), there are two extra 40X56mm dual-rotor fans in the front of PDB
for redundant power supply cooling.
The 40x56mm dual-rotor fan has an external PWM speed control, and it’s integrated into MB and PDB.
The thermal sensor on front control board senses the ambient temperature and adjusts the fan speed
accordingly. In a normal office environment, the fans spin slower, resulting in low acoustics. The fan
RPM begins to ramp up with ambient, CPU, IOH, and DIMM temperatures, CPU Temperature and
different system configuration (e.g. Different CPU and RAID card installation), to satisfy cooling
requirements at higher ambient temperatures.

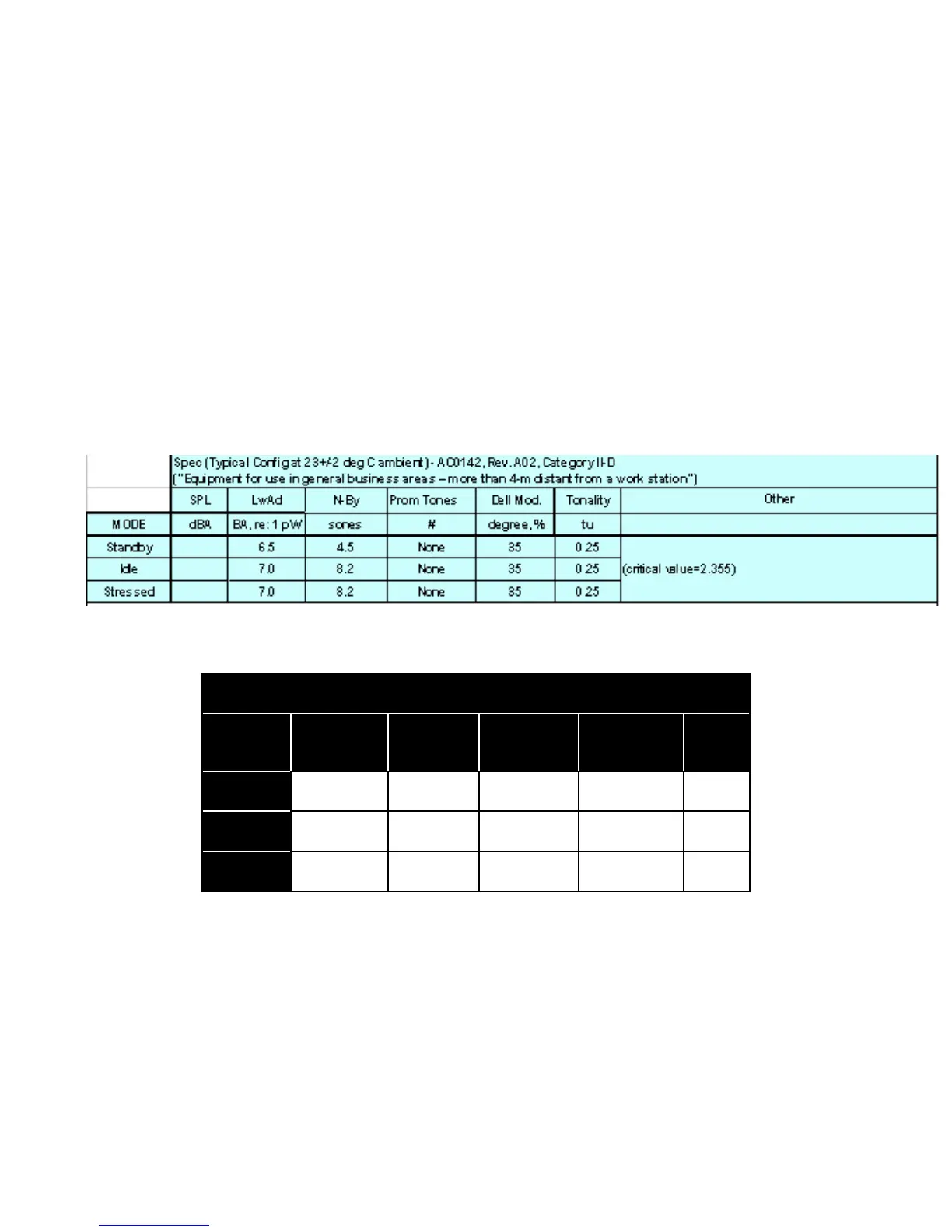

Table 12. Standard Acoustic Spec
Table 13. R410 Actual Test Results
Acoustic Metrics – The PowerEdge R410 Typical Configuration at 23C
Mode
Loudness
(Sone)
Tonality
(tu)
Prominent
Ratio
Modulation
(%)
LwAd
Standby
0 0 None 15% TBD
Idle
3.0 0.23 None 33% TBD
Stress
3.0 0.24 None 33% TBD

Dell PowerEdge R410 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF9
Processor cache	4 MB
Processor cores	4
Processor model	E5504
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	15
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	3.5 \
HDD capacity	250 GB
Optical drive type	DVD-ROM
Total storage capacity	500 GB
Maximum storage capacity	8 TB
Memory slots	8x DIMM
Internal memory	8 GB
Memory clock speed	1066 MHz
Internal memory type	-
Maximum internal memory	128 GB
Memory layout (slots x size)	4 x 2 GB
Maximum graphics card memory	8 MB
Graphics card	G200eW
Networking features	Gigabit Ethernet
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	480 W
Compatible operating systems	Microsoft SQL Server 2008 R2/Windows Small Business Server 2008/Essential Business Server 2008/Server 2008 SP2, x86/x64/Server 2008 R2/HPC Server 2008; Novell SUSE Linux Enterprise Server; Red Hat Enterprise Linux.
Chassis type	Rack (1U)
Processor ARK ID	40711

Weight and Dimensions

Depth	430 mm
Width	630 mm
Height	40 mm
