Dell PowerEdge R410 Technical Guidebook

PowerEdge R410 Technical Guidebook
33
Dell
Cabled/Hot
Swap
Configuration
Type
Configurations Description
Min
HDD
Max
HDD
MOD
Hot-Swap
Mix SAS and
SATA – No
RAID
C1
4
ASS-X
Add-in SAS/SATA
RAID card, No RAID
(SAS 6/iR)
2xSAS +
1xSATA
2xSAS +
2xSATA
W980M
Hot-Swap
Mix SAS and
SATA –
RAID1 +
RAID1
C1
5
ASSR1R1-
X
Add-in SAS/SATA
RAID card, RAID 1 +
RAID 1 (SAS 6/iR or
PERC 6/i)
2xSAS +
2xSATA
2xSAS +
2xSATA
C540N
14.4 Storage Controllers
Refer to Section 3.2 “Product Features Summary” and Section 13.2 ”Quantities and Priorities”.
14.5 LED Indicators

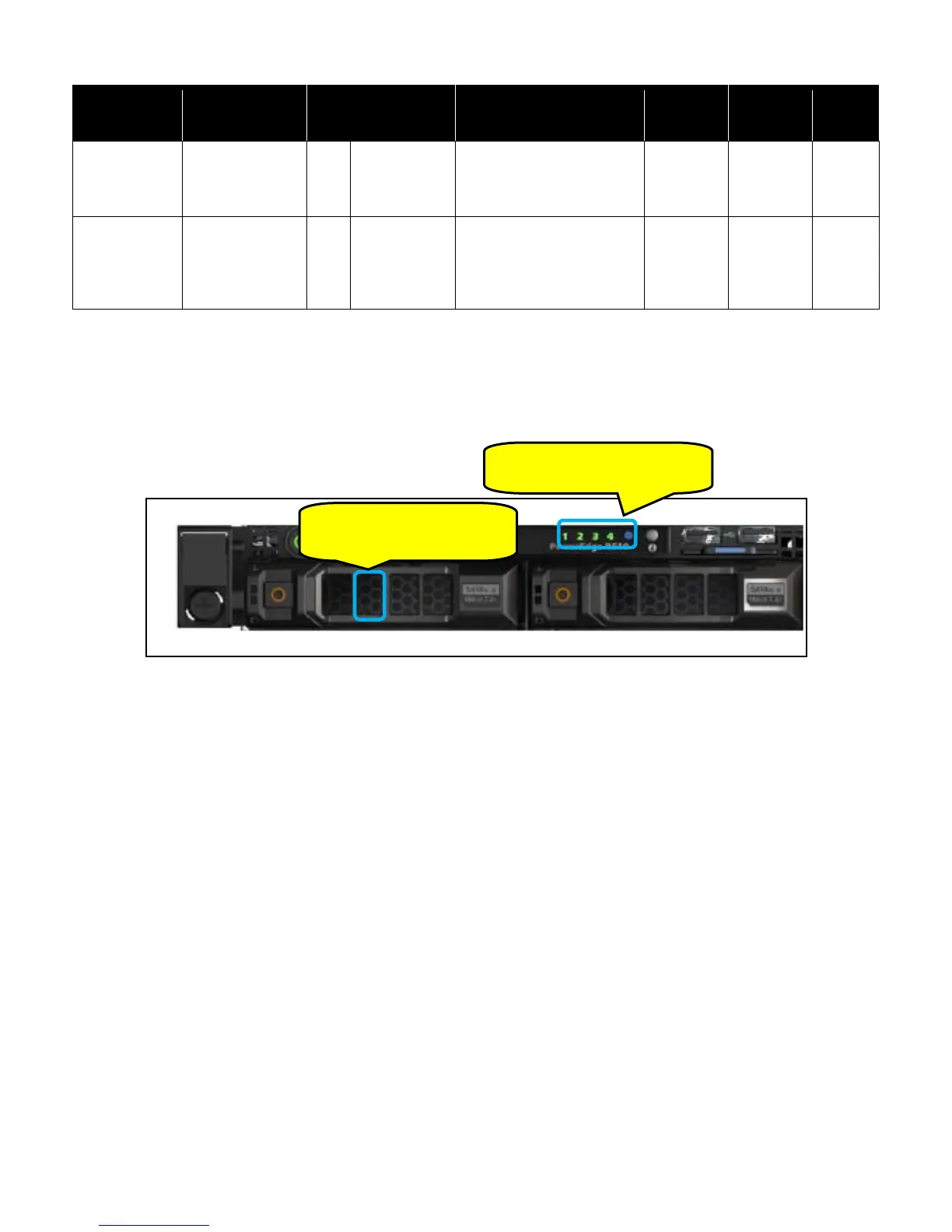

Figure 37. LED Indicators
A green LED located on the system control panel in the front of the enclosure indicates when activity
occurs on any integrated SATA device connected to the on board SATA ports. Using an add-in SAS
6/iR card, the HDD LED is also activated.
14.6 Optical Drives
R410 supports a SATA interface DVD-ROM or DVD+/-RW.
Refer to Section 3.2 “Product Features Summary”.
14.7 Tape Drives
R410 does not support an internal backup device. Only external backup device is supported.
Refer to Section 3.2 “Product Features Summary” for the supported devices.
LED indicator for cabled
HDD configuration
LED indicator for hot-
swap HDD configuration

Dell PowerEdge R410 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF9
Processor cache	4 MB
Processor cores	4
Processor model	E5504
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5500
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	15
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	3.5 \
HDD capacity	250 GB
Optical drive type	DVD-ROM
Total storage capacity	500 GB
Maximum storage capacity	8 TB
Memory slots	8x DIMM
Internal memory	8 GB
Memory clock speed	1066 MHz
Internal memory type	-
Maximum internal memory	128 GB
Memory layout (slots x size)	4 x 2 GB
Maximum graphics card memory	8 MB
Graphics card	G200eW
Networking features	Gigabit Ethernet
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	480 W
Compatible operating systems	Microsoft SQL Server 2008 R2/Windows Small Business Server 2008/Essential Business Server 2008/Server 2008 SP2, x86/x64/Server 2008 R2/HPC Server 2008; Novell SUSE Linux Enterprise Server; Red Hat Enterprise Linux.
Chassis type	Rack (1U)
Processor ARK ID	40711

Weight and Dimensions

Depth	430 mm
Width	630 mm
Height	40 mm
