Dell PowerEdge R910 Technical Guide

Dell
Dell PowerEdge R910 Technical Guide 15
4.4 Back Panel View and Features

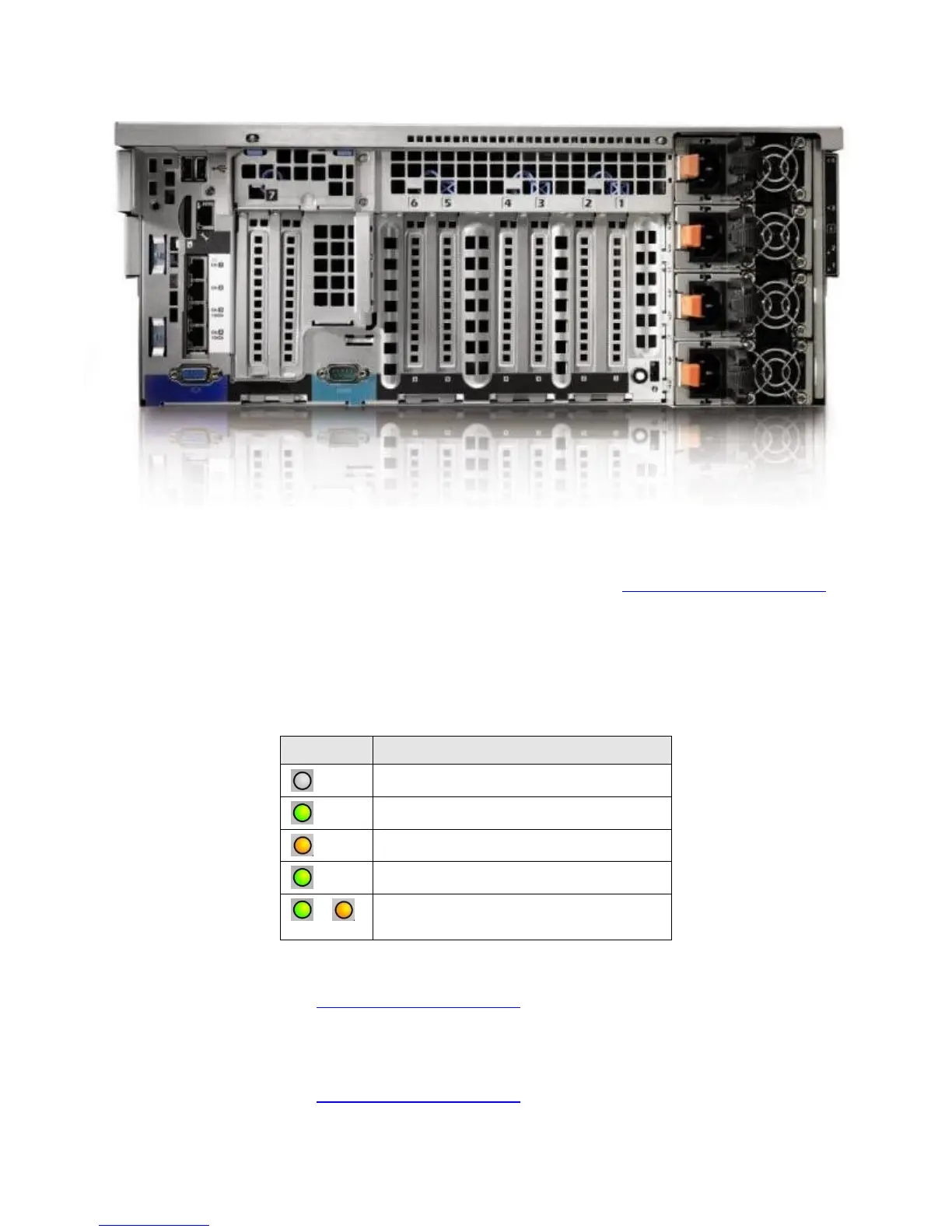

Figure 3. Back Panel View
For detailed information, see the Back-Panel Features and Indicators section in the About Your
System chapter of the PowerEdge R910 Hardware Owner’s Manual on Support.Dell.com/Manuals.
4.5 Power Supply Indicators
The PowerEdge R910 redundant power supplies have one status bi-color LED: green for AC power
present and amber for a fault as detailed in Table 3.
Table 3. Power Supply Status
LED
Power Supply Status
AC Power is not present
AC Power is present
Fault of any kind is detected
DC Power is applied to the system
↔
Redundant power supply mismatch
(when hot-plugged/swapped)
See the Power Indicator Codes section in the About Your System chapter of the PowerEdge R910
Hardware Owner’s Manual on Support.Dell.com/Manuals for more information.
4.6 NIC Indicators
See the NIC Indicator Codes section in the About Your System chapter of the PowerEdge R910
Hardware Owner’s Manual on Support.Dell.com/Manuals for more information.

Dell PowerEdge R910 Specifications

General

Processor	Up to four Intel Xeon 7500 series processors
Form Factor	4U Rack Server
Storage	Up to 16 x 2.5" SAS, SATA, or SSD drives
RAID Controller	PERC H700, PERC H800
Network	Embedded Broadcom 5709c Gigabit Ethernet
Power Supply	Redundant 1100W power supplies
Expansion Slots	10 PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Memory	Up to 1TB DDR3 (64 DIMM slots)
