Dell
Dell PowerEdge R910 Technical Guide 43

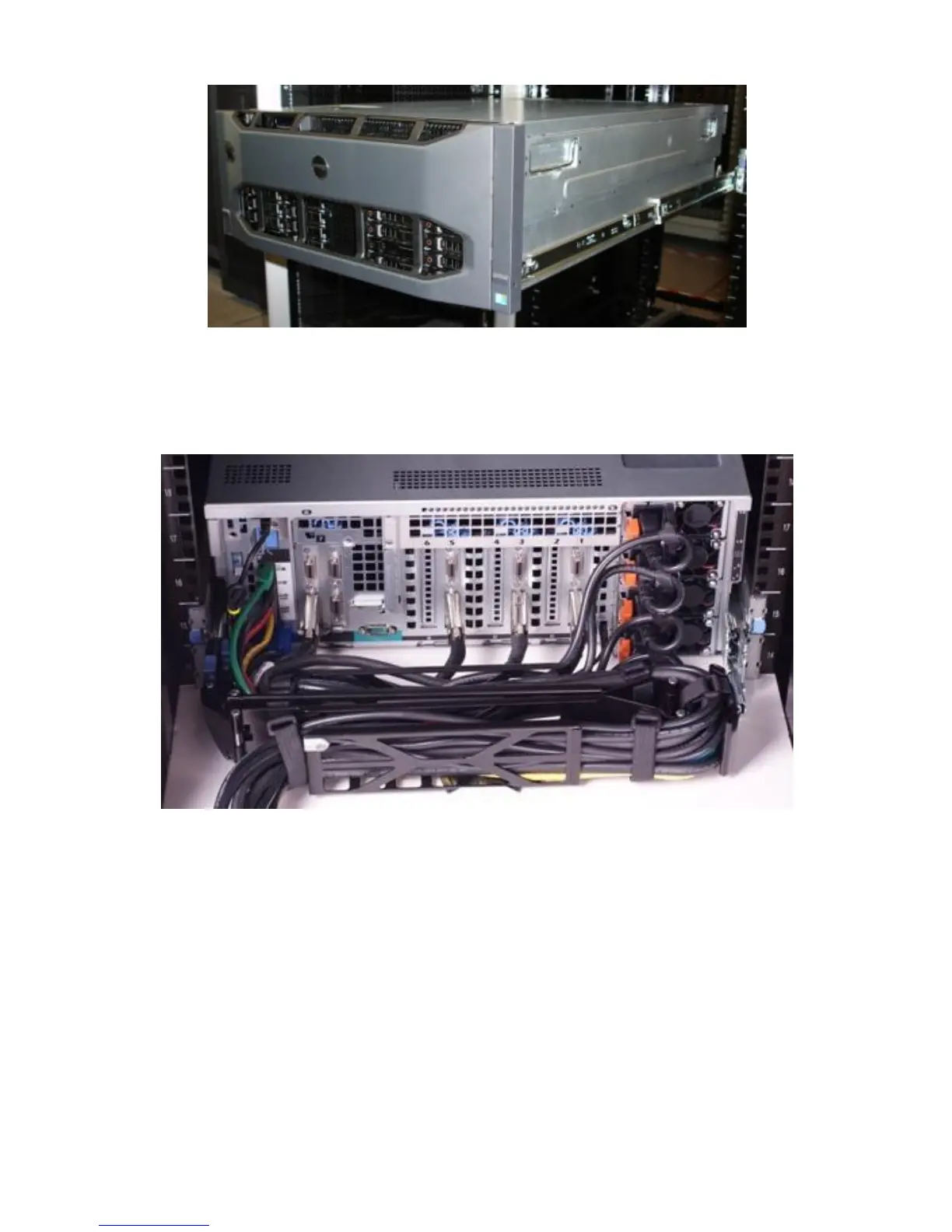

Figure 7. R910 Mounted in the B2 Sliding Rails
The R910 CMA can be mounted to either side of the rails without the use of tools or the need for
conversion, but it is recommended that it be mounted on the side opposite the power supplies to
allow easier access to the power supplies for service or replacement.
Figure 8. R910 CMA Mounted on the Side Opposite the Power Supplies (Recommended)

Table of Contents

Other manuals for Dell PowerEdge R910

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell PowerEdge R910 and is the answer not in the manual?

Dell PowerEdge R910 Specifications

General IconGeneral
ProcessorUp to four Intel Xeon 7500 series processors
Form Factor4U Rack Server
StorageUp to 16 x 2.5" SAS, SATA, or SSD drives
RAID ControllerPERC H700, PERC H800
NetworkEmbedded Broadcom 5709c Gigabit Ethernet
Power SupplyRedundant 1100W power supplies
Expansion Slots10 PCIe slots
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
MemoryUp to 1TB DDR3 (64 DIMM slots)
