Dell PowerEdge R910 Technical Guide 35

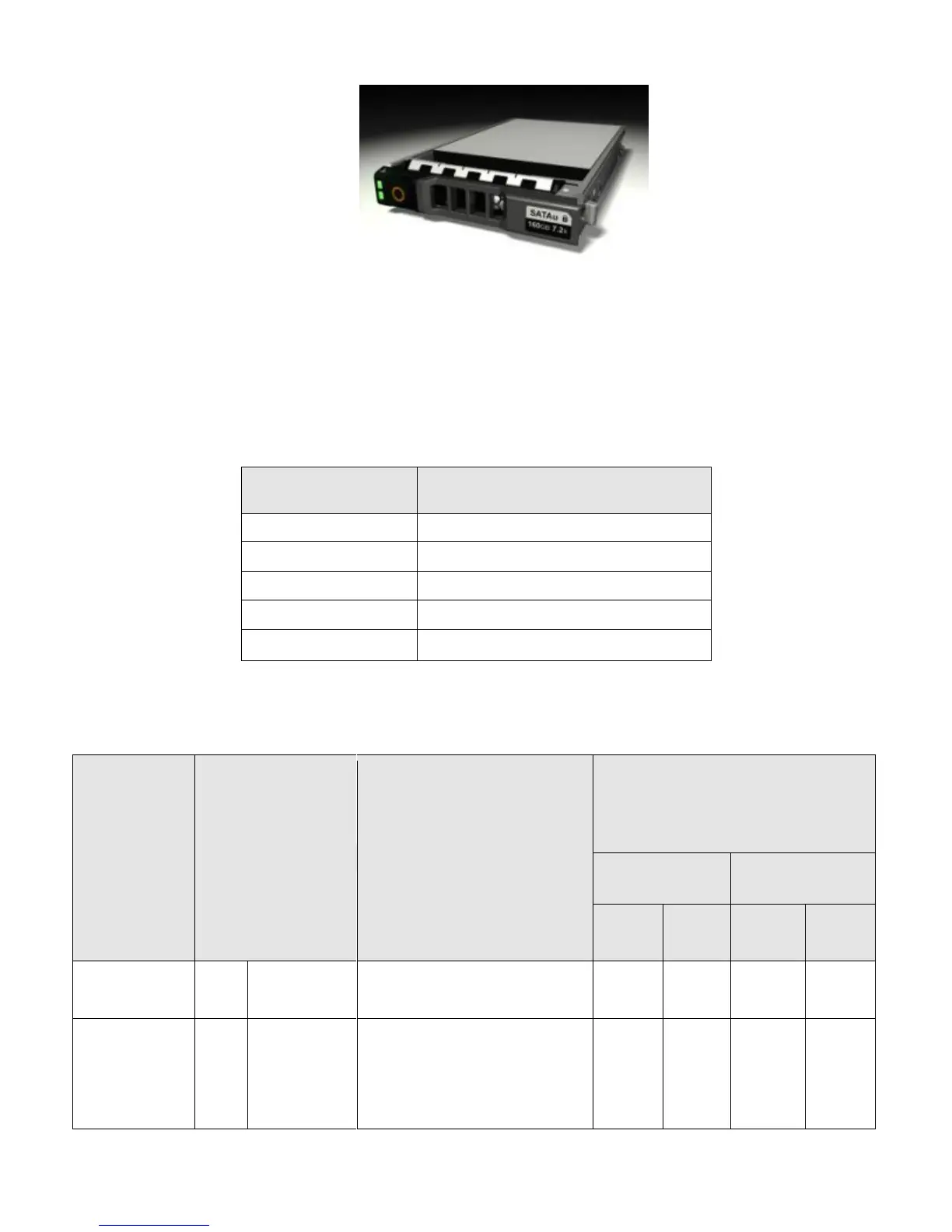

Figure 5. 2.5” Hard Drive Carrier
Each hard drive carrier has two LED indicators visible from the front of the system. One is a green
LED for disk activity and the other is a bicolor (green/amber) LED for status information. The activity
LED is driven by the disk drive during normal operation. The bicolor LED is controlled by the SEP
device on the backplane. Both LEDs are used to indicate certain conditions under direction of a
storage controller.
Table 11. Supported Hard Drives
Hard Drive Type
(2.5”)
Capacities
SAS
73GB, 146GB, 300GB, 600GB, 900GB
SATA
1TB
SATA SSD
50GB, 100GB
SAS SSD
149GB
Nearline SAS
500GB, 1TB
12.5 RAID Configurations
Table 12. RAID Configurations
Configuration
Type
Configuration
Description
Non-mixed drives (all SATA HDD,
all SAS HDD, or all SATA SSD or all
SAS SSD)
2.5” Drives
x4 Backplane
x16 Backplane
Min
Drives
Max
Drives
Config
Type
Max
Drives
Diskless
Configuration
C0
NCZ
Diskless Configuration
0
0
X
X
SAS/SATA/
SATA SSD/SAS
SSD—No RAID
C1
MSS
Integrated SAS/SATA/SSD No
RAID (PERC H200, PERC H700)
1
4
X
X

Dell PowerEdge R910 Specifications

General

Processor	Up to four Intel Xeon 7500 series processors
Form Factor	4U Rack Server
Storage	Up to 16 x 2.5" SAS, SATA, or SSD drives
RAID Controller	PERC H700, PERC H800
Network	Embedded Broadcom 5709c Gigabit Ethernet
Power Supply	Redundant 1100W power supplies
Expansion Slots	10 PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Memory	Up to 1TB DDR3 (64 DIMM slots)
