Dell PowerEdge R910 Technical Guide 41
14 Rack Information
14.1 Overview
The ReadyRails™ sliding rail system for the Dell™ PowerEdge™ R910 provides tool-less support for
racks with square or unthreaded round mounting holes including all generations of Dell racks. The
optional cable management arm (CMA) can be mounted on either the left or right side of the sliding
rails without the use of tools for fast and easy deployment.
Important notes:
The R910 is not compatible with any other Dell rails including previous generation rails, but it
does use the same rails as the R810 and R815.
The R910 supports sliding rails only. Static rails are not supported.
Threaded hole racks require Dell’s fixed shelf or adapter brackets available from Rack
Solutions.
The CMA is not supported on racks that are less than 1m in depth including Dell’s 4200 and
2400 racks.
14.2 Rails
The ReadyRails sliding rails for the R910 support tool-less mounting in 19”-wide, EIA-310-E compliant
square hole and unthreaded round hole racks and are available with or without the optional cable
management arm (CMA).

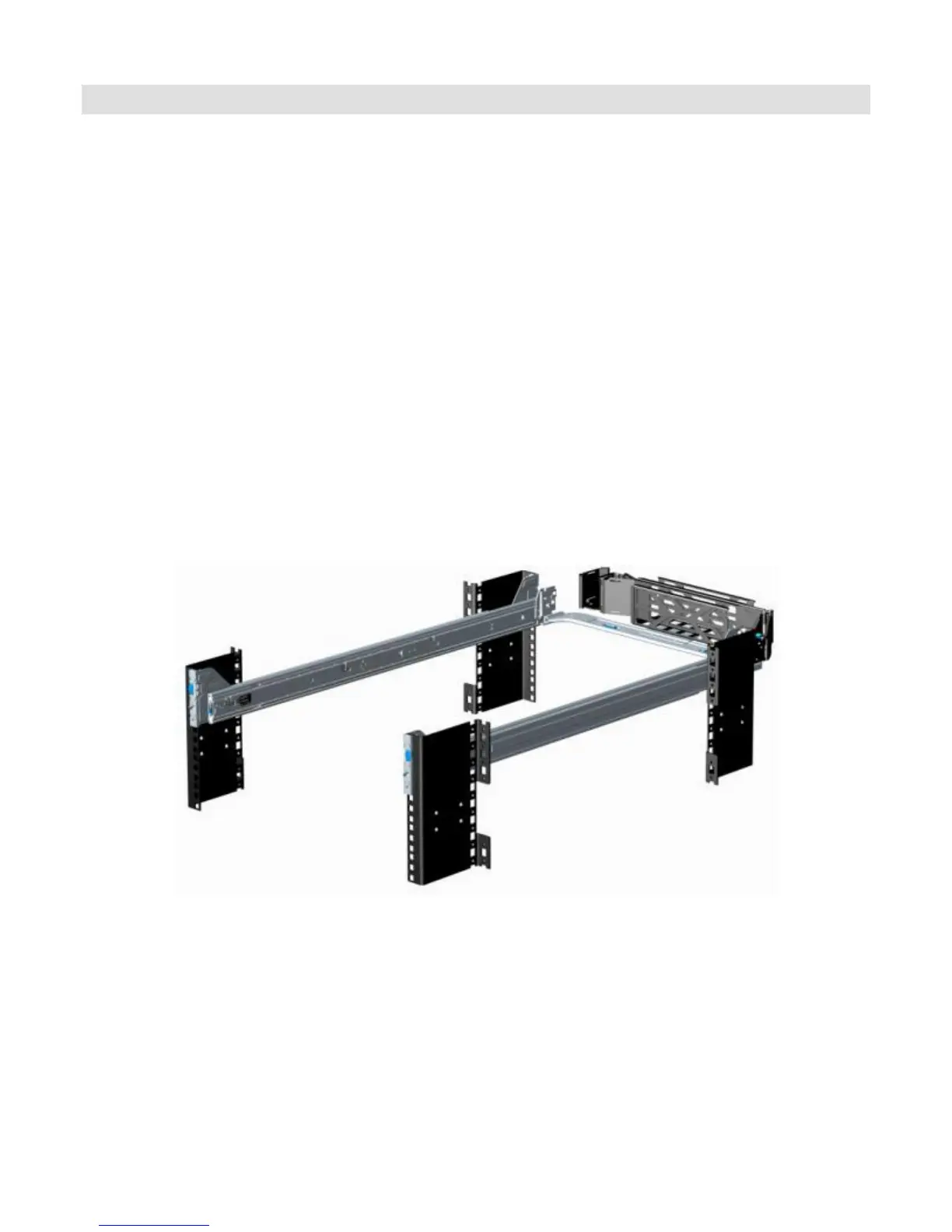

Figure 6. ReadyRails Sliding Rails with Optional CMA
As noted below, the R910 rails do not support mounting in threaded hole or 2-post racks*.
