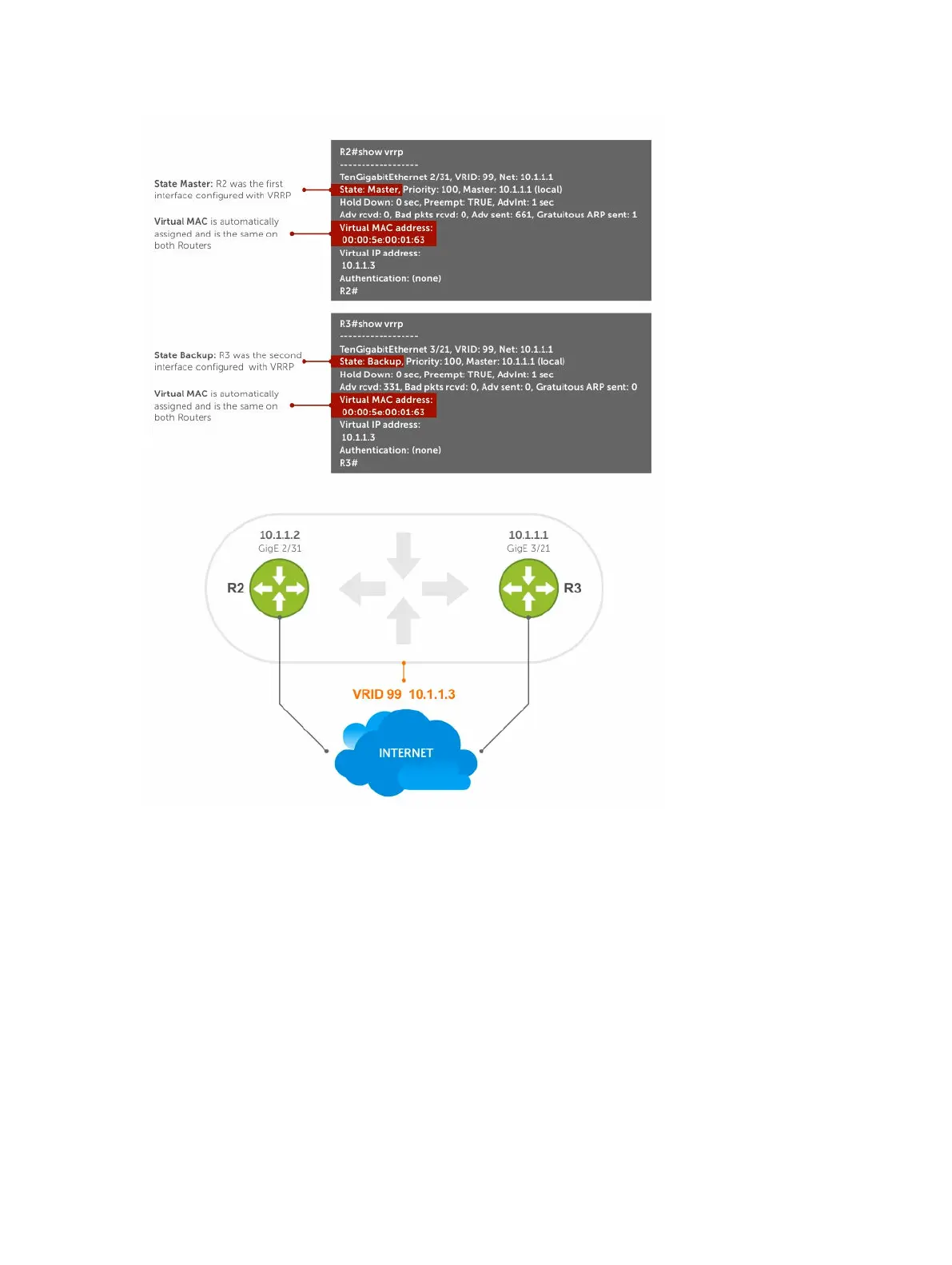

Figure 138. VRRP for IPv4 Topology

Examples of Configuring VRRP for IPv4 and IPv6

The following example shows configuring VRRP for IPv4 Router 2.

R2(conf)#interface tengigabitethernet 2/31

R2(conf-if-te-2/31)#ip address 10.1.1.1/24

R2(conf-if-te-2/31)#vrrp-group 99

R2(conf-if-te-2/31-vrid-99)#priority 200

R2(conf-if-te-2/31-vrid-99)#virtual 10.1.1.3

R2(conf-if-te-2/31-vrid-99)#no shut

R2(conf-if-te-2/31)#show conf

interface TenGigabitEthernet 2/31

ip address 10.1.1.1/24

vrrp-group 99

1134

Virtual Router Redundancy Protocol (VRRP)
