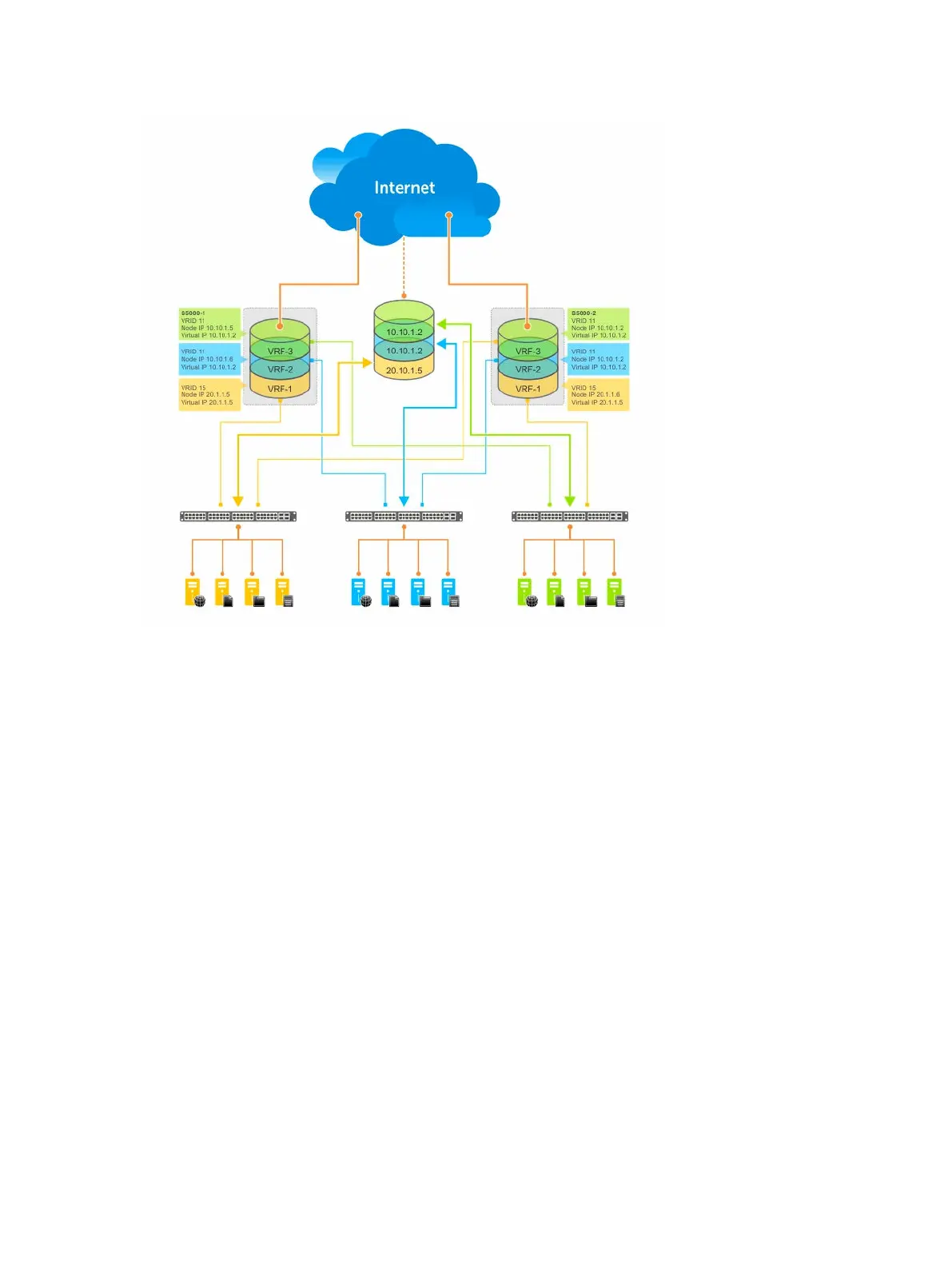

Figure 140. VRRP in a VRF: Non-VLAN Example

Example of Configuring VRRP in a VRF on Switch-1 (Non-VLAN)

Switch-1

S1(conf)#ip vrf default-vrf 0

S1(conf)#ip vrf VRF-1 1

S1(conf)#ip vrf VRF-2 2

S1(conf)#ip vrf VRF-3 3

S1(conf)#interface TenGigabitEthernet 1/1

S1(conf-if-te-1/1)#ip vrf forwarding VRF-1

S1(conf-if-te-1/1)#ip address 10.10.1.5/24

S1(conf-if-te-1/1)#vrrp-group 11

% Info: The VRID used by the VRRP group 11 in VRF 1 will be 177.

S1(conf-if-te-1/1-vrid-101)#priority 100

S1(conf-if-te-1/1-vrid-101)#virtual-address 10.10.1.2

S1(conf-if-te-1/1)#no shutdown

S1(conf)#interface TenGigabitEthernet 1/2

S1(conf-if-te-1/2)#ip vrf forwarding VRF-2

S1(conf-if-te-1/2)#ip address 10.10.1.6/24

S1(conf-if-te-1/2)#vrrp-group 11

% Info: The VRID used by the VRRP group 11 in VRF 2 will be 178.

S1(conf-if-te-1/2-vrid-101)#priority 100

S1(conf-if-te-1/2-vrid-101)#virtual-address 10.10.1.2

S1(conf-if-te-1/2)#no shutdown

Virtual Router Redundancy Protocol (VRRP)

1139
