Dell Studio XPS 8100 User Manual

Back to Contents Page

1

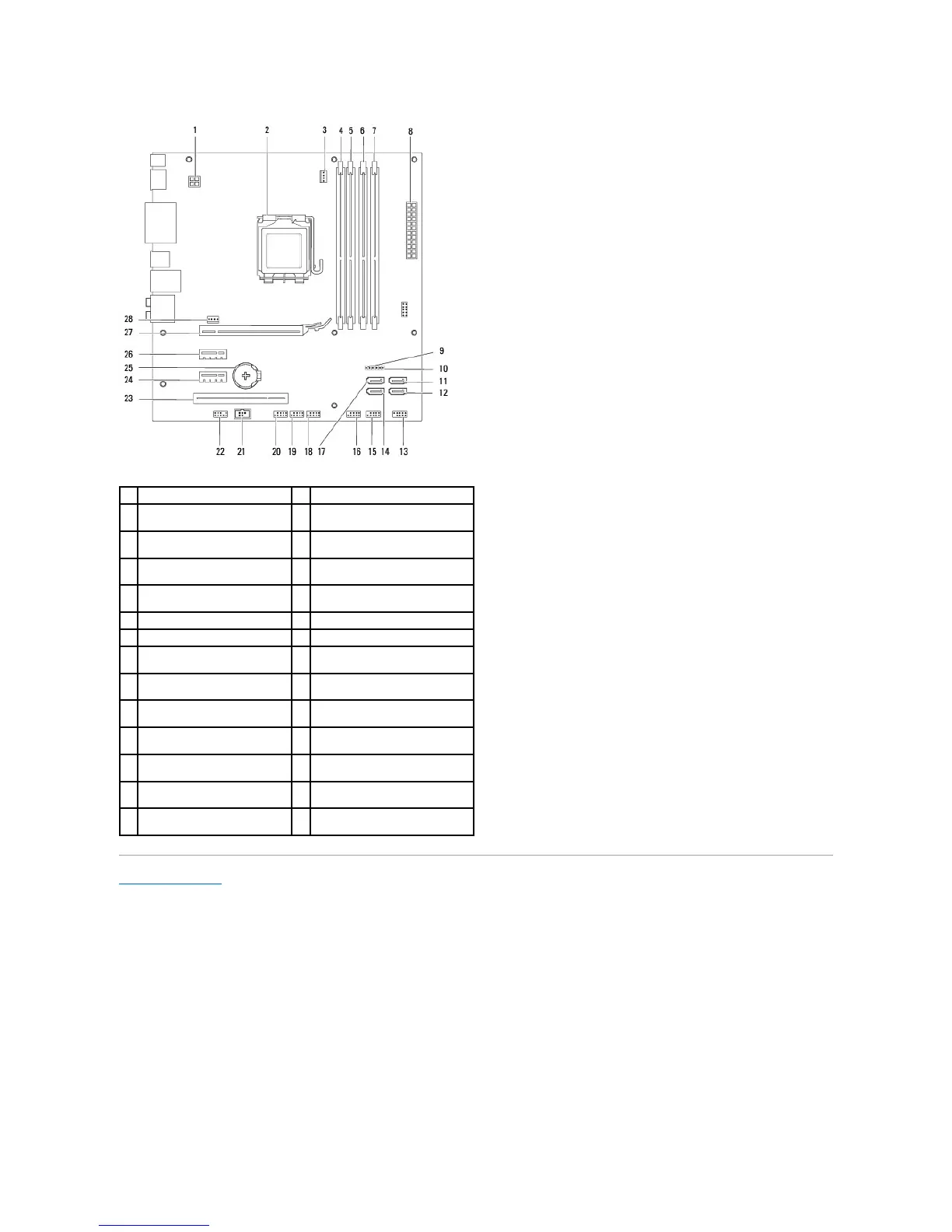

Power connector (PWR2)
2
processor socket
3
processor fan connector
(CPU_FAN1)
4
memory module connector
(DIMM3)
5
memory module connector
(DIMM1)
6
memory module connector
(DIMM4)
7
memory module connector
(DIMM2)
8
main power connector (PWR1)
9
CMOS reset jumper
(CLR_CMOS1)
10
password reset jumper (PSWD1)
11
SATA connector (SATA1)
12
SATA connector (SATA2)
13
power button connector (FP1)
14
SATA connector (SATA4)
15
front panel USB connector
(F_USB1)
16
front panel USB connector
(F_USB2)
17
SATA connector (SATA3)
18
front panel USB connector
(F_USB3)
19
front panel USB connector
(F_USB4)
20
front panel USB connector
(F_USB5)
21
S/PDIF connector (SPDIF_OUT2)
22
front panel audio connector
(F_AUDIO1)
23
PCI card slot (PCI1)
24
PCI Express x1 card slot
(PCI-EX1_1)
25
battery socket (BAT1)
26
PCI Express x1 card slot
(PCI-EX1_2)
27
PCI Express x16 card slot
(PCI-EX16_1)
28
chassis fan connector (sys_fan1)

Dell Studio XPS 8100 Specifications

General

Optical Drive	16x DVD+/-RW Drive
Audio	Integrated 7.1 Channel Audio
Networking	Integrated 10/100/1000 Ethernet
Processor	Intel Core i5 or i7
Chipset	Intel H57
Memory	Up to 16GB DDR3 SDRAM
Storage	Up to 2TB HDD
Graphics	NVIDIA GeForce GT 220 or ATI Radeon HD 5770
Ports	8 x USB 2.0, 1 x eSATA, 1 x HDMI
Operating System	Windows 7 Home Premium
