 Bluetooth Assembly
Dell™StudioXPS™8100ServiceManual
Removing the Bluetooth Assembly
Replacing the Bluetooth Assembly




Removing the Bluetooth Assembly

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the front bezel (see Removing the Front Bezel).

4. Disconnect the Bluetooth®assembly cable from the system board connector (see System Board Components).


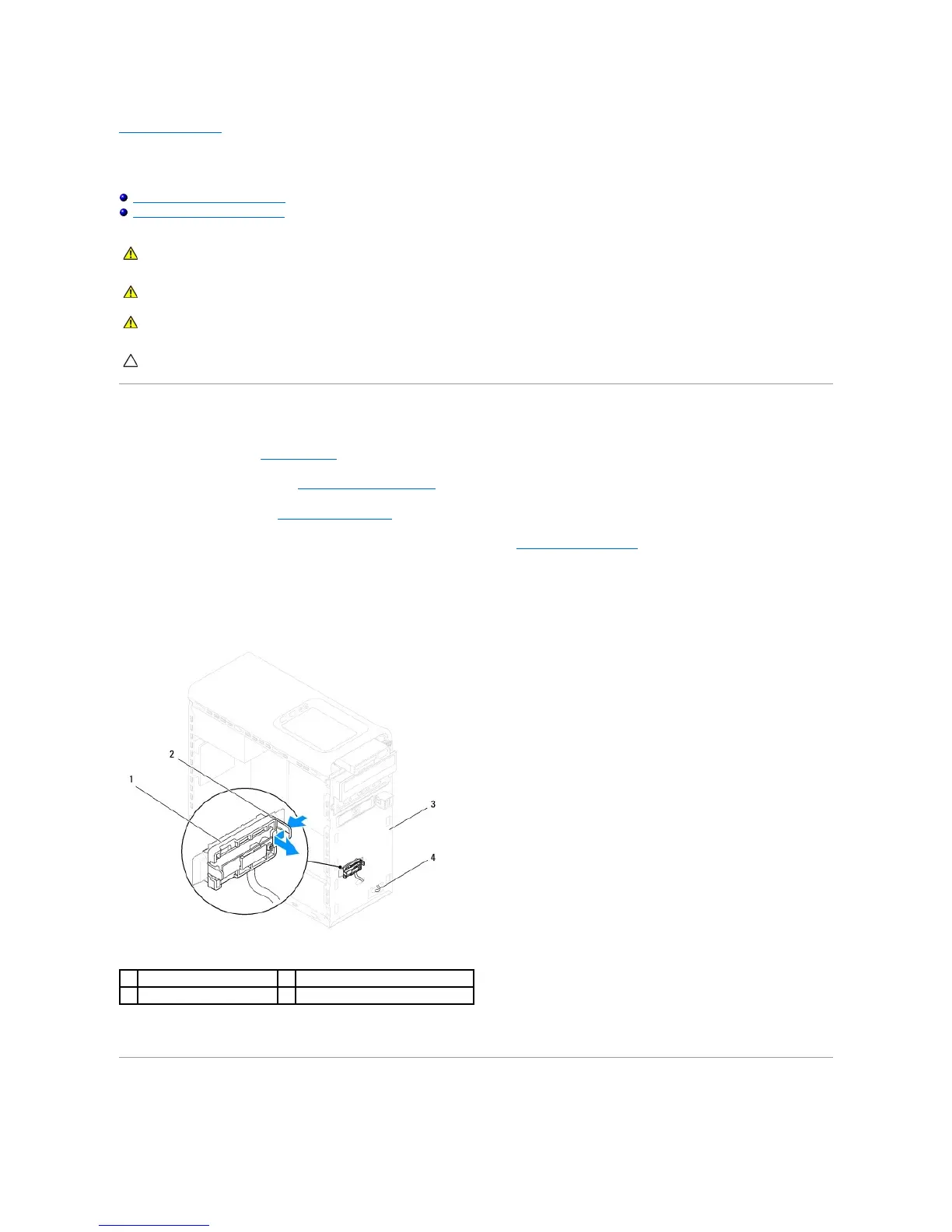

5. Press the tab as shown in the illustration and pull the Bluetooth assembly.

6. Carefully slide and remove the Bluetooth assembly out from the front of the computer.

7. Set the Bluetooth assembly aside in a secure location.
Replacing the Bluetooth Assembly

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
1
Bluetooth assembly
2
Bluetooth assembly tab
3
front panel
4
Bluetooth assembly cable

Dell Studio XPS 8100 Specifications

General

Optical Drive	16x DVD+/-RW Drive
Audio	Integrated 7.1 Channel Audio
Networking	Integrated 10/100/1000 Ethernet
Processor	Intel Core i5 or i7
Chipset	Intel H57
Memory	Up to 16GB DDR3 SDRAM
Storage	Up to 2TB HDD
Graphics	NVIDIA GeForce GT 220 or ATI Radeon HD 5770
Ports	8 x USB 2.0, 1 x eSATA, 1 x HDMI
Operating System	Windows 7 Home Premium
