Dell U3011 Setting Up

8/12
support.dell.com/support/edocs/monitors/u3011/en/ug/about.htm
Pin Number 15-pin Side of the Connected Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GN D
5 Self-test
6 GN D-R
7 GN D-G
8 GN D-B
9 +5V
10 DDC-GN D
11 GN D
12 DDC-SDA
13 H -sync
14 V-sync
15 DDC-SCL

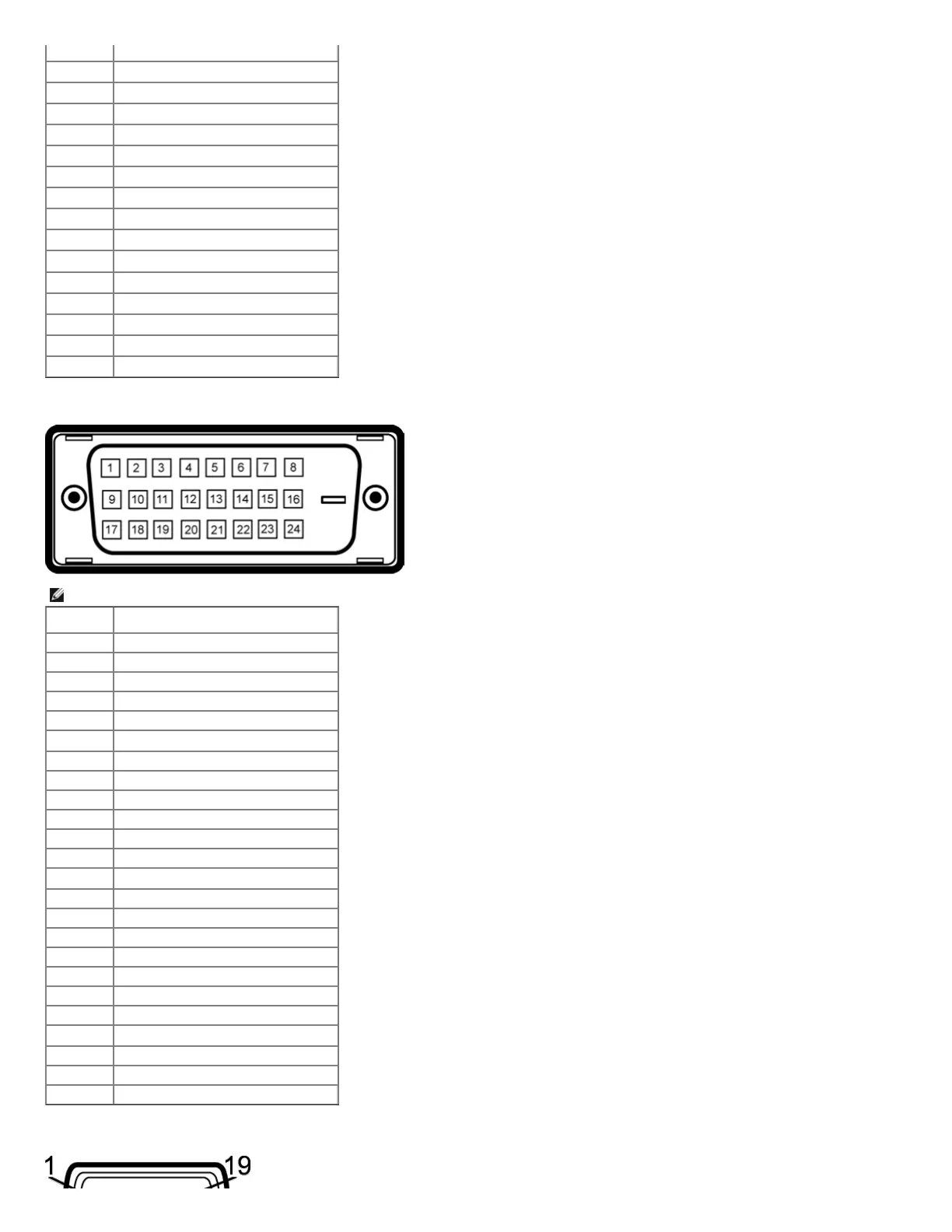

DVI Connector
NOTE: Pin 1 is at the top left.
Pin Number 24-pin Side of the Connected Signal Cable
1 T.M .D.S. Data 2-
2 T.M .D.S. Data 2+
3 T.M .D.S. Data 2/4 Shield
4 T.M .D.S. Data 4-
5 N T.M .D.S. Data 4+
6 DDC Clock
7 DDC Data
8 N o Connect
9 T.M .D.S. Data 1-
10 T.M .D.S. Data 1+
11 T.M .D.S. Data 1/3 Shield
12 T.M .D.S. Data 3-
13 T.M .D.S. Data 3+
14 +5V Power
15 Self Test
16 H ot Plug Detect
17 T.M .D.S. Data 0-
18 T.M .D.S. Data 0+
19 T.M .D.S. Data 0/5 Shield
20 T.M .D.S. Data 5-
21 T.M .D.S. Data 5+
22 T.M .D.S. Clock Shield
23 T.M .D.S. Clock +
24 T.M .D.S. Clock -
20-pin DisplayPort Connector

Dell U3011 Specifications

General

Pixel pitch	0.2505 mm
Aspect ratio	16:10
Display diagonal	30 \
Display resolution	2560 x 1600 pixels
Contrast ratio (dynamic)	100000:1
Display brightness (typical)	370 cd/m²
HDCP	Yes
USB hub version	2.0
DVI-D ports quantity	2
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Input current	2.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	250 W
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	110 W
Product color	Black
Market positioning	Business
Package weight (imperial)	33.76 lbs
Panel mounting interface	100 x 100 mm
Package weight	15300 g
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Non-operating relative humidity (non-condensing)	5 - 90 %

Weight and Dimensions

Depth (without stand)	211.3 mm
Width (without stand)	694.5 mm
Height (without stand)	481.3 mm
Weight (without stand)	9300 g
