NOTE: This monitor has a built-in feature to automatically calibrate the brightness to compensate for CCFL aging.

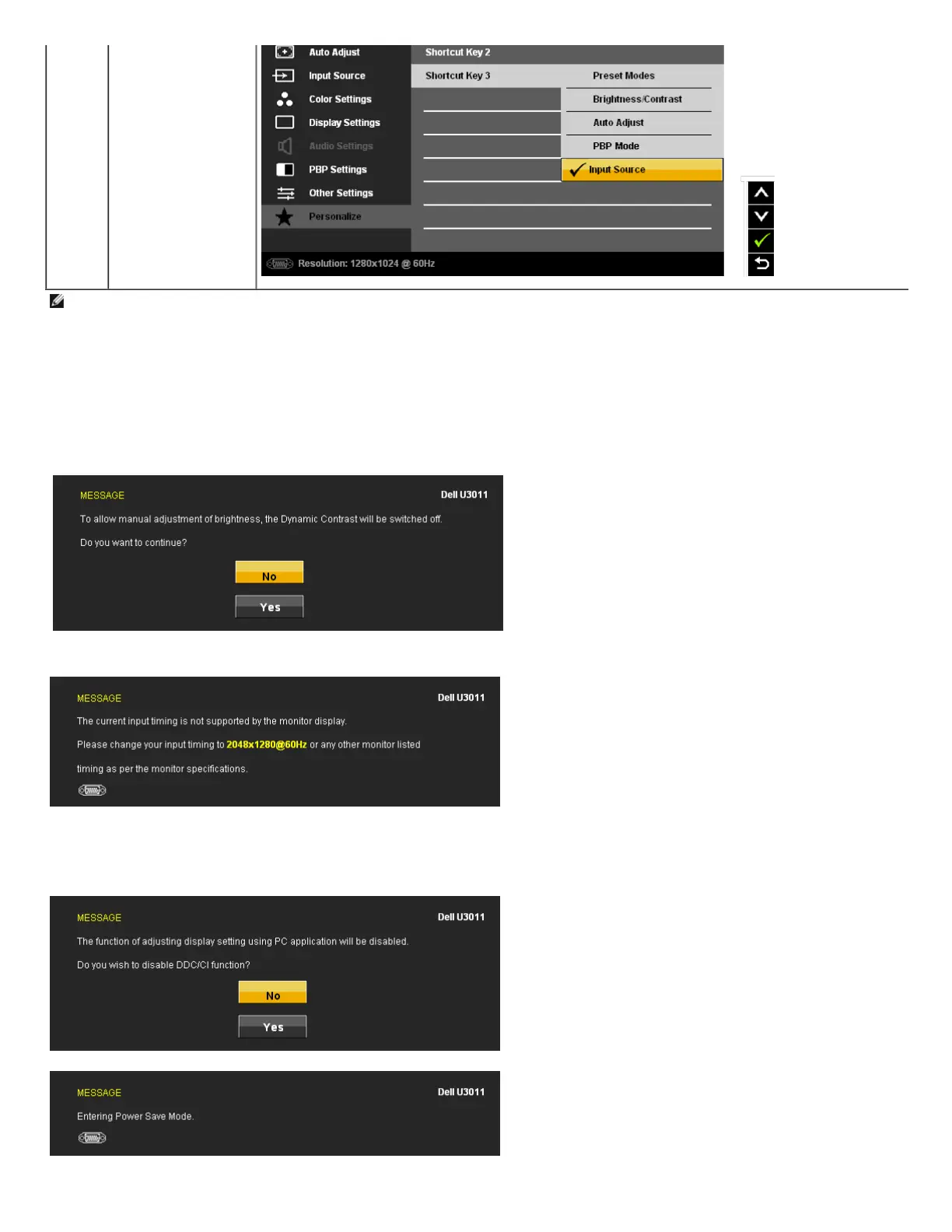

OSD Warning Messages
When Dynamic Contrast Feature is enabled (in these modes: Game, Movie and Multimedia), the manual brightness adjustment is disabled.
When the monitor does not support a particular resolution mode you will see the following message:
This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and
Vertical frequency ranges addressable by this monitor. Recommended mode is 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input sources) / 1920 x
1200 (HDMI input source).
You will see the following message before the DDC/CI function is disabled.
When monitor enters Pow er Save mode, the following message appears:
Activate the computer and wake up the monitor to gain access to the OSD

Dell U3011 Specifications

General

Pixel pitch	0.2505 mm
Aspect ratio	16:10
Display diagonal	30 \
Display resolution	2560 x 1600 pixels
Contrast ratio (dynamic)	100000:1
Display brightness (typical)	370 cd/m²
HDCP	Yes
USB hub version	2.0
DVI-D ports quantity	2
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Input current	2.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	250 W
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	110 W
Product color	Black
Market positioning	Business
Package weight (imperial)	33.76 lbs
Panel mounting interface	100 x 100 mm
Package weight	15300 g
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Non-operating relative humidity (non-condensing)	5 - 90 %

Weight and Dimensions

Depth (without stand)	211.3 mm
Width (without stand)	694.5 mm
Height (without stand)	481.3 mm
Weight (without stand)	9300 g
