5. Follow the procedure in After Working Inside Your computer.
Removing the Fan
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. back cover.
b. battery.
c. WLAN card.

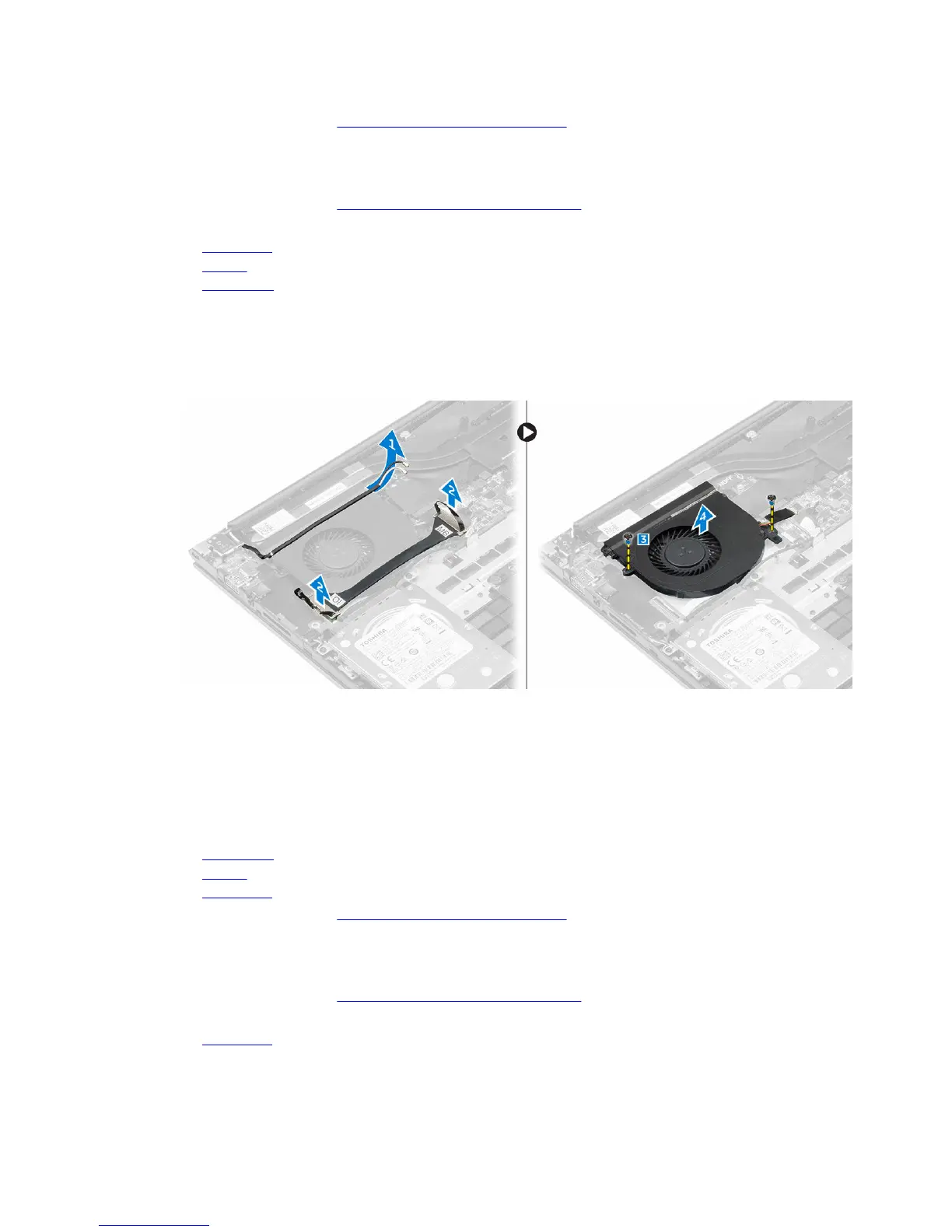

3. To remove the fan:
a. Lift the WLAN connector cables from the fan module. [1]
b. Disconnect the I/O and system board cables from the connectors on the system board. [2].
c. Remove the screws that secure the fan module to the system board. [3]
d. Lift the fan module from the computer.
Installing the Fan
1. Install the fan into the slot on the system board.
2. Tighten the screws to secure the fan module.
3. Connect the I/O and system board cables to the system board connectors.
4. Install the:
a. WLAN card
b. battery.
c. back cover.
5. Follow the procedure in After Working Inside Your computer.
Removing the Display Assembly
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. back cover.
15
