Dell Vostro 14-5459 P68G User Manual

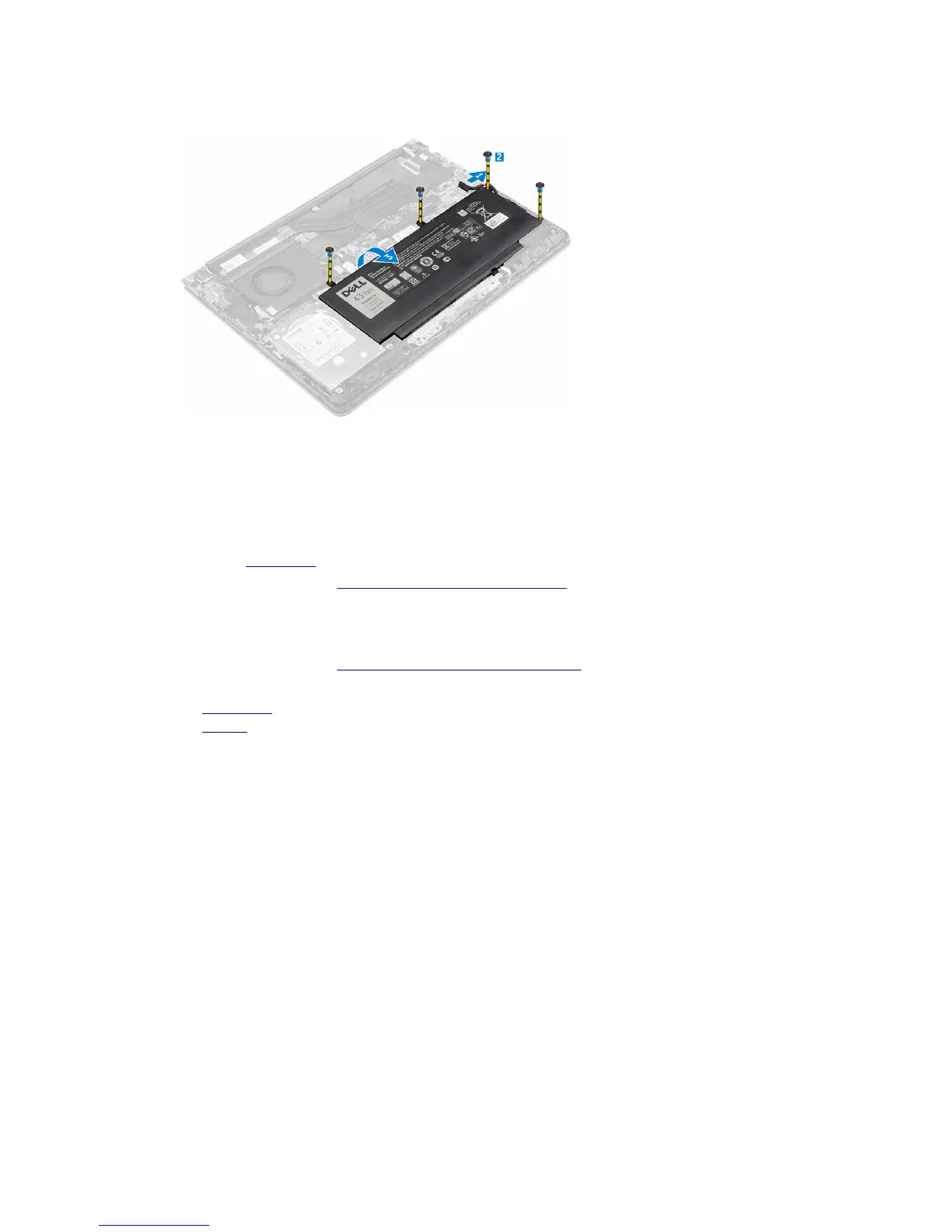

c. Lift and remove the battery from the computer. [3]
Installing the Battery
1. Inset the battery into the slot on the computer.
2. Install the screws that secure the battery to the computer.
3. Connect the battery cable to the connector on the system board.
4. Install the back cover.
5. Follow the procedure in After Working Inside Your computer.
Removing the Hard Drive
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. back cover.
b. battery.
3. Perform the following steps to remove the hard drive:
a. Disconnect the hard drive cable from the connector on the system board. [1]
b. Remove the screws that secure the hard drive to the computer . [2]
c. Lift the hard drive from the computer. [3]
9

Dell Vostro 14-5459 P68G Specifications

General

Processor	Intel Core i5-6200U
Display	1366x768 pixels
RAM	DDR3L
Storage	256GB SSD
Graphics	Intel HD Graphics 520
Operating System	Windows 10 Home
Battery	3-cell
Dimensions	340 x 240 mm
