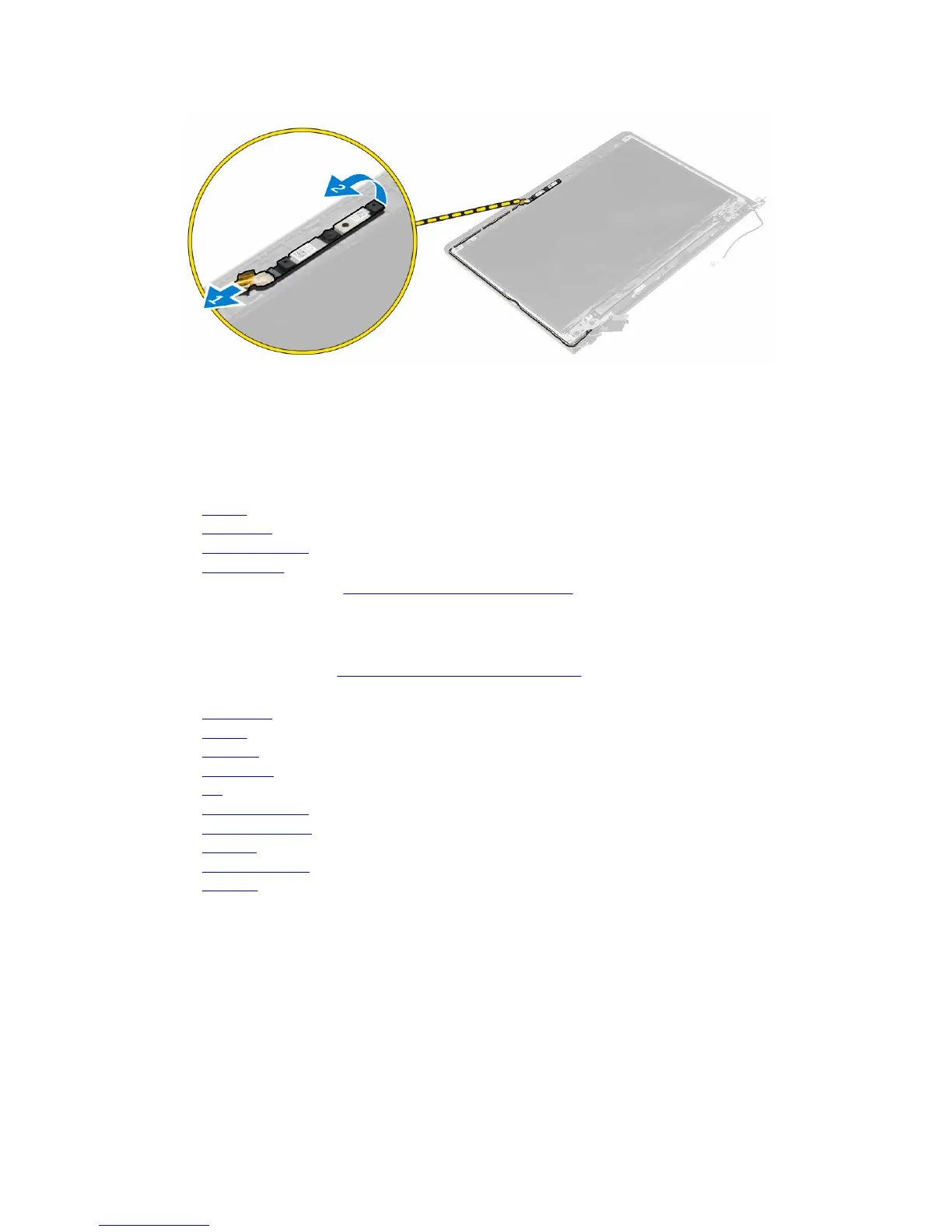

Installing the Camera
1. Align the camera to the display panel .
2. Connect the camera cable to the camera.
3. Install :
a. battery
b. back cover
c. display assembly
d. display bezel
4. Follow the procedures in After Working Inside Your computer.
Removing the System Board
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. back cover.
b. battery.
c. heat sink.
d. WLAN card.
e. fan.
f. display assembly.
g. DC-in connector.
h. IO Panel.
i. memory module.
j. speakers.
3. To remove the system board:
a. Disconnect the display assembly cable from the system board. [1] [2[
b. Remove the screws that secure the system board to the computer chassis. [3]
c. Lift and remove the system board from the computer.
21

Dell Vostro 14-5459 P68G Specifications

General

Processor	Intel Core i5-6200U
Display	1366x768 pixels
RAM	DDR3L
Storage	256GB SSD
Graphics	Intel HD Graphics 520
Operating System	Windows 10 Home
Battery	3-cell
Dimensions	340 x 240 mm
