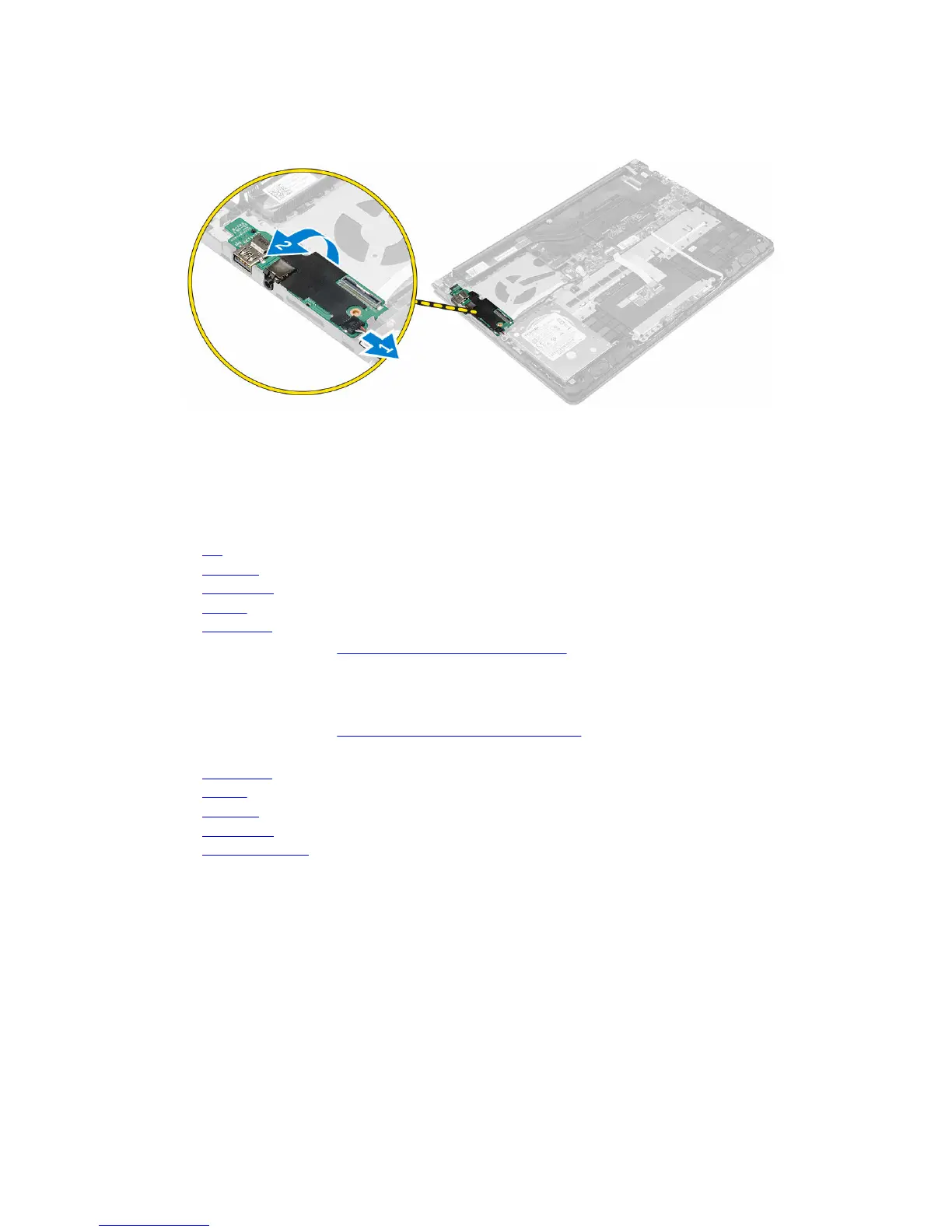

a. Disconnect the I/O panel connector cable from the system board.
b. Lift and remove the I/O panel from the computer.
Installing the I/O Panel
1. Insert the I/O panel into the slot on the computer chassis.
2. Connect the I/O panel cable to the system board.
3. Install the:
a. fan.
b. heat sink.
c. WLAN card.
d. battery.
e. back cover.
4. Follow the procedure in After Working Inside Your computer.
Removing the Power Connector
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. back cover.
b. battery.
c. heat sink.
d. WLAN card.
e. display assembly.
3. To remove the DC-in connector:
a. Disconnect the DC-in connector cable from the system board.
b. Lift the DC-in connector from the computer.
19

Dell Vostro 14-5459 P68G Specifications

General

Processor	Intel Core i5-6200U
Display	1366x768 pixels
RAM	DDR3L
Storage	256GB SSD
Graphics	Intel HD Graphics 520
Operating System	Windows 10 Home
Battery	3-cell
Dimensions	340 x 240 mm
