Delta C1000 User Manual

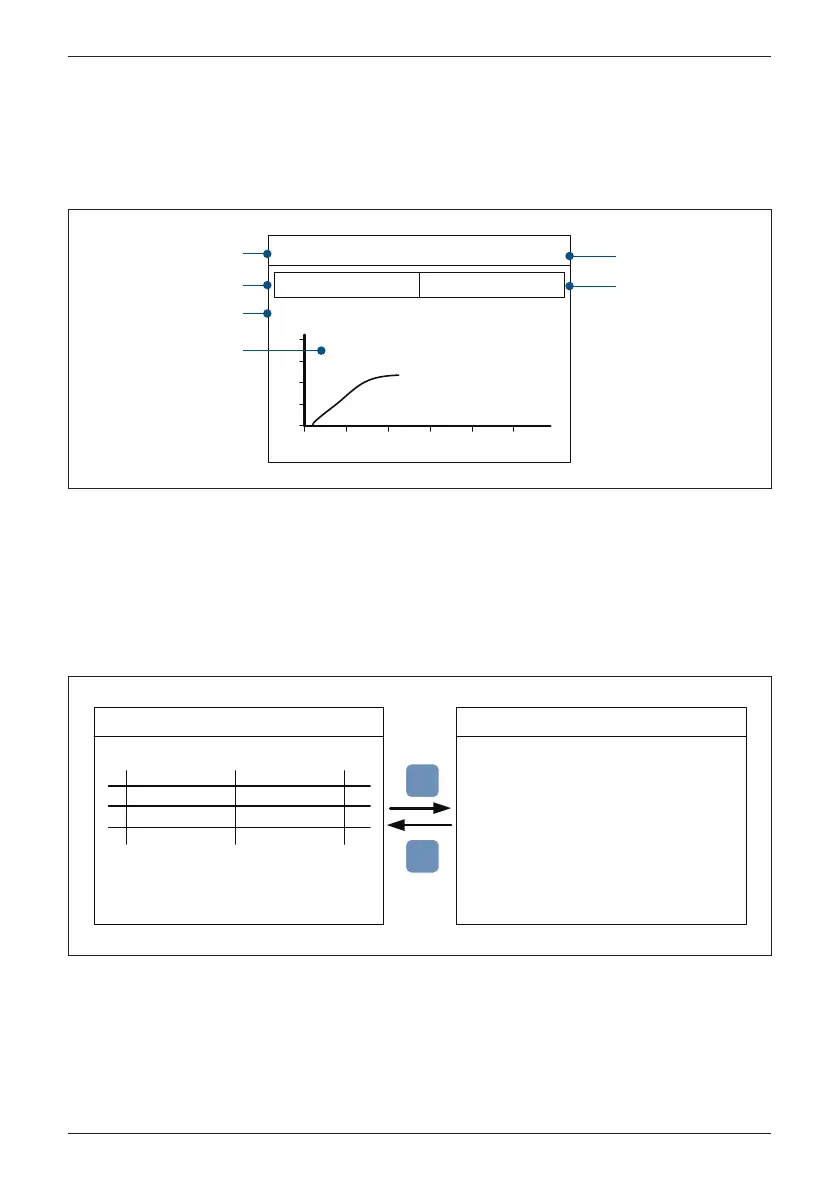

When inverter is operating normally, LCD will show home page as Figure 5-3,
user can get the information about output power, inverter status, E-today,
date and time.
5.3.1 Home Page
Figure 5-3 : Home Page
This page shows the information about input and output power.
5.3.2 Power Meter
Figure 5-4 : Power Meter Page
Input1 Input2
P
U
I
W
V
A
100200
620
161.61
101800
620
164.19
Output
DC Input:
21. Jun 2010 13:50
Power Meter – 1/2 Power Meter – 2/2
AC Output:
Total Power:
21. Jun 2010 13:50
Frequency:
kW
562.8
Volt. UV 350 / VW 349 / WU 351
Curr. U 922.4 / V 939.6 / W 923.5
Power: U 186.3 / V 189.3 / W 187.2
Hz50.00
Vac
A
kW
Input
Power Factor:
Cap 0.97
EXIT
ENT
E-Today: 1175kWh
21. Jun 2010 13:50
Runtime: 8.2Hrs Power: 302.0 kW
On Grid
120
90
60
30
0
4 8 12 16 20 24
Today Energy
Day - Time
Today Runtime
Inverter Status
Today Power Curve
Output Power
49
Turn on PV Inverter
